MA1LAP1600

Active

Amphenol Sine Systems Corp

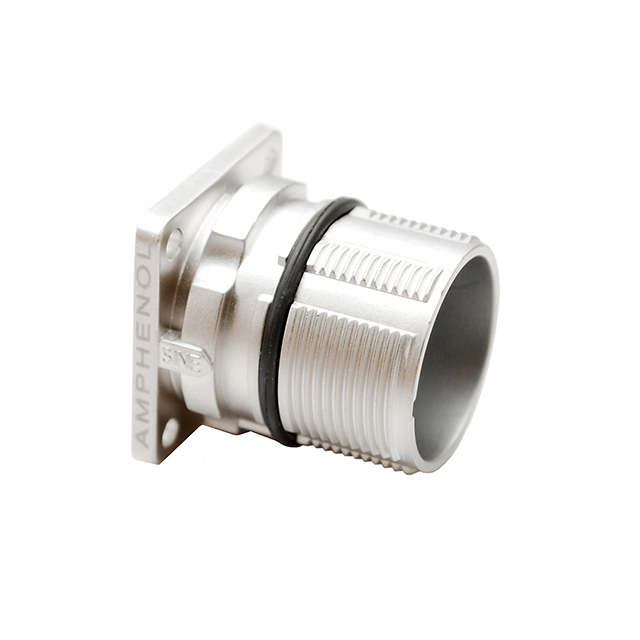

CONN RCPT HSNG F/M 16POS PNL MNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMotionGrade Datasheet

MA1LAP1600

Active

Amphenol Sine Systems Corp

CONN RCPT HSNG F/M 16POS PNL MNT

Deep-Dive with AI

DocumentsMotionGrade Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MA1LAP1600

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	1 mm
Contact Type	Crimp
Housing Color	Silver
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Note	Contacts Not Included
Number of Positions	16
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-20 C
Orientation	P
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M23-16
Shielding	Shielded
Type	For Female Sockets or Male Pins

MA1LAP Series

Part	Connector Type	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Shell Size - Insert	Shielding	Primary Material	Shell Finish	Color	Ingress Protection	Orientation	Mounting Feature	Contact Finish - Mating	Shell Material	Current Rating (Amps)	Voltage Rating	Housing Color	Contact Size	Material Flammability Rating	Contact Shape	Type	Contact Type	Number of Positions	Insert Material	Note	Fastening Type	Contact Material	Applications
Amphenol Sine Systems Corp MA1LAP1200-KIT	Male Pins Receptacle	12	-20 C	130 °C	Crimp	M23-12	Shielded	Metal	Nickel	Silver	IP67 - Dust Tight Waterproof	P	Flange	Gold	Zinc Die Cast	10 A	160 V
Amphenol Sine Systems Corp MA1LAP1700-KIT	Male Pins Receptacle		-20 C	130 °C	Crimp	M23-17	Shielded	Metal	Nickel	Silver	IP67 - Dust Tight Waterproof	P	Flange	Gold	Zinc Die Cast	9 A	125 VAC
Amphenol Sine Systems Corp MA1LAP1600	Receptacle Housing		-20 C	130 °C		M23-16	Shielded		Nickel		IP67 - Dust Tight Waterproof	P	Flange		Zinc Die Cast			Silver	1 mm	UL94 V-0	Circular	For Female Sockets or Male Pins	Crimp	16	Polyamide (PA66) Nylon 6/6	Contacts Not Included
Amphenol Sine Systems Corp MA1LAP1700	Receptacle Housing		-20 C	130 °C		M23-17	Shielded		Nickel		IP67 - Dust Tight Waterproof	P	Flange		Zinc Die Cast			Silver	1 mm	UL94 V-0	Circular	For Female Sockets or Male Pins	Crimp		Polyamide (PA66) Nylon 6/6	Contacts Not Included
Amphenol Sine Systems Corp MA1LAP1200S-KIT	Receptacle Female Sockets	12	-20 C	130 °C	Crimp	M23-12	Shielded	Metal	Nickel	Silver	IP67 - Dust Tight Waterproof	P	Flange	Gold	Zinc Die Cast	9 A	125 VAC
Amphenol Sine Systems Corp MA1LAP1600S-KIT	Receptacle Female Sockets		-20 C	130 °C	Crimp	M23-16	Shielded	Metal	Nickel	Silver	IP67 - Dust Tight Waterproof	P	Flange	Gold	Zinc Die Cast	9 A	125 VAC			UL94 V-0				16	Polyamide (PA66) Nylon 6/6		Push-Twist	Copper Alloy	Communication Systems Industrial Medical
