TB2-2D-DC-1

Active

Switch Components

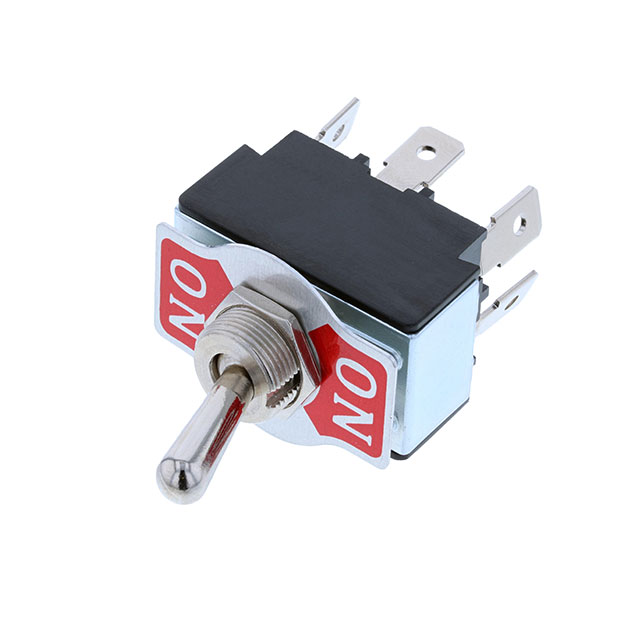

SWITCH TOGGLE DPDT 20A 12V

Search across all available documentation for this part.

Active

Switch Components

SWITCH TOGGLE DPDT 20A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	TB2-2D-DC-1

Actuator Length [x]	17.7 mm
Actuator Type	Standard Round
Bushing Thread	M12
Bushing Thread	0.75
Circuit	DPDT
Current Rating (Amps)	20 A
Electrical Life	6000 Cycles
Illumination	Non-Illuminated
Panel Cutout Dimensions [diameter]	12.2 mm
Switch Function	On-On
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - DC	12 V

Part	Illumination	Current Rating (Amps)	Actuator Type	Bushing Thread	Bushing Thread	Switch Function	Circuit	Termination Style	Panel Cutout Dimensions [diameter]	Actuator Length [x]	Voltage Rating - DC	Electrical Life
Switch Components TB2-2D-DC-1	Non-Illuminated	20 A	Standard Round	M12	0.75	On-On	DPDT	Quick Connect - 0.250" (6.3mm)	12.2 mm	17.7 mm	12 V	6000 Cycles
Switch Components TB2-2D-DC-4	Non-Illuminated	20 A	Standard Round	M12	0.75	On-On	DPDT	Screw Terminal	12.2 mm	17.7 mm	12 V	6000 Cycles

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.58

General part information

Toggle Switch DPDT Panel Mount
