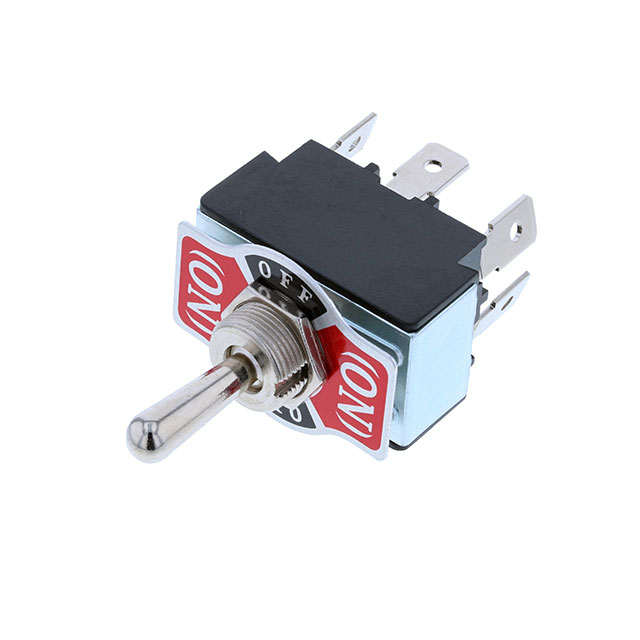

TB2-2G-DC-1
ActiveSwitch Components
SWITCH TOGGLE DPDT 20A 12V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TB2-2G-DC-1
ActiveSwitch Components
SWITCH TOGGLE DPDT 20A 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TB2-2G-DC-1 |
|---|---|
| Actuator Length [x] | 18.4 mm |
| Actuator Type | Standard Round |
| Bushing Thread | M12 |
| Bushing Thread | 0.75 |
| Circuit | DPDT |
| Current Rating (Amps) | 20 A |
| Electrical Life | 6000 Cycles |
| Illumination | Non-Illuminated |
| Panel Cutout Dimensions [diameter] | 12.2 mm |
| Switch Function | Mom-Off-Mom |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - DC | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.10 | |
| 10 | $ 6.76 | |||
| 25 | $ 6.60 | |||
| 50 | $ 6.45 | |||
| 100 | $ 6.08 | |||
| 250 | $ 5.59 | |||
| 500 | $ 4.24 | |||
| 1000 | $ 3.88 | |||
Description
General part information
TB2-2G Series
Toggle Switch DPDT Panel Mount
