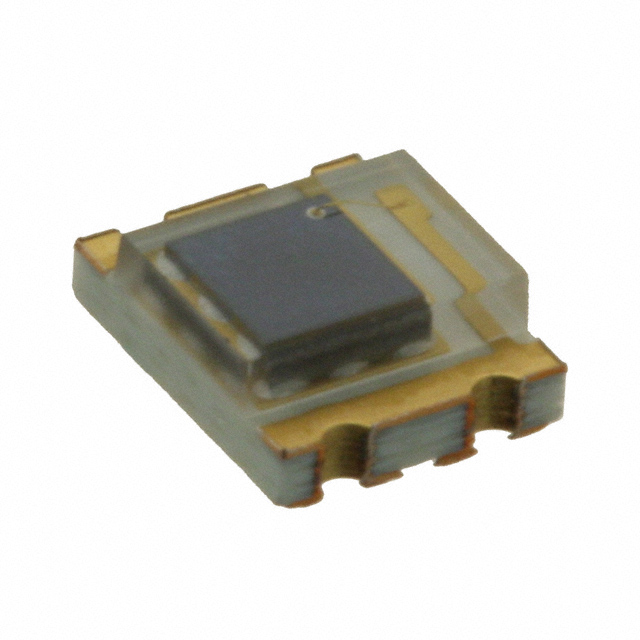

PD15-22C/TR8
ActiveEverlight Electronics Co Ltd
SENSOR PHOTODIODE 940NM 4SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PD15-22C/TR8
ActiveEverlight Electronics Co Ltd
SENSOR PHOTODIODE 940NM 4SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PD15-22C/TR8 |
|---|---|
| Current - Dark (Typ) | 10 nA |
| Diode Type | PIN |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Package / Case | 4-SMD, No Lead |
| Response Time | 10 ns |
| Spectral Range [Max] [x] | 1100 nm |
| Spectral Range [Min] [x] | 400 nm |
| Voltage - DC Reverse (Vr) (Max) [Max] | 32 V |
| Wavelength | 940 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.71 | |
| 10 | $ 0.42 | |||
| 100 | $ 0.28 | |||
| 500 | $ 0.22 | |||
| 1000 | $ 0.20 | |||
| Digi-Reel® | 1 | $ 0.71 | ||
| 10 | $ 0.42 | |||
| 100 | $ 0.28 | |||
| 500 | $ 0.22 | |||
| 1000 | $ 0.20 | |||
| Tape & Reel (TR) | 3000 | $ 0.18 | ||
| 6000 | $ 0.17 | |||
| 9000 | $ 0.16 | |||
| 15000 | $ 0.16 | |||
| 21000 | $ 0.16 | |||
| 30000 | $ 0.15 | |||
Description
General part information
PD15-22 Series
Photodiode 940nm 10ns 4-SMD, No Lead
