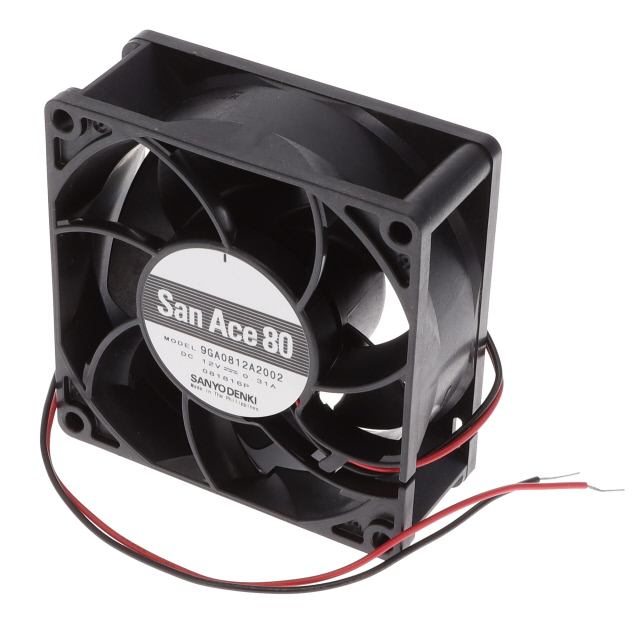

9GA0812A2002

Active

Sanyo Denki America Inc.

FAN AXIAL 80X32MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHandling Instructions for Fan Motors Numbering System DC Fan +1

9GA0812A2002

Active

Sanyo Denki America Inc.

FAN AXIAL 80X32MM 12VDC WIRE

Deep-Dive with AI

DocumentsHandling Instructions for Fan Motors Numbering System DC Fan +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	9GA0812A2002

Bearing Type	Ball
Fan Type	Tubeaxial
Material - Blade	Plastic
Material - Frame	Plastic
Power (Watts)	3.72 W
Size / Dimension [x]	80 mm
Size / Dimension [y]	80 mm
Termination	2 Wire Leads
Voltage - Rated	12 VDC
Width [y]	32 mm

9GA0812 Series

Part	Width [x]	Voltage Range [Max]	Voltage Range [Min]	Air Flow	Air Flow	Fan Type	Bearing Type	Current Rating (Amps)	Material - Blade	Voltage - Rated	Static Pressure	Static Pressure	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Noise	RPM	Lifetime @ Temp.	Termination	Size / Dimension [y]	Size / Dimension [x]	Material - Frame	Approval Agency	Weight	Weight	Width [y]	Features	Power (Watts)	Lifetime @ Temp.
Sanyo Denki America Inc. 9GA0812G4002	25.2 mm	13.2 VDC	10.8 VDC	67.4 CFM	1.89 m³/min	Tubeaxial	Ball	480 mA	Plastic	12 VDC	0.6 in H2O	149.5 Pa	-20 °C	70 °C	-20 C	70 °C	45 dB(A)	6800 RPM	Varies Based on Temperature	2 Wire Leads	80 mm	80 mm	Plastic	CSA TUV UL	0.243 lb	110.22 g
Sanyo Denki America Inc. 9GA0812L2001						Tubeaxial	Ball		Plastic	12 VDC										3 Wire Leads	80 mm	80 mm	Plastic				32 mm	Locked Rotor Protection Speed Sensor (Tach)
Sanyo Denki America Inc. 9GA0812P1H611		13.2 VDC	10.8 VDC	79.4 CFM	2.22 m³/min	Tubeaxial	Ball	600 mA	Plastic	12 VDC	1.53 in H2O	381.1 Pa	-20 °C	70 °C	-20 C	70 °C	55 dB	8250 RPM	Varies Based on Temperature	4 Wire Leads	80 mm	80 mm	Plastic	CSA TUV UL	0.353 lb	160.12 g	38 mm	Locked Rotor Protection PWM Control Speed Sensor (Tach)	7.2 W
Sanyo Denki America Inc. 9GA0812P1G61		13.2 VDC	10.8 VDC	100.6 CFM	2.82 m³/min	Tubeaxial	Ball	1.2 A	Plastic	12 VDC	1.93 in H2O	480.8 Pa	-20 °C	70 °C	-20 C	70 °C	60 dB(A)	10500 RPM	Varies Based on Temperature	4 Wire Leads	80 mm	80 mm	Plastic	CSA TUV UL	0.353 lb	160.12 g	38 mm	Locked Rotor Protection PWM Control Speed Sensor (Tach)	14.4 W
Sanyo Denki America Inc. 9GA0812A2002						Tubeaxial	Ball		Plastic	12 VDC										2 Wire Leads	80 mm	80 mm	Plastic				32 mm		3.72 W
Sanyo Denki America Inc. 9GA0812P4J001		12.6 VDC	10.2 VDC	73 CFM	2.04 m³/min	Tubeaxial	Ball	600 mA	Plastic	12 VDC	0.7 in H2O	174.4 Pa	-20 °C	70 °C	-20 C	70 °C	48 dB	7400 RPM	Varies Based on Temperature	4 Wire Leads	80 mm	80 mm	Plastic	CSA TUV UL	0.243 lb	110.22 g	25 mm	Locked Rotor Protection PWM Control Speed Sensor (Tach)	7.2 W
Sanyo Denki America Inc. 9GA0812P1S611		13.2 VDC	10.8 VDC	91.8 CFM	2.57 m³/min	Tubeaxial	Ball	0.94 A	Plastic	12 VDC	1.93 in H2O	480.8 Pa	-20 °C	70 °C	-20 C	70 °C	59 dB(A)	9550 RPM	Varies Based on Temperature	4 Wire Leads	80 mm	80 mm	Plastic	CSA TUV UL	0.353 lb	160.12 g	38 mm	Locked Rotor Protection PWM Control Speed Sensor (Tach)	11.28 W
Sanyo Denki America Inc. 9GA0812H7001	15 mm			31.4 CFM	0.879 m³/min	Tubeaxial	Ball	0.09 A	Plastic	12 VDC	0.131 in H2O	32.6 Pa	-20 °C	70 °C	-20 C	70 °C	29 dB(A)	3800 RPM		3 Wire Leads	80 mm	80 mm	Plastic	cURus TUV	0.143 lb	64.86 g		Speed Sensor (Tach)	1.08 W	40000 Hrs
Sanyo Denki America Inc. 9GA0812G40011	25.2 mm	13.2 VDC	10.8 VDC	67.4 CFM	1.89 m³/min	Tubeaxial	Ball	480 mA	Plastic	12 VDC	0.6 in H2O	149.5 Pa	-20 °C	70 °C	-20 C	70 °C	45 dB(A)	6800 RPM	Varies Based on Temperature	3 Wire Leads	80 mm	80 mm	Plastic	CSA TUV UL	0.243 lb	110.22 g		Locked Rotor Protection Speed Sensor (Tach)
Sanyo Denki America Inc. 9GA0812P7S001	15 mm	13.8 VDC	10.2 VDC	41.7 CFM	1.17 m³/min	Tubeaxial	Ball	0.17 A	Plastic	12 VDC	0.226 in H2O	56.4 Pa	-20 °C	70 °C	-20 C	70 °C	37 dB	5000 RPM		4 Wire Leads	80 mm	80 mm	Plastic	CSA TUV UL	0.143 lb	64.86 g		PWM Control Speed Sensor (Tach)		40000 Hrs

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 17.78
