Q-710110003009I

Active

Amphenol Custom Cable

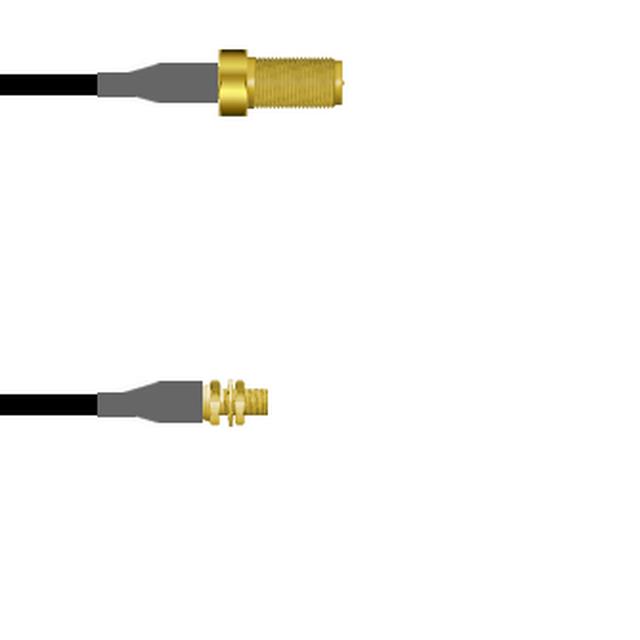

CBL ASSY RPSMA-MCX JACK-SCKT 9"

Deep-Dive with AI

Search across all available documentation for this part.

Q-710110003009I

Active

Amphenol Custom Cable

CBL ASSY RPSMA-MCX JACK-SCKT 9"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-710110003009I

1st Connector	RP-SMA Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	MCX Socket
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Impedance	50 Ohms
Cable Type	RG-174
Color	Black
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	1 GHz
Length	9 "
Length	228.6 mm
Overall Impedance	50 Ohms
Style	RP-SMA to MCX

Q-710110 Series

Part	2nd Contact Gender	Style	Overall Impedance	1st Contact Gender	1st Connector Mounting Type	2nd Connector Mounting Type	Features	Connector Impedance	2nd Connector	Frequency - Max [Max]	2nd Connector Mounting Feature	Color	Cable Type	Cable Impedance	Length	Length	1st Connector	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-710110003009I	Female	RP-SMA to MCX	50 Ohms	Male	Free Hanging (In-Line)	Panel Mount	Shielded	50 Ohms	MCX Socket	1 GHz	Bulkhead - Front Side Nut	Black	RG-174	50 Ohms	9 "	228.6 mm	RP-SMA Jack
Amphenol Custom Cable Q-7101100030.5M	Female	RP-SMA to MCX	50 Ohms	Male	Free Hanging (In-Line)	Panel Mount	Shielded	50 Ohms	MCX Socket	1 GHz	Bulkhead - Front Side Nut	Black	RG-174	50 Ohms	19.69 "	50 cm	RP-SMA Jack
Amphenol Custom Cable Q-710110003048I	Female	RP-SMA to MCX	50 Ohms	Male	Free Hanging (In-Line)	Panel Mount	Shielded	50 Ohms	MCX Socket	1 GHz	Bulkhead - Front Side Nut	Black	RG-174	50 Ohms	48 in	1200 mm	RP-SMA Jack	4 ft
Amphenol Custom Cable Q-710110003018I	Female	RP-SMA to MCX	50 Ohms	Male	Free Hanging (In-Line)	Panel Mount	Shielded	50 Ohms	MCX Socket	1 GHz	Bulkhead - Front Side Nut	Black	RG-174	50 Ohms			RP-SMA Jack		457.2 mm	457.2 mm
Amphenol Custom Cable Q-710110003036I	Female	RP-SMA to MCX	50 Ohms	Male	Free Hanging (In-Line)	Panel Mount	Shielded	50 Ohms	MCX Socket	1 GHz	Bulkhead - Front Side Nut	Black	RG-174	50 Ohms	36 in	91.44 cm	RP-SMA Jack
Amphenol Custom Cable Q-7101100032.5M	Female	RP-SMA to MCX	50 Ohms	Male	Free Hanging (In-Line)	Panel Mount	Shielded	50 Ohms	MCX Socket	1 GHz	Bulkhead - Front Side Nut	Black	RG-174	50 Ohms	98.4 in	2.5 m	RP-SMA Jack	8.2 '
Amphenol Custom Cable Q-710110003006I	Female	RP-SMA to MCX	50 Ohms	Male	Free Hanging (In-Line)	Panel Mount	Shielded	50 Ohms	MCX Socket	1 GHz	Bulkhead - Front Side Nut	Black	RG-174	50 Ohms	6 in	152.4 mm	RP-SMA Jack
Amphenol Custom Cable Q-710110003060I	Female	RP-SMA to MCX	50 Ohms	Male	Free Hanging (In-Line)	Panel Mount	Shielded	50 Ohms	MCX Socket	1 GHz	Bulkhead - Front Side Nut	Black	RG-174	50 Ohms	5 '	1.5 m	RP-SMA Jack	5 ft
Amphenol Custom Cable Q-710110003001M	Female	RP-SMA to MCX	50 Ohms	Male	Free Hanging (In-Line)	Panel Mount	Shielded	50 Ohms	MCX Socket	1 GHz	Bulkhead - Front Side Nut	Black	RG-174	50 Ohms	39.4 in	1 m	RP-SMA Jack	3.3 ft
Amphenol Custom Cable Q-7101100031.5M	Female	RP-SMA to MCX	50 Ohms	Male	Free Hanging (In-Line)	Panel Mount	Shielded	50 Ohms	MCX Socket	1 GHz	Bulkhead - Front Side Nut	Black	RG-174	50 Ohms	59.1 in	1.5 m	RP-SMA Jack	4.9 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 67.88
		25	$ 66.57
		50	$ 65.26
		100	$ 63.94
		250	$ 62.63

Description

General part information

Q-710110 Series

Cable Assembly Coaxial RP-SMA to MCX RG-174 9.000" (228.60mm)

Documents

Technical documentation and resources

No documents available
