NTPA7160LB1A0

Obsolete

Murata Power Solutions Inc.

ICL 16 OHM 15% 1.2A 7MM

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

ICL 16 OHM 15% 1.2A 7MM

Technical Specifications

Parameters and characteristics for this part

Part	R @ 25°C	Current - Steady State Max	Tolerance	Diameter [diameter]	Diameter [diameter]	Lead Spacing	Lead Spacing	Package / Case [diameter]	Package / Case	Resistance Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Resistance in Ohms @ 25°C
Murata Power Solutions Inc. NTPA7160LBMB0	16 Ohms	1.2 A	15 %	0.276 in	7 mm	5 mm	0.197 in
Murata Power Solutions Inc. NTPA7160LB1A0	16 Ohms	1.2 A	15 %	0.276 in	7 mm	5 mm	0.197 in
Murata Power Solutions Inc. NTPA74R0LBMB0	4 Ohms	2.3 A	15 %	0.276 in	7 mm	5 mm	0.197 in
Murata Power Solutions Inc. NTPA74R0LB1A0	4 Ohms	2.3 A	15 %	0.276 in	7 mm	5 mm	0.197 in
Murata Power Solutions Inc. NTPA7100LBMB0								7 mm	Disc	15 %	160 °C	-20 C	Through Hole	10 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

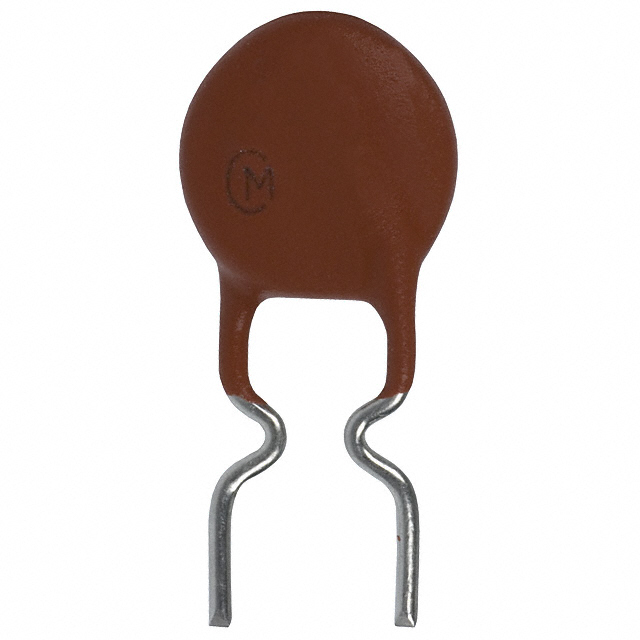

Inrush Current Limiter 16 Ohms ±15% 1.2 A 0.276" (7.00mm)
