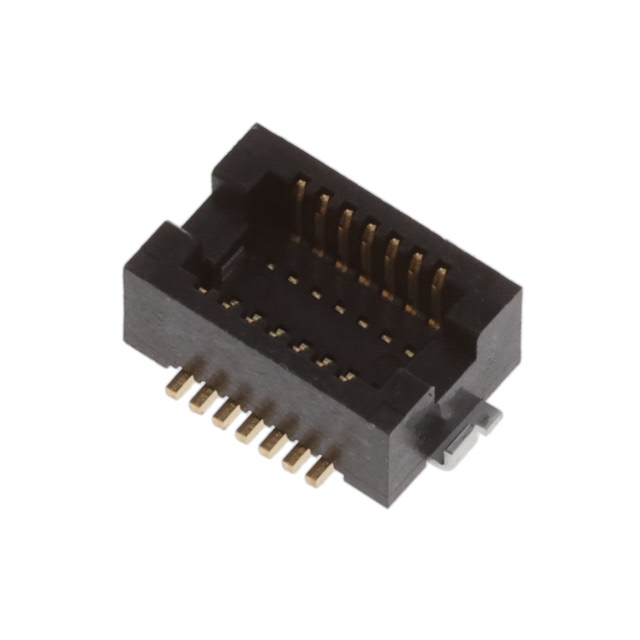

DF12NB(3.0)-14DP-0.5V(51)

Active

Hirose Electric USA, Inc.

CONN HDR 14POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DF12NB(3.0)-14DP-0.5V(51)

Active

Hirose Electric USA, Inc.

CONN HDR 14POS SMD GOLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF12NB(3.0)-14DP-0.5V(51)

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	8 çin
Contact Finish Thickness	0.203 çm
Features	Solder Retention
Height Above Board [z]	0.091 in
Height Above Board [z]	2.3 mm
Mated Stacking Heights	3 mm
Mounting Type	Surface Mount
Number of Positions	14
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

DF12NB(3.0) Series

Part	Contact Finish	Pitch [x]	Pitch [x]	Features	Number of Rows	Connector Type	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Mated Stacking Heights	Height Above Board [z]	Height Above Board [z]	Mounting Type	Height Above Board	Height Above Board
Hirose Electric USA, Inc. DF12NB(3.0)-14DP-0.5V(51)	Gold	0.5 mm	0.02 in	Solder Retention	2	Header Outer Shroud Contacts	14	8 çin	0.203 çm	3 mm	0.091 in	2.3 mm	Surface Mount
Hirose Electric USA, Inc. DF12NB(3.0)-10DS-0.5V(51)	Gold	0.5 mm	0.02 in	Solder Retention	2	Center Strip Contacts Receptacle	10	8 çin	0.203 çm	3 mm			Surface Mount	0.087 in	2.2 mm
Hirose Electric USA, Inc. DF12NB(3.0)-20DS-0.5V(51)	Gold	0.5 mm	0.02 in	Solder Retention	2	Center Strip Contacts Receptacle	20	8 çin	0.203 çm	3 mm			Surface Mount	0.087 in	2.2 mm
Hirose Electric USA, Inc. DF12NB(3.0)-32DP-0.5V(51)	Gold	0.5 mm	0.02 in	Solder Retention	2	Header Outer Shroud Contacts		8 çin	0.203 çm	3 mm	0.091 in	2.3 mm	Surface Mount
Hirose Electric USA, Inc. DF12NB(3.0)-10DP-0.5V(51)	Gold	0.5 mm	0.02 in	Solder Retention	2	Header Outer Shroud Contacts	10	8 çin	0.203 çm	3 mm	0.091 in	2.3 mm	Surface Mount
Hirose Electric USA, Inc. DF12NB(3.0)-40DS-0.5V(51)	Gold	0.5 mm	0.02 in	Solder Retention	2	Center Strip Contacts Receptacle	40	8 çin	0.203 çm	3 mm			Surface Mount	0.087 in	2.2 mm
Hirose Electric USA, Inc. DF12NB(3.0)-30DS-0.5V(51)	Gold	0.5 mm	0.02 in	Solder Retention	2	Center Strip Contacts Receptacle	30	8 çin	0.203 çm	3 mm			Surface Mount	0.087 in	2.2 mm
Hirose Electric USA, Inc. DF12NB(3.0)-80DP-0.5V(51)	Gold	0.5 mm	0.02 in	Solder Retention	2	Header Outer Shroud Contacts	80	8 çin	0.203 çm	3 mm	0.091 in	2.3 mm	Surface Mount
Hirose Electric USA, Inc. DF12NB(3.0)-60DS-0.5V(51)	Gold	0.5 mm	0.02 in	Solder Retention	2	Center Strip Contacts Receptacle	60	8 çin	0.203 çm	3 mm			Surface Mount	0.087 in	2.2 mm
Hirose Electric USA, Inc. DF12NB(3.0)-60DP-0.5V(51)	Gold	0.5 mm	0.02 in	Solder Retention	2	Header Outer Shroud Contacts	60	8 çin	0.203 çm	3 mm	0.091 in	2.3 mm	Surface Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.78
		10	$ 0.68
		25	$ 0.62
		50	$ 0.58
		100	$ 0.56
		250	$ 0.51
		500	$ 0.48
	Digi-Reel®	1	$ 0.78
		10	$ 0.68
		25	$ 0.62
		50	$ 0.58
		100	$ 0.56
		250	$ 0.51
		500	$ 0.48
	Tape & Reel (TR)	1000	$ 0.40
		2000	$ 0.39
		3000	$ 0.36
		5000	$ 0.35
		10000	$ 0.33
		25000	$ 0.32

Description

General part information

DF12NB(3.0) Series

14 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
