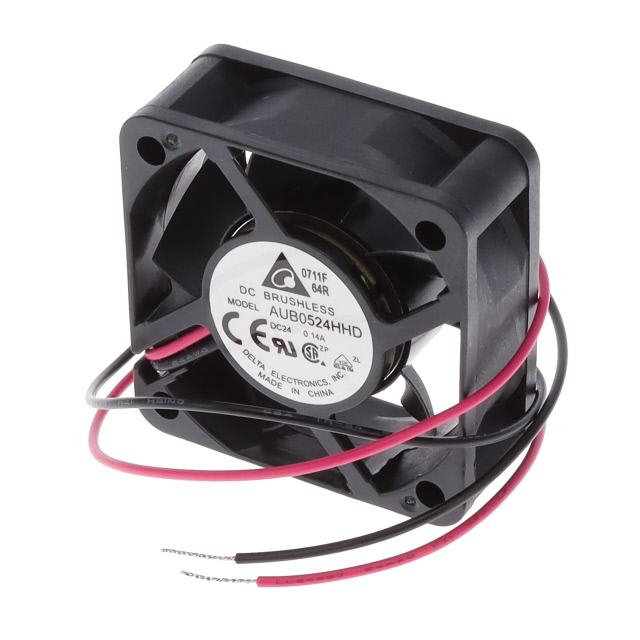

AUB0524HHD

Active

Delta Electronics

DC AXIAL FAN, 24 V, SQUARE, 50 MM, 20 MM, SLEEVE BEARING, 18.3 CFM

Search across all available documentation for this part.

Active

Delta Electronics

DC AXIAL FAN, 24 V, SQUARE, 50 MM, 20 MM, SLEEVE BEARING, 18.3 CFM

Technical Specifications

Parameters and characteristics for this part

Part	Current Rating (Amps)	Fan Type	Size / Dimension [z]	Size / Dimension [x]	Static Pressure	Static Pressure	Weight	Weight	Power (Watts)	Bearing Type	Material - Blade	Material - Frame	Voltage Range [Max]	Voltage Range [Min]	Air Flow	Air Flow	RPM	Approval Agency	Noise	Width [y]	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Termination	Lifetime @ Temp.
Delta Electronics AUB0524HHD	0.09 A	Tubeaxial	50 mm	50 mm	0.254 in H2O	63.3 Pa	0.071 lb	32.21 g	2.16 W	Superflo	Plastic	Plastic	27.6 VDC	14 VDC	18.3 CFM	0.512 m³/min	6400 RPM	CE CSA UL VDE	37 dB	20 mm	24 VDC	-10 °C	-10 °C	60 °C	60 °C	2 Wire Leads	50000 Hrs
Delta Electronics AUB0524VHD	100 mA	Tubeaxial	50 mm	50 mm	0.303 in H2O	75.5 Pa	0.085 lb	38.56 g	2.4 W	Superflo	Plastic	Plastic	27.6 VDC	14 VDC	20.3 CFM	0.568 mł/min	7000 RPM	CE CSA UL VDE	40.5 dB(A)	20 mm	24 VDC	-10 °C	-10 °C	60 °C	60 °C	2 Wire Leads	50000 Hrs

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 24VDC Square - 50mm L x 50mm H Superflo 18.3 CFM (0.512m³/min) 2 Wire Leads
