2982139
ActivePhoenix Contact

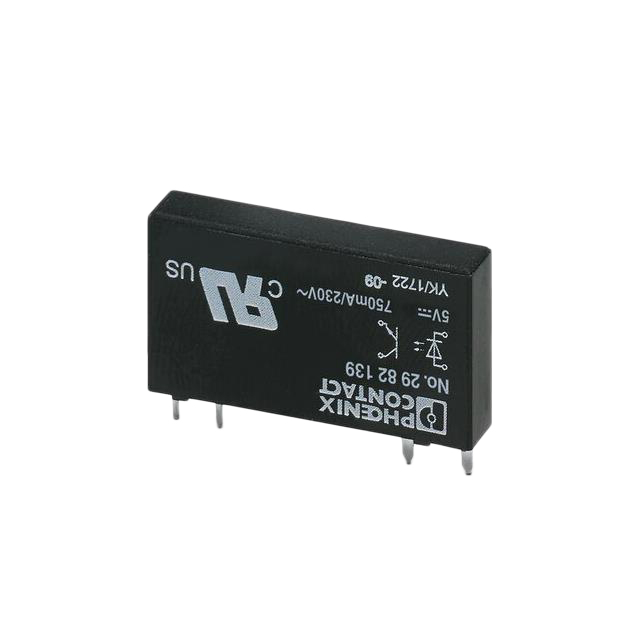

SSR RELAY SPST-NO 750MA 24-253V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2982139
ActivePhoenix Contact
SSR RELAY SPST-NO 750MA 24-253V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2982139 |
|---|---|
| Approval Agency | cURus, GL |
| Load Current | 0.75 A |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -25 °C |
| Output Type | AC |
| Package / Case | 4-SIP |
| Termination Style | PC Pin |
| Voltage - Input | 5 VDC |
| Voltage - Load [Max] | 253 V |
| Voltage - Load [Min] | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 10 | $ 44.75 | |
Description
General part information
298213 Series
Solid State SPST-NO (1 Form A) 4-SIP
Documents
Technical documentation and resources
