13-000011

Active

Amphenol CONEC

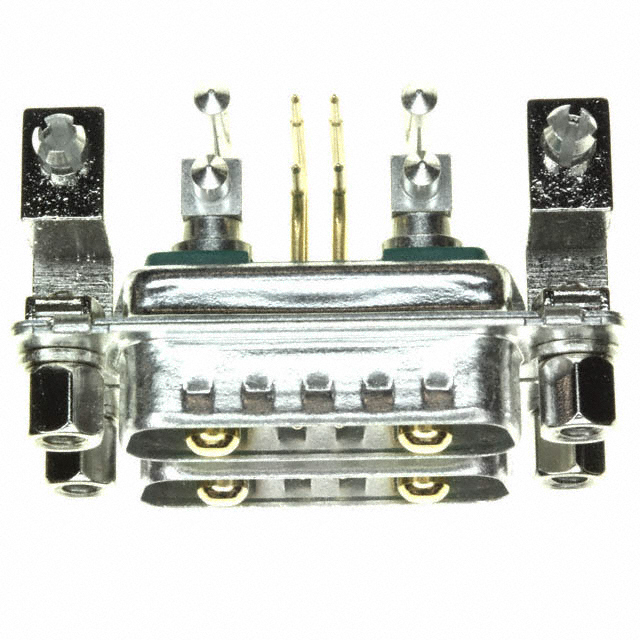

CONN D-SUB PLUG 7X2POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

13-000011

Active

Amphenol CONEC

CONN D-SUB PLUG 7X2POS R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	13-000011

Backset Spacing	10.03 mm
Backset Spacing	0.395 "
Color	Green
Connector Style	Combo - Stacked, D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	24 A, 7.5 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Grounding Indents, Mounting Brackets, Board Lock
Flange Feature	Female Screwlock (4-40), Mating Side
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions	2, 5
Number of Positions	x 2
Number of Rows	2
Shell Size, Connector Layout	2 (DA, A) - 7W2
Termination	Solder
Voltage Rating	250 VDC

13-0000 Series

Part	Mounting Type	Dielectric Material	Contact Material	Contact Type	Backset Spacing	Backset Spacing	Connector Type	Connector Style	Color	Number of Positions [custom]	Number of Positions [custom]	Contact Finish	Material Flammability Rating	Features	Flange Feature	Current Rating (Amps)	Contact Finish Thickness	Contact Finish Thickness	Voltage Rating	Shell Size, Connector Layout	Termination	Number of Rows	Number of Positions	Number of Positions
Amphenol CONEC 13-000091	Board Edge Right Angle Through Hole	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	Signal and Power	0.458 in	11.63 mm	Male Pins Plug	Combo D-Sub	Green	7	2	Gold	UL94 V-0	Board Lock Grounding Indents Mounting Brackets	Female Screwlock (4-40) Mating Side	7.5 A 40 A	0.76 Ám	30 Áin	250 VDC	2 (DA A) - 7W2	Solder	2
Amphenol CONEC 13-000011	Board Edge Right Angle Through Hole	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	Signal and Power	0.395 "	10.03 mm	Male Pins Plug	Combo - Stacked D-Sub	Green			Gold	UL94 V-0	Board Lock Grounding Indents Mounting Brackets	Female Screwlock (4-40) Mating Side	7.5 A 24 A	0.76 Ám	30 Áin	250 VDC	2 (DA A) - 7W2	Solder	2	2 5	x 2
Amphenol CONEC 13-000071	Board Edge Right Angle Surface Mount	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	Signal and Power	0.45 in	11.43 mm	Male Pins Plug	Combo D-Sub	Green	7	2	Gold	UL94 V-0	Board Lock Grounding Indents Mounting Brackets	Female Screwlock (4-40) Mating Side	5 A 35 A	0.76 Ám	30 Áin	250 VDC	2 (DA A) - 7W2	Solder	2
Amphenol CONEC 13-000021	Board Edge Right Angle Through Hole	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	Signal and Power	0.395 "	10.03 mm	Male Pins Plug	Combo - Stacked D-Sub	Green			Gold	UL94 V-0	Board Lock Grounding Indents Mounting Brackets	Housing/Shell (4-40)	7.5 A 24 A	0.76 Ám	30 Áin	250 VDC	2 (DA A) - 7W2	Solder	2	2 5	x 2
Amphenol CONEC 13-000061	Board Edge Right Angle Through Hole	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	Signal and Power	0.395 "	10.03 mm	Male Pins Plug	Combo D-Sub	Green	7	2	Gold	UL94 V-0	Board Lock Grounding Indents Mounting Brackets	Housing/Shell (4-40)	7.5 A 24 A	0.76 Ám	30 Áin	250 VDC	2 (DA A) - 7W2	Solder	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	10	$ 35.91

Description

General part information

13-0000 Series

7 (5 + 2 Power) x 2 Position D-Sub, Combo - Stacked Plug, Male Pins Connector
