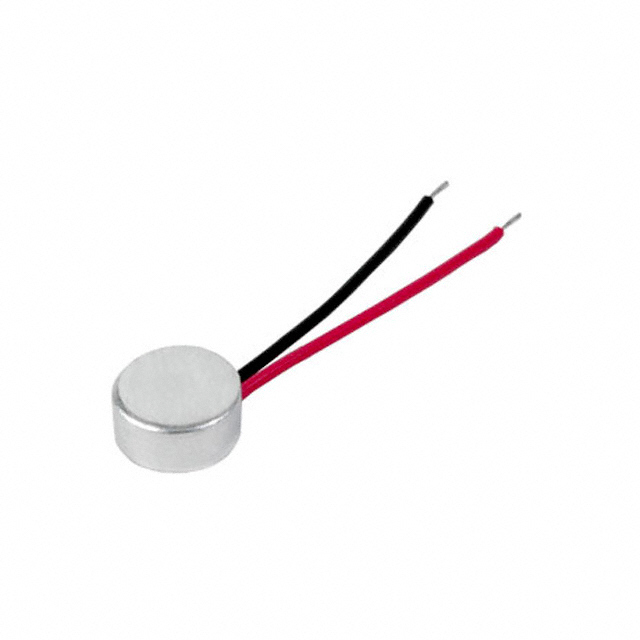

CMC-2742WBL-25L

Active

CUI Devices

MIC COND ANLG OMNI -42DB 0.236"D

Search across all available documentation for this part.

Active

CUI Devices

MIC COND ANLG OMNI -42DB 0.236"D

Technical Specifications

Parameters and characteristics for this part

Specification	CMC-2742WBL-25L

Current - Supply	500 µA
Direction	Omnidirectional
Frequency Range [Max]	20 kHz
Frequency Range [Min]	100 Hz
Height (Max) [Max]	4.1 mm
Height (Max) [Max]	0.161 in
Impedance	2.2 kOhms
Output Type	Analog
Port Location	Top
Ratings	IP57 - Dust Protected, Waterproof
S/N Ratio	57 dB
Shape	Circular
Size / Dimension [diameter]	6 mm
Size / Dimension [diameter]	0.236 in
Termination	Wire Leads
Type	Electret Condenser
Voltage - Rated	2 VDC
Voltage Range [Max]	10 V
Voltage Range [Min]	2 V

Part	Voltage - Rated	Output Type	Port Location	Shape	Current - Supply	Direction	Termination	Impedance	Ratings	S/N Ratio	Voltage Range [Min]	Voltage Range [Max]	Frequency Range [Max]	Frequency Range [Min]	Type	Height (Max) [Max]	Height (Max) [Max]	Size / Dimension [diameter]	Size / Dimension [diameter]
CUI Devices CMC-2742WBL-25L	2 VDC	Analog	Top	Circular	500 µA	Omnidirectional	Wire Leads	2.2 kOhms	IP57 - Dust Protected Waterproof	57 dB	2 V	10 V	20 kHz	100 Hz	Electret Condenser	4.1 mm	0.161 in	6 mm	0.236 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

100 Hz ~ 20 kHz Analog Microphone Electret Condenser 2 V ~ 10 V Omnidirectional (-42dB ±3dB @ 94dB SPL) Wire Leads
