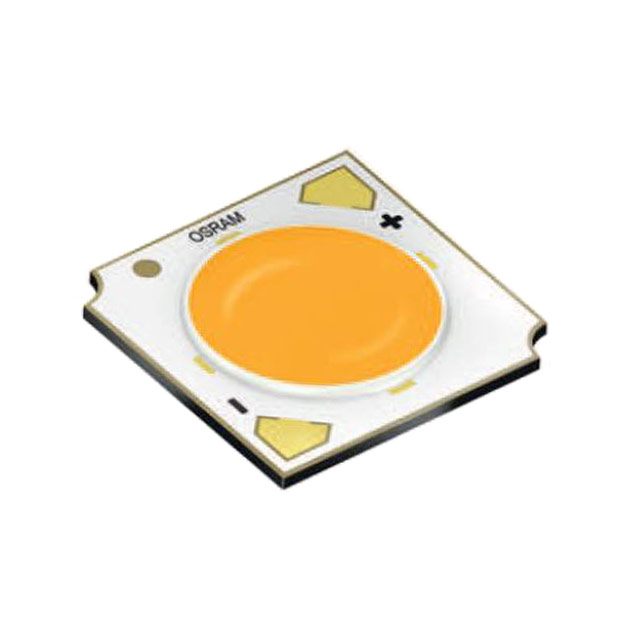

GW KAGJB3.CM-SPSQ-40S3

Obsolete

ams-OSRAM USA INC.

LED COB SOLERIQ WHT SQ 4000K

Search across all available documentation for this part.

Obsolete

ams-OSRAM USA INC.

LED COB SOLERIQ WHT SQ 4000K

Technical Specifications

Parameters and characteristics for this part

Specification	GW KAGJB3.CM-SPSQ-40S3

CCT (K)	4000 K
Color	Neutral, White
Configuration	Square
CRI (Color Rendering Index)	90
Current - Max [Max]	1.15 A
Current - Test	500 mA
Height [z]	1.4 mm
Lens Type	Flat
Light Emitting Surface (LES) [diameter]	13 mm
Lumens/Watt @ Current - Test	112 lm/W
Luminous Flux @ Current/Temperature	1950 lm
Luminous Flux @ Current/Temperature [Max]	2100 lm
Luminous Flux @ Current/Temperature [Min]	1800 lm
Size / Dimension [x]	19 mm
Size / Dimension [y]	19 mm
Temperature - Test	85 °C
Type	Chip On Board (COB)
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	34.7 V

Part	Light Emitting Surface (LES) [diameter]	Size / Dimension [y]	Size / Dimension [x]	Current - Max [Max]	CRI (Color Rendering Index)	Current - Test	Type	CCT (K)	Height [z]	Voltage - Forward (Vf) (Typ)	Lumens/Watt @ Current - Test	Viewing Angle	Temperature - Test	Color	Luminous Flux @ Current/Temperature	Lens Type	Configuration	Luminous Flux @ Current/Temperature [Max]	Luminous Flux @ Current/Temperature [Min]
ams-OSRAM USA INC. GW KAGJB3.CM-SQSR-35S3-T02	13 mm	19 mm	19 mm	1.15 A	90	500 mA	Chip On Board (COB)	3500 K	1.4 mm	34.7 V	120 lm/W	120 °	85 °C	Warm White	2090 lm	Flat	Square
ams-OSRAM USA INC. GW KAGJB3.CM-SPSQ-40S3	13 mm	19 mm	19 mm	1.15 A	90	500 mA	Chip On Board (COB)	4000 K	1.4 mm	34.7 V	112 lm/W	120 °	85 °C	Neutral White	1950 lm	Flat	Square	2100 lm	1800 lm
ams-OSRAM USA INC. GW KAGJB3.CM-RUSP-30B3-T02	13 mm	19 mm	19 mm	1.15 A	90	500 mA	Chip On Board (COB)		1.4 mm	34.7 V	103 lm/W	120 °	85 °C	Warm White	1790 lm	Flat	Square	1940 lm	1640 lm
ams-OSRAM USA INC. GW KAGJB3.CM-RUSP-27S3-T02	13 mm	19 mm	19 mm	1.15 A	90	500 mA	Chip On Board (COB)	2700 K	1.4 mm	34.7 V	103 lm/W	120 °	85 °C	Warm White	1790 lm	Flat	Square	1940 lm	1640 lm
ams-OSRAM USA INC. GW KAGJB3.CM-SPSQ-27S3-T02	13 mm	19 mm	19 mm	1.15 A	90	500 mA	Chip On Board (COB)	2700 K	1.4 mm	34.7 V	112 lm/W	120 °	85 °C	Warm White	1950 lm	Flat	Square	2100 lm	1800 lm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting COBs Engines Modules Chip On Board (COB) SOLERIQ® S 13 White, Neutral Square
