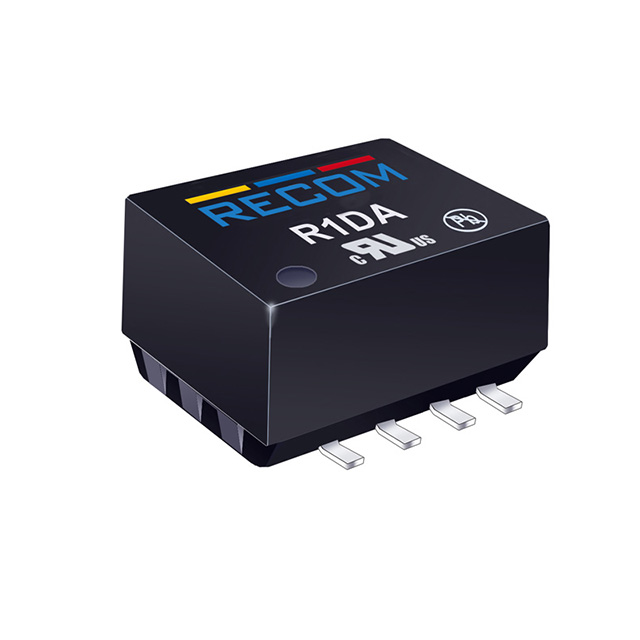

R1DA-091212/P-R

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - SMD 1W 9VIN/12VOUT 42MA DUAL SHRTCRCTPROTECT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

R1DA-091212/P-R

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - SMD 1W 9VIN/12VOUT 42MA DUAL SHRTCRCTPROTECT

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R1DA-091212/P-R

Applications	ITE (Commercial)
Current - Output (Max) [Max]	42 mA
Current - Output (Max) [Max]	42 mA
Efficiency	80 %
Features	SCP
Mounting Type	Surface Mount
Number of Outputs	2
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Package / Case	10-SMD Module, 7 Leads
Size / Dimension [x]	15.2 mm
Size / Dimension [x]	0.6 in
Size / Dimension [y]	10.7 mm
Size / Dimension [y]	0.42 "
Size / Dimension [z]	0.28 "
Size / Dimension [z]	7 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	9.9 V
Voltage - Input (Min) [Min]	8.1 V
Voltage - Isolation	1000 V
Voltage - Output 1	12 V
Voltage - Output 2	12 V

R1DA-3.33.33.3 Series

Isolated DC/DC Converters - SMD CONV DC/DC 1W 3.3VIN 12/12VOUT

Part	Features	Applications	Voltage - Input (Max) [Max]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Output 2	Voltage - Output 1	Mounting Type	Type	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Isolation	Number of Outputs	Current - Output (Max)	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Current - Output (Max) [Max]	Efficiency	Current - Output (Max)	Current - Output (Max)
RECOM Power R1DA-3.31515/P-R	SCP	ITE (Commercial)	3.63 V	10.7 mm	0.28 "	15.2 mm	7 mm	0.6 in	0.42 "	15 V	15 V	Surface Mount	Isolated Module	10-SMD Module 7 Leads	100 °C	-40 °C	1000 V	2	33 mA	2.97 V
RECOM Power R1DA-091212/P-R	SCP	ITE (Commercial)	9.9 V	10.7 mm	0.28 "	15.2 mm	7 mm	0.6 in	0.42 "	12 V	12 V	Surface Mount	Isolated Module	10-SMD Module 7 Leads	100 °C	-40 °C	1000 V	2		8.1 V	42 mA	42 mA	80 %
RECOM Power R1DA-243.33.3/P-R	SCP	ITE (Commercial)	26.4 V	10.7 mm	0.28 "	15.2 mm	7 mm	0.6 in	0.42 "	3.3 V	3.3 V	Surface Mount	Isolated Module	10-SMD Module 7 Leads	100 °C	-40 °C	1000 V	2		21.6 V			75 %	150 mA	150 mA
RECOM Power R1DA-240505	SCP	ITE (Commercial)	26.4 V	10.7 mm	0.28 "	15.2 mm	7 mm	0.6 in	0.42 "	5 V	5 V	Surface Mount	Isolated Module	10-SMD Module 7 Leads	100 °C	-40 °C	1000 V	2	100 mA	21.6 V			78 %	100 mA
RECOM Power R1DA-150505/P-R	SCP	ITE (Commercial)	16.5 V	10.7 mm	0.28 "	15.2 mm	7 mm	0.6 in	0.42 "	5 V	5 V	Surface Mount	Isolated Module	10-SMD Module 7 Leads	100 °C	-40 °C	1000 V	2	100 mA	13.5 V			78 %	100 mA
RECOM Power R1DA-241212-R	SCP	ITE (Commercial)	26.4 V	10.7 mm	0.28 "	15.2 mm	7 mm	0.6 in	0.42 "	12 V	12 V	Surface Mount	Isolated Module	10-SMD Module 7 Leads	100 °C	-40 °C	1000 V	2		21.6 V	42 mA	42 mA	80 %
RECOM Power R1DA-3.33.33.3/P	SCP	ITE (Commercial)	3.63 V	10.7 mm	0.28 "	15.2 mm	7 mm	0.6 in	0.42 "	3.3 V	3.3 V	Surface Mount	Isolated Module	10-SMD Module 7 Leads	100 °C	-40 °C	1000 V	2		2.97 V			75 %	150 mA	150 mA
RECOM Power R1DA-151515	SCP	ITE (Commercial)	16.5 V	10.7 mm	0.28 "	15.2 mm	7 mm	0.6 in	0.42 "	15 V	15 V	Surface Mount	Isolated Module	10-SMD Module 7 Leads	100 °C	-40 °C	1000 V	2	33 mA	13.5 V
RECOM Power R1DA-051212-R	SCP	ITE (Commercial)	5.5 V	10.7 mm	0.28 "	15.2 mm	7 mm	0.6 in	0.42 "	12 V	12 V	Surface Mount	Isolated Module	10-SMD Module 7 Leads	100 °C	-40 °C	1000 V	2		4.5 V	42 mA	42 mA	80 %
RECOM Power R1DA-053.33.3-R	SCP	ITE (Commercial)	5.5 V	10.7 mm	0.28 "	15.2 mm	7 mm	0.6 in	0.42 "	3.3 V	3.3 V	Surface Mount	Isolated Module	10-SMD Module 7 Leads	100 °C	-40 °C	1000 V	2		4.5 V			75 %	150 mA	150 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 11.58
	Digi-Reel®	1	$ 11.58
	Tape & Reel (TR)	500	$ 9.48
Newark	Each (Supplied on Full Reel)	500	$ 9.87
		1000	$ 9.32
		1500	$ 8.76
Sager	N/A	1	$ 11.56
		5	$ 11.19
		10	$ 10.68
		25	$ 10.36
		50	$ 10.21
		100	$ 9.91
		250	$ 9.26

Description

General part information

R1DA-3.33.33.3 Series

Isolated DC/DC Converters - SMD CONV DC/DC 1W 3.3VIN 12/12VOUT
