845-112-521-204
ActiveEDAC Inc.

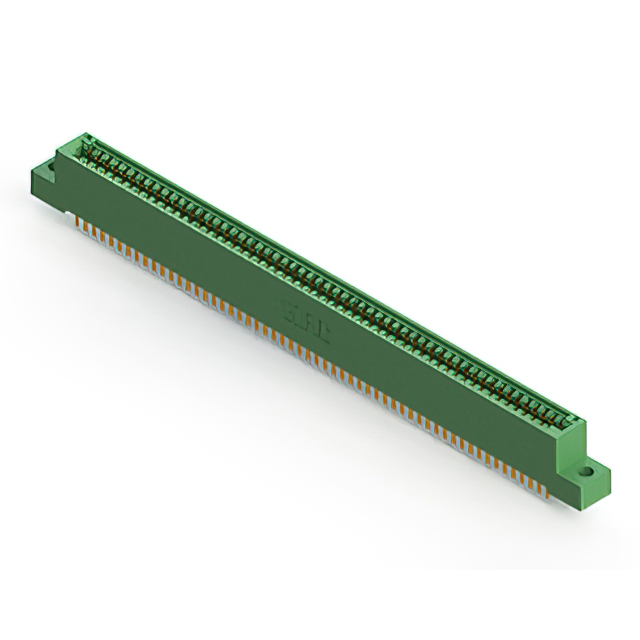

CONN EDGE DUAL FML 112POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
845-112-521-204
ActiveEDAC Inc.
CONN EDGE DUAL FML 112POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 845-112-521-204 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.96 mm |
| Flange Feature [diameter] | 0.156 in |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 112 |
| Number of Positions/Bay/Row [custom] | 56 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
845-112 Series
...
| Part | Mounting Type | Number of Positions/Bay/Row [custom] | Pitch [x] | Pitch [x] | Contact Finish Thickness | Contact Finish Thickness | Number of Rows | Operating Temperature [Max] | Operating Temperature [Min] | Read Out | Contact Type | Color | Gender | Contact Material | Material - Insulation | Number of Positions | Card Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Finish | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Termination Rows | Termination | Flange Feature | Flange Feature | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Through Hole | 56 | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | 2 | 125 °C | -40 °C | Dual | Cantilever | Green | Female | Copper Alloy | Diallyl Phthalate (DAP) | 112 | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | 2 | Wire Wrap | |||
EDAC Inc. | Through Hole | 56 | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | 2 | 125 °C | -40 °C | Dual | Cantilever | Green | Female | Copper Alloy | Diallyl Phthalate (DAP) | 112 | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Side Mount Opening Unthreaded | 2 | Solder | 3.25 mm | 0.128 in | |||
EDAC Inc. | Through Hole | 56 | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | 2 | 125 °C | -40 °C | Dual | Cantilever | Green | Female | Copper Alloy | Diallyl Phthalate (DAP) | 112 | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 4-40 Threaded Insert Top Mount Opening | 2 | Solder | |||||
EDAC Inc. | Through Hole | 56 | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | 2 | 125 °C | -40 °C | Dual | Cantilever | Green | Female | Copper Alloy | Diallyl Phthalate (DAP) | 112 | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | 2 | Solder | |||
EDAC Inc. | Through Hole | 56 | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | 2 | 125 °C | -40 °C | Dual | Cantilever | Green | Female | Copper Alloy | Diallyl Phthalate (DAP) | 112 | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 2 | Wire Wrap | ||||||
EDAC Inc. | Through Hole | 56 | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | 2 | 125 °C | -40 °C | Dual | Cantilever | Green | Female | Copper Alloy | Diallyl Phthalate (DAP) | 112 | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | 2 | Wire Wrap | |||
EDAC Inc. | Through Hole | 56 | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | 2 | 125 °C | -40 °C | Dual | Cantilever | Green | Female | Copper Alloy | Diallyl Phthalate (DAP) | 112 | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | M3 Threaded Insert Top Mount Opening | 2 | Wire Wrap | |||||
EDAC Inc. | Through Hole | 56 | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | 2 | 125 °C | -40 °C | Dual | Cantilever | Green | Female | Copper Alloy | Diallyl Phthalate (DAP) | 112 | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | 2 | Solder | |||
EDAC Inc. | Board Edge Straddle Mount | 56 | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | 2 | 125 °C | -40 °C | Dual | Cantilever | Green | Female | Copper Alloy | Diallyl Phthalate (DAP) | 112 | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | 2 | Solder | Card Extender | ||
EDAC Inc. | Through Hole | 56 | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | 2 | 125 °C | -40 °C | Dual | Cantilever | Green | Female | Copper Alloy | Diallyl Phthalate (DAP) | 112 | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Side Mount Opening Unthreaded | 2 | Solder | 3.25 mm | 0.128 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
845-112 Series
112 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
