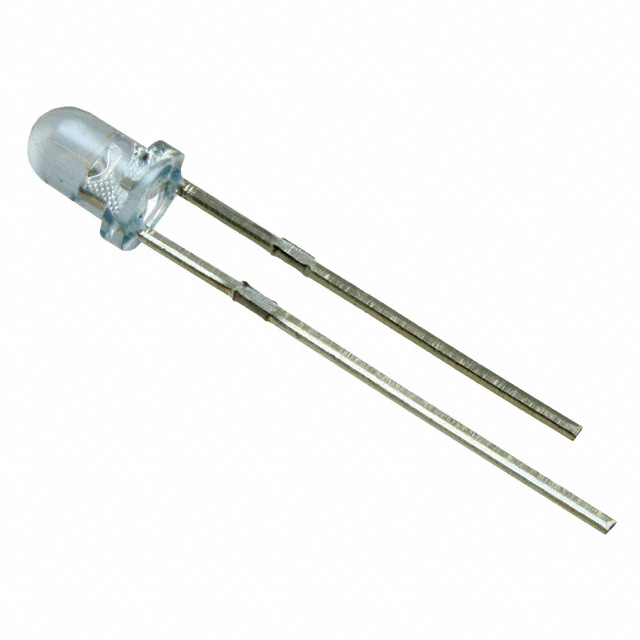

SIR204-A
ActiveEverlight Electronics Co Ltd
EMITTER IR 875NM 100MA RADIAL
Deep-Dive with AI
Search across all available documentation for this part.
SIR204-A
ActiveEverlight Electronics Co Ltd
EMITTER IR 875NM 100MA RADIAL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SIR204-A |
|---|---|
| Current - DC Forward (If) (Max) [Max] | 100 mA |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Top View |
| Package / Case | Radial |
| Radiant Intensity (Ie) Min @ If | 4 mW/sr |
| Type | Infrared (IR) |
| Viewing Angle | 30 ° |
| Voltage - Forward (Vf) (Typ) | 1.3 V |
| Wavelength | 875 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 3000 | $ 0.17 | |
Description
General part information
SIR204 Series
Infrared (IR) Emitter 875nm 1.3V 100mA 4mW/sr @ 20mA 30° Radial
Documents
Technical documentation and resources
No documents available
