SS-6488S-A-PG4-BA-RMK4

Active

BEL MAGNETIC SOLUTIONS

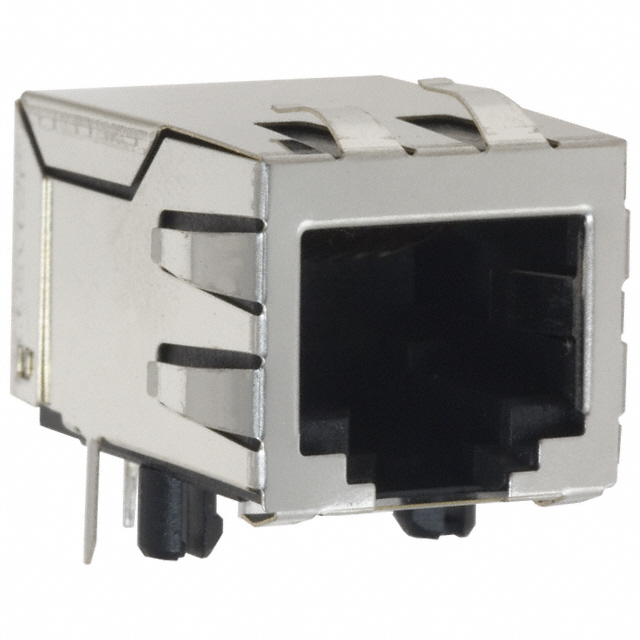

CONN MOD JACK 8P8C R/A SHIELDED

Deep-Dive with AI

Search across all available documentation for this part.

SS-6488S-A-PG4-BA-RMK4

Active

BEL MAGNETIC SOLUTIONS

CONN MOD JACK 8P8C R/A SHIELDED

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SS-6488S-A-PG4-BA-RMK4

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Features	Board Lock, Keyed
Housing Material	Thermoplastic
LED Color	Does Not Contain LED
Mounting Type	Through Hole
Number of Ports	1
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	90 °
Shielding	Shielded, EMI Finger
Tab Direction	Down
Termination	Solder

SS-6488S Series

Part	Orientation	Number of Positions/Contacts	Contact Finish Thickness	Contact Finish Thickness	Features	Contact Material	Mounting Type	Shielding	Connector Type	Number of Rows	Number of Ports	Termination	LED Color	Housing Material	Operating Temperature [Max]	Operating Temperature [Min]	Tab Direction	Contact Finish
BEL MAGNETIC SOLUTIONS SS-6488S-A-PG4-BA-RMK4	90 °	8p8c (RJ45 Ethernet)	0.76 Ám	30 Áin	Board Lock Keyed	Copper Alloy	Through Hole	Shielded EMI Finger	Jack	1	1	Solder	Does Not Contain LED	Thermoplastic	85 °C	-40 °C	Down	Gold
BEL MAGNETIC SOLUTIONS SS-6488S-A-NF-01-M07	90 °	8p8c (RJ45 Ethernet)	0.76 Ám	30 Áin		Copper Alloy	Through Hole	Shielded EMI Finger	Jack	1	1	Solder	Does Not Contain LED	Thermoplastic	85 °C	-40 °C	Down	Gold
BEL MAGNETIC SOLUTIONS SS-6488S-A-NF-50	90 °	8p8c (RJ45 Ethernet)	1.27 µm	50 µin		Copper Alloy	Through Hole	Shielded	Jack	1	1	Solder	Does Not Contain LED	Thermoplastic	85 °C	-40 °C	Down	Gold
BEL MAGNETIC SOLUTIONS SS-6488S-A-FLS-01	90 °	8p8c (RJ45 Ethernet)	0.76 Ám	30 Áin	Board Lock Panel Stops	Copper Alloy	Through Hole	Shielded EMI Finger	Jack	1	1	Solder	Does Not Contain LED	Thermoplastic	85 °C	-40 °C	Down	Gold
BEL MAGNETIC SOLUTIONS SS-6488S-A-NF-K1	90 °	8p8c (RJ45 Ethernet)	0.76 Ám	30 Áin	Board Lock Keyed	Copper Alloy	Through Hole	Shielded	Jack	1	1	Solder	Does Not Contain LED	Thermoplastic	85 °C	-40 °C	Down	Gold
BEL MAGNETIC SOLUTIONS SS-6488S-A-PG4-BA-50	90 °	8p8c (RJ45 Ethernet)	1.27 µm	50 µin		Copper Alloy	Through Hole	Shielded EMI Finger	Jack	1	1	Solder	Does Not Contain LED	Thermoplastic	85 °C	-40 °C	Down	Gold
BEL MAGNETIC SOLUTIONS SS-6488S-A-NF-SB02	90 °	8p8c (RJ45 Ethernet)	1.27 µm	50 µin	Board Lock Shorting	Copper Alloy	Through Hole	Shielded	Jack	1	1	Solder	Does Not Contain LED	Thermoplastic	85 °C	-40 °C	Down	Gold
BEL MAGNETIC SOLUTIONS SS-6488S-A-NF-1	90 °	8p8c (RJ45 Ethernet)	0.76 Ám	30 Áin		Copper Alloy	Through Hole	Shielded	Jack	1	1	Solder	Does Not Contain LED	Thermoplastic	85 °C	-40 °C	Down	Gold
BEL MAGNETIC SOLUTIONS SS-6488S-A-PG4-BA	90 °	8p8c (RJ45 Ethernet)	0.76 Ám	30 Áin		Copper Alloy	Through Hole	Shielded EMI Finger	Jack	1	1	Solder	Does Not Contain LED	Thermoplastic	85 °C	-40 °C	Down	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 1.67
		10	$ 1.45
		25	$ 1.39
		40	$ 1.36
		80	$ 1.30
		240	$ 1.17
		480	$ 1.09

Description

General part information

SS-6488S Series

Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Shielded, EMI Finger
