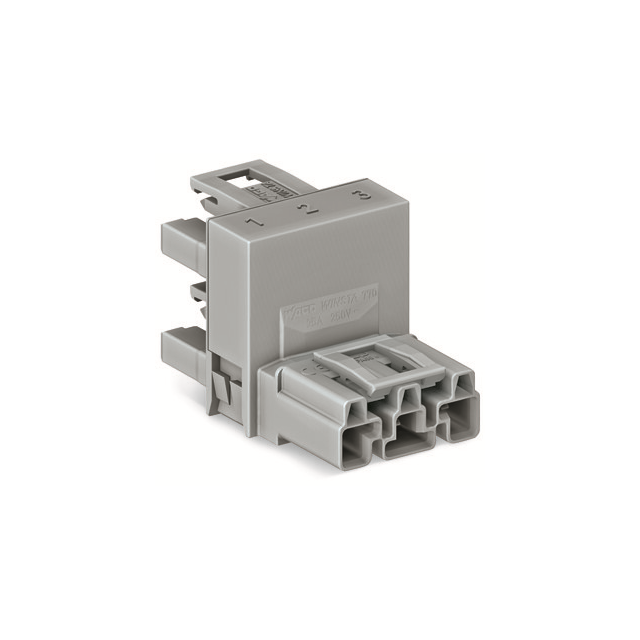

770-1761

Active

WAGO Corporation

H-DISTRIBUTION CONNECTOR; 3-POLE

Search across all available documentation for this part.

Active

WAGO Corporation

H-DISTRIBUTION CONNECTOR; 3-POLE

Technical Specifications

Parameters and characteristics for this part

Specification	770-1761

Convert From (Adapter End)	1, 3 pos
Convert From (Adapter End)	Terminal Block, Plug Connection
Convert To (Adapter End)	6 pos, 2 Rows
Convert To (Adapter End)	Terminal Block, Plug Connection
Mounting Type	Free Hanging (In-Line)

Part	Convert From (Adapter End)	Convert From (Adapter End)	Convert To (Adapter End)	Convert To (Adapter End)	Mounting Type
WAGO Corporation 770-1701	1 2 Rows	Plug Connection Terminal Block	1 Row 2 Rows	Plug Connection Terminal Block	Free Hanging (In-Line)
WAGO Corporation 770-1761	1 3 pos	Plug Connection Terminal Block	2 Rows 6 pos	Plug Connection Terminal Block	Free Hanging (In-Line)
WAGO Corporation 770-1714		2 Row 6 Pos Plug Connection Terminal Block	2 Rows 6 pos	Plug Connection Terminal Block	Free Hanging (In-Line)
WAGO Corporation 770-1744		10 Pos 2 Row Plug Connection Terminal Block	2 Rows 10 Female Sockets	Plug Connection Terminal Block	Free Hanging (In-Line)
WAGO Corporation 770-1704	1 2 Rows	Plug Connection Terminal Block	1 Row 2 Rows	Plug Connection Terminal Block	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Terminal Block, Plug Connection, 3 Pos, 1 Row To Terminal Block, Plug Connection, 6 Pos, 2 Row
