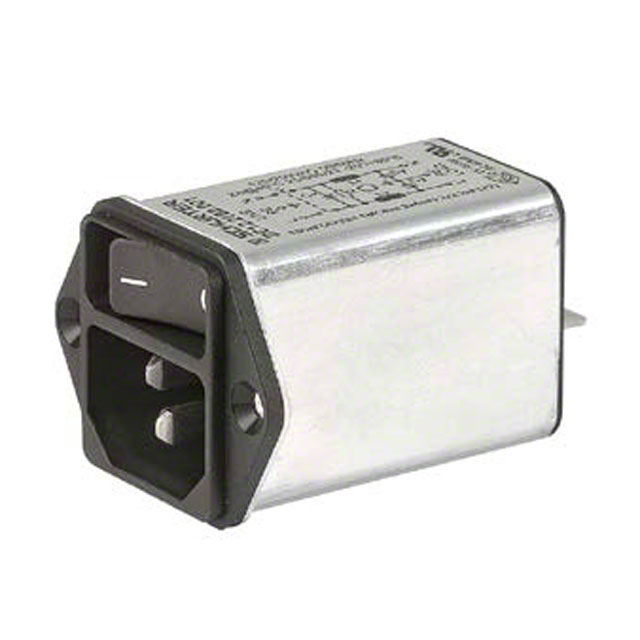

DC12.5202.131
ActiveSCHURTER Inc.
PWR ENT MOD RCPT IEC320-C18 PNL
Deep-Dive with AI
Search across all available documentation for this part.
DC12.5202.131
ActiveSCHURTER Inc.
PWR ENT MOD RCPT IEC320-C18 PNL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DC12.5202.131 |
|---|---|
| Accomodates a Fuse | True |
| Approval Agency | CQC, ENEC, cULus |
| Connector Style | IEC 320-C18 |
| Connector Type | Receptacle, Male Blades - Module |
| Current Rating - Appliance Inlet | 10 A |
| Current Rating - Filter | 10 A |
| Features | V-Lock Notch, Shielded |
| Filter Type | Filtered (EMI, RFI) - Commercial, Medical |
| Ingress Protection | IP40 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Panel Mount, Snap-In |
| Number of Positions | 2 |
| Panel Cutout Dimensions [x] | 29.4 mm |
| Panel Cutout Dimensions [y] | 33.1 mm |
| Panel Thickness [Max] | 3 mm |
| Panel Thickness [Max] | 0.118 in |
| Panel Thickness [Min] | 0.039 in |
| Panel Thickness [Min] | 1 mm |
| Switch Features | Switch On-Off |
| Termination | 0.25 in |
| Termination | 6.3 mm |
| Termination | Quick Connect |
| Voltage Rating - Appliance Inlet | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 37.29 | |
| 50 | $ 26.08 | |||
| 100 | $ 23.37 | |||
Description
General part information
DC12.5202 Series
Power Entry Connector Receptacle, Male Blades - Module IEC 320-C18 Panel Mount, Snap-In
