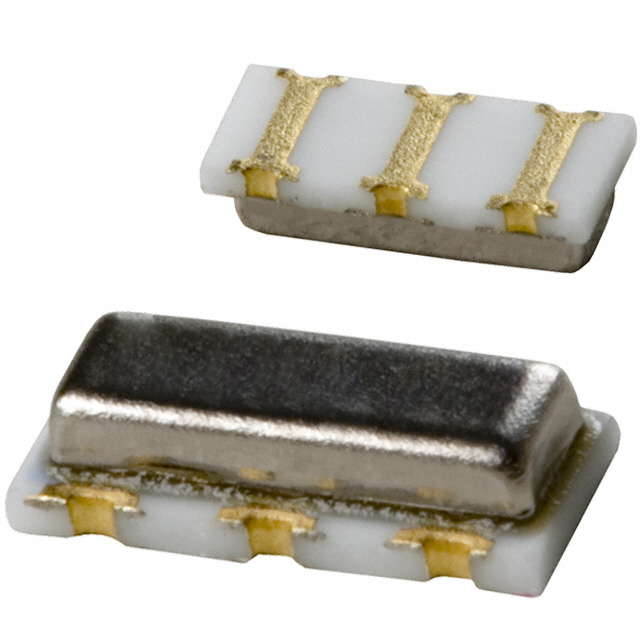

CSTCR7M37G55Z-R0

Active

Murata Power Solutions Inc.

CER RESONATOR

Deep-Dive with AI

Search across all available documentation for this part.

CSTCR7M37G55Z-R0

Active

Murata Power Solutions Inc.

CER RESONATOR

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CSTCR7M37G55Z-R0

Height [z]	1.19 mm
Height [z]	0.047 in
Mounting Type	Surface Mount
Package / Case	3-SMD, Non-Standard
Size / Dimension [x]	0.177 in
Size / Dimension [x]	4.5 mm
Size / Dimension [y]	0.079 in
Size / Dimension [y]	2 mm

CSTCR Series

Part	Frequency Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Impedance	Frequency	Capacitance	Package / Case	Mounting Type	Height [z]	Height [z]	Type	Features
Murata Power Solutions Inc. CSTCR6M25G55-R0	0.5 %	-20 C	80 C	0.177 in	0.079 in	4.5 mm	2 mm	50 Ohms	6.25 MHz	39 pF	3-SMD Non-Standard	Surface Mount	0.047 in	1.2 mm	Ceramic	Built in Capacitor
Murata Power Solutions Inc. CSTCR4M30G55-R0				0.177 in	0.079 in	4.5 mm	2 mm				3-SMD Non-Standard	Surface Mount	0.047 in	1.19 mm
Murata Power Solutions Inc. CSTCR7M37G53Z-R0				0.177 in	0.079 in	4.5 mm	2 mm				3-SMD Non-Standard	Surface Mount	0.047 in	1.19 mm
Murata Power Solutions Inc. CSTCR5M76G55-R0				0.177 in	0.079 in	4.5 mm	2 mm				3-SMD Non-Standard	Surface Mount	0.047 in	1.19 mm
Murata Power Solutions Inc. CSTCR6M69G53-R0				0.177 in	0.079 in	4.5 mm	2 mm				3-SMD Non-Standard	Surface Mount	0.047 in	1.19 mm
Murata Power Solutions Inc. CSTCR6M40G55-R0	0.5 %	-20 C	80 C	0.177 in	0.079 in	4.5 mm	2 mm	50 Ohms	6.4 MHz	39 pF	3-SMD Non-Standard	Surface Mount	0.047 in	1.2 mm	Ceramic	Built in Capacitor
Murata Power Solutions Inc. CSTCR7M00G55-R0	0.5 %	-20 C	80 C	0.177 in	0.079 in	4.5 mm	2 mm	50 Ohms	7 MHz	39 pF	3-SMD Non-Standard	Surface Mount	0.047 in	1.2 mm	Ceramic	Built in Capacitor
Murata Power Solutions Inc. CSTCR4M55G55-R0				0.177 in	0.079 in	4.5 mm	2 mm				3-SMD Non-Standard	Surface Mount	0.047 in	1.19 mm
Murata Power Solutions Inc. CSTCR7M37G55Z-R0				0.177 in	0.079 in	4.5 mm	2 mm				3-SMD Non-Standard	Surface Mount	0.047 in	1.19 mm
Murata Power Solutions Inc. CSTCR5M00G53-R0	0.5 %	-20 C	80 C	0.177 in	0.079 in	4.5 mm	2 mm	60 Ohms	5 MHz	15 pF	3-SMD Non-Standard	Surface Mount	0.047 in	1.19 mm	Ceramic	Built in Capacitor

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	3000	$ 0.17

Description

General part information

CSTCR Series

Resonator Surface Mount

Documents

Technical documentation and resources

No documents available
