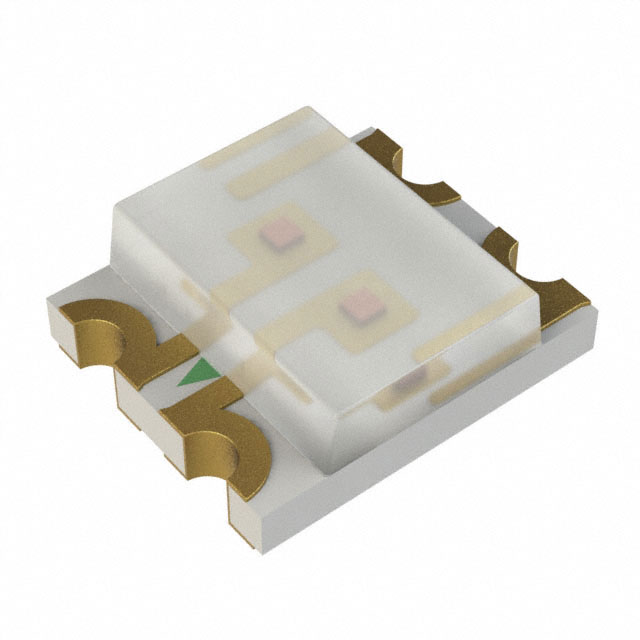

HSMF-C15A
ActiveBroadcom Limited
LED AMBER/RED DIFFUSED SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HSMF-C15A
ActiveBroadcom Limited
LED AMBER/RED DIFFUSED SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HSMF-C15A |
|---|---|
| Color | Red, Amber |
| Configuration | Independent |
| Current - Test | 20 mA, 20 mA |
| Height (Max) [Max] | 1.2 mm |
| Lens Color | White |
| Lens Size [x] | 2 mm |
| Lens Size [y] | 2.7 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Diffused |
| Millicandela Rating [custom] | 79 mcd |
| Millicandela Rating [custom] | 55 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead |
| Supplier Device Package | SMD |
| Viewing Angle | 170 ° |
| Voltage - Forward (Vf) (Typ) | 2 V, 1.9 V |
| Wavelength - Dominant | 632 nm, 592 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.25 | |
| Digi-Reel® | 1 | $ 1.25 | ||
| Tape & Reel (TR) | 12000 | $ 0.38 | ||
Description
General part information
HSMF-C15A Series
Amber, Red 592nm Amber, 632nm Red LED Indication - Discrete 1.9V Amber, 2V Red 4-SMD, No Lead
Documents
Technical documentation and resources
