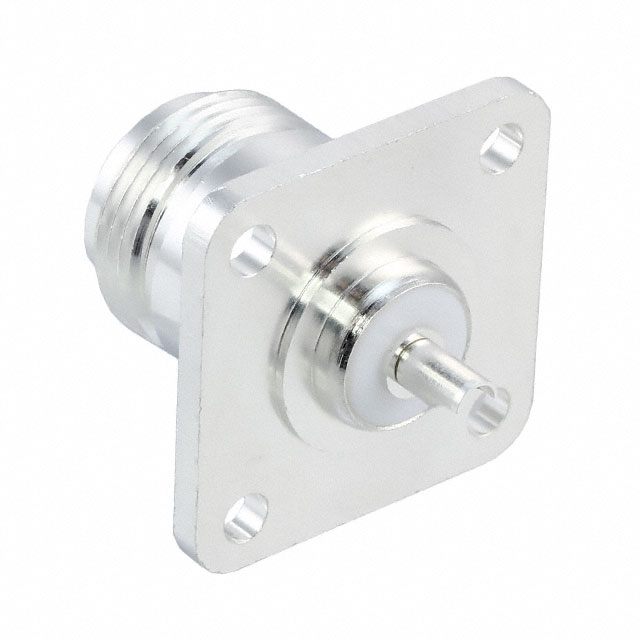

UG-58A/U(40)

Obsolete

Hirose Electric USA, Inc.

CONN N JACK STR 50OHM SOLDER

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

CONN N JACK STR 50OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	UG-58A/U(40)

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Female Socket, Jack
Contact Termination	Solder Cup
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	2 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder

Part	Contact Termination	Mounting Feature	Connector Type	Body Finish	Mating Cycles	Body Material	Housing Color	Number of Ports	Dielectric Material	Center Contact Plating	Operating Temperature [Max]	Operating Temperature [Min]	Impedance	Connector Style	Frequency - Max [Max]	Shield Termination	Center Contact Material
Hirose Electric USA, Inc. UG-58A/U(40)	Solder Cup	Flange	Female Socket Jack	Nickel	500	Brass	Silver	1	Polytetrafluoroethylene (PTFE)	Gold	85 °C	-55 °C	50 Ohms	N Type	2 GHz	Solder	Beryllium Copper
Hirose Electric USA, Inc. UG-58A/U(50)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

N Type Connector Jack, Female Socket 50 Ohms Panel Mount Solder Cup
