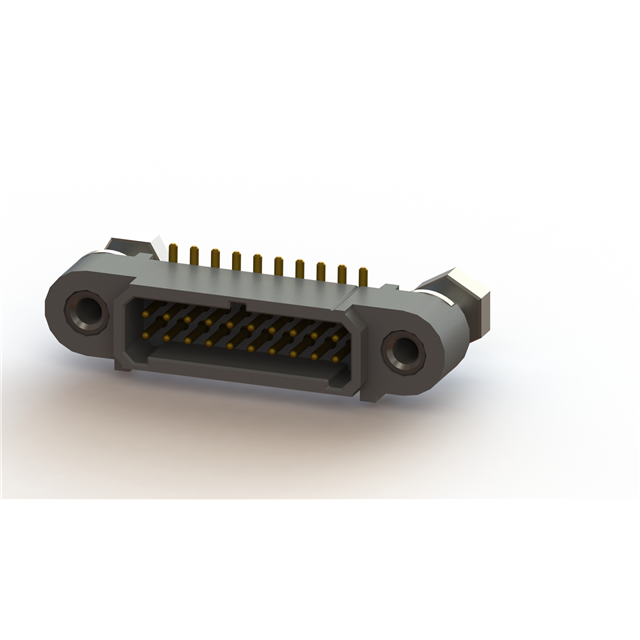

A221T20V22
ActiveNicomatic
MALE 20POS STRAIGHT SMT 1.27MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A221T20V22
ActiveNicomatic
MALE 20POS STRAIGHT SMT 1.27MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | A221T20V22 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | 0.15 µm |
| Contact Finish Thickness - Mating | 5.9 µin |
| Contact Finish Thickness - Post | 0.15 µm |
| Contact Finish Thickness - Post | 5.9 µin |
| Contact Material | Copper Alloy |
| Contact Shape | Circular |
| Contact Type | Male Pin |
| Current Rating (Amps) | 2.5 A |
| Features | Mounting Flange, Mating Flange, Mounting Hardware |
| Insulation Color | Black |
| Insulation Height [custom] | 0.157 in |
| Insulation Height [custom] | 4 mm |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 20 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 200 °C |
| Operating Temperature [Min] | -65 ░C |
| Pitch - Mating | 0.039 in |
| Pitch - Mating | 1 mm |
| Row Spacing - Mating | 0.039 " |
| Row Spacing - Mating | 1 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Board, Cable |
| Termination | Solder |
| Voltage Rating | 600 VAC |
