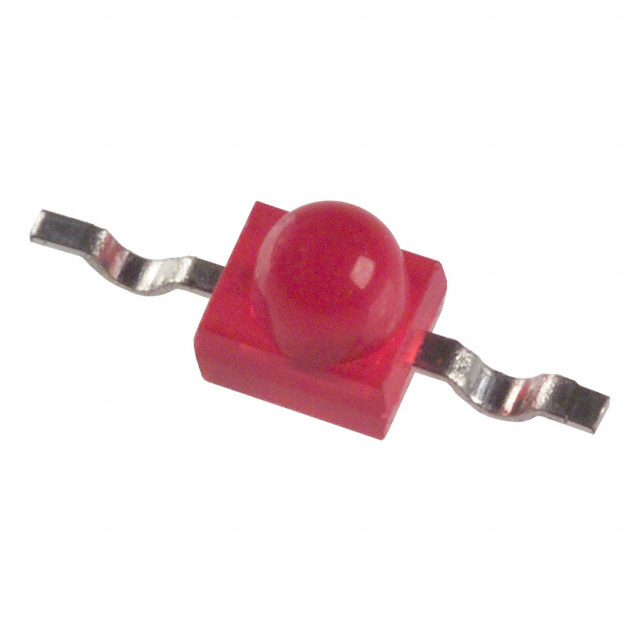

SSL-LXA228LID-TR21

Active

Lumex Opto/Components Inc.

LED RED DIFF YOKE LEAD SMD BOT

Deep-Dive with AI

Search across all available documentation for this part.

SSL-LXA228LID-TR21

Active

Lumex Opto/Components Inc.

LED RED DIFF YOKE LEAD SMD BOT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SSL-LXA228LID-TR21

Color	Red
Configuration	Standard
Current - Test	20 mA
Height (Max) [Max]	2.9 mm
Lens Color	Red
Lens Size [diameter]	1.9 mm
Lens Style	Round with Domed Top
Lens Transparency	Diffused
Millicandela Rating	12 mcd
Mounting Type	Surface Mount, Bottom Entry
Package / Case	2-SMD, Yoke Bend
Size / Dimension [x]	2.5 mm
Size / Dimension [y]	2 mm
Supplier Device Package	Yoke Lead
Viewing Angle	50 °
Voltage - Forward (Vf) (Typ)	2 V
Wavelength - Peak	635 nm

SSL-LXA228 Series

Part	Wavelength - Peak	Height (Max) [Max]	Package / Case	Mounting Type	Lens Color	Lens Style	Lens Size [diameter]	Supplier Device Package	Configuration	Color	Lens Transparency	Current - Test	Size / Dimension [y]	Size / Dimension [x]	Viewing Angle	Millicandela Rating	Voltage - Forward (Vf) (Typ)	Height (Max) [Max] [z]
Lumex Opto/Components Inc. SSL-LXA228YC-TR21	585 nm	2.9 mm	2-SMD Yoke Bend	Surface Mount Bottom Entry	Colorless	Round with Domed Top	1.9 mm	Axial	Standard	Yellow	Clear	20 mA	2 mm	2.5 mm	25 °	30 mcd	2 V
Lumex Opto/Components Inc. SSL-LXA228SYC-TR31	590 nm		2-SMD Z-Bend	Surface Mount	Colorless	Round with Domed Top	1.9 mm			Yellow	Clear	20 mA	2 mm	2.5 mm	25 °	250 mcd	2.1 V	2.83 mm
Lumex Opto/Components Inc. SSL-LXA228SUGCTR11			2-SMD Gull Wing	Surface Mount	Colorless	Round with Domed Top	1.9 mm	Axial	Standard	Green	Clear	20 mA	2 mm	2.5 mm	25 °	200 mcd	2.2 V	3 mm
Lumex Opto/Components Inc. SSL-LXA228GC-TR31	565 nm	2.9 mm	2-SMD Z-Bend	Surface Mount Bottom Entry	Colorless	Round with Domed Top	1.9 mm	Z-Bend	Standard	Green	Clear	20 mA	2 mm	2.5 mm	25 °	30 mcd	2.1 V
Lumex Opto/Components Inc. SSL-LXA228USBCTR11			2-SMD Gull Wing	Surface Mount	Colorless	Round with Domed Top	1.9 mm	Axial	Standard	Blue	Clear	20 mA	2 mm	2.5 mm	25 °	250 mcd	3.5 V	3 mm
Lumex Opto/Components Inc. SSL-LXA228SRC-TR21	660 nm	2.9 mm	2-SMD Yoke Bend	Surface Mount Bottom Entry	Colorless	Round with Domed Top	1.9 mm	Axial	Standard	Red	Clear	20 mA	2 mm	2.5 mm	25 °	600 mcd	1.7 V
Lumex Opto/Components Inc. SSL-LXA228SRD	660 nm	2.8 mm	Axial Flat Leads	Axial Through Hole	Red	Round with Domed Top	1.9 mm	Axial	Standard	Red	Diffused	20 mA	2 mm	2.5 mm	50 °	150 mcd	1.7 V
Lumex Opto/Components Inc. SSL-LXA228GC-FR5	565 nm		Axial	Through Hole	Colorless	Round with Domed Top	1.9 mm	Axial		Green	Clear	20 mA	2 mm	2.5 mm	25 °	30 mcd	2.2 V	3.05 mm
Lumex Opto/Components Inc. SSL-LXA228LID-TR21	635 nm	2.9 mm	2-SMD Yoke Bend	Surface Mount Bottom Entry	Red	Round with Domed Top	1.9 mm	Yoke Lead	Standard	Red	Diffused	20 mA	2 mm	2.5 mm	50 °	12 mcd	2 V
Lumex Opto/Components Inc. SSL-LXA228YD-TR31	585 nm	2.9 mm	2-SMD Z-Bend	Surface Mount Bottom Entry	Yellow	Round with Domed Top	1.9 mm	Axial	Standard	Yellow	Diffused	20 mA	2 mm	2.5 mm	50 °	12 mcd	2 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

SSL-LXA228 Series

Red LED Indication - Discrete 2V 2-SMD, Yoke Bend
