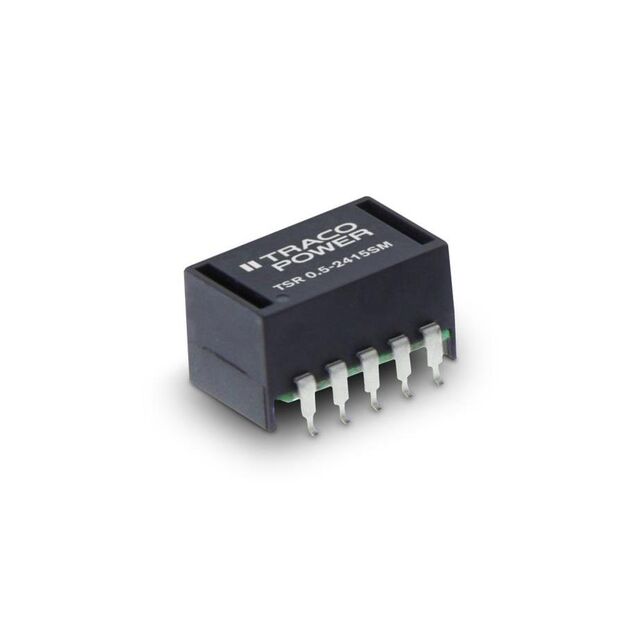

TSR 0.5-24150SM

Active

Traco Power

DC DC CONVERTER 15V 7.5W

Search across all available documentation for this part.

Active

Traco Power

DC DC CONVERTER 15V 7.5W

Technical Specifications

Parameters and characteristics for this part

Specification	TSR 0.5-24150SM

Applications	ITE (Commercial)
Current - Output (Max) [Max]	500 mA
Efficiency	97 %
Features	Remote On/Off, SCP, OTP
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-40 °C
Package / Case	10-SMD Module
Power (Watts)	7.5 W
Size / Dimension [x]	0.6 in
Size / Dimension [x]	15.3 mm
Size / Dimension [y]	0.38 in
Size / Dimension [y]	9.6 mm
Size / Dimension [z]	0.36 in
Size / Dimension [z]	9.2 mm
Type	Linear Regulator Replacement
Voltage - Input (Max) [Max]	32 V
Voltage - Input (Min) [Min]	18 V
Voltage - Output 1	15 V

Part	Current - Output (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output 1	Voltage - Input (Max) [Max]	Type	Power (Watts)	Applications	Features	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Number of Outputs	Mounting Type	Voltage - Input (Min) [Min]	Package / Case	Efficiency	Size / Dimension [y]	Size / Dimension [z]
Traco Power TSR 0.5-2415SM	500 mA	-40 °C	90 °C	1.5 V	32 V	Linear Regulator Replacement	0.75 W	ITE (Commercial)	OTP Remote On/Off SCP	0.6 in	0.38 in	0.36 in	9.6 mm	9.2 mm	15.3 mm	1	Surface Mount	4.75 V	10-SMD Module	73 %
Traco Power TSR 0.5-24150SM	500 mA	-40 °C	90 °C	15 V	32 V	Linear Regulator Replacement	7.5 W	ITE (Commercial)	OTP Remote On/Off SCP	0.6 in	0.38 in	0.36 in	9.6 mm	9.2 mm	15.3 mm	1	Surface Mount	18 V	10-SMD Module	97 %
Traco Power TSR 0.5-24120SM	500 mA	-40 °C	90 °C	12 V	32 V	Linear Regulator Replacement	6 W	ITE (Commercial)	OTP Remote On/Off SCP	0.6 in	0.38 in	0.36 in	9.6 mm	9.2 mm	15.3 mm	1	Surface Mount	15 V	10-SMD Module	97 %
Traco Power TSR 0.5-24150	500 mA	-40 °C	90 °C	15 V	32 V	Linear Regulator Replacement	7.5 W	ITE (Commercial)	OTP SCP	0.45 in	0.3 "	0.4 "			11.5 mm	1	Through Hole	18 V	3-SIP Module	97 %	7.6 mm	10.2 mm
Traco Power TSR 0.5-2425	500 mA	-40 °C	90 °C	2.5 V	32 V	Linear Regulator Replacement	1.3 W	ITE (Commercial)	OTP SCP	0.45 in	0.3 "	0.4 "			11.5 mm	1	Through Hole	4.75 V	3-SIP Module	87 %	7.6 mm	10.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Linear Regulator Replacement DC DC Converter 1 Output 15V 500mA 18V - 32V Input
