PRPC005DBAN-M71RC

Active

Sullins Connector Solutions

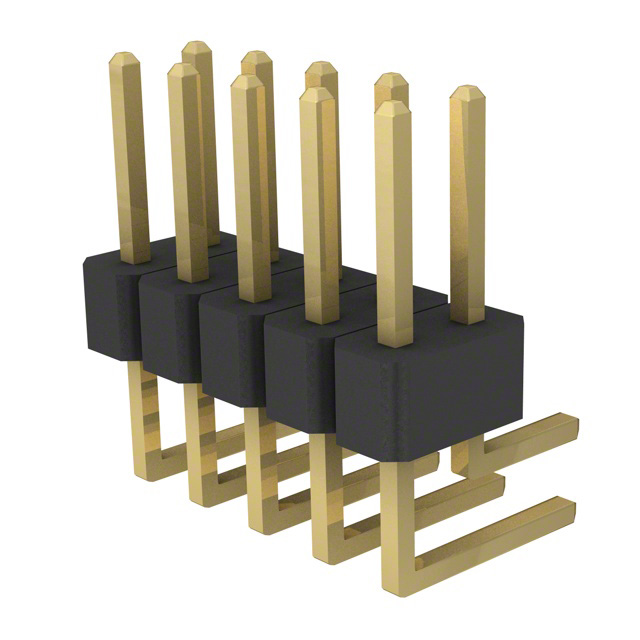

BOARD CONNECTOR, 10 CONTACT(S), 2 ROW(S), MALE, RIGHT ANGLE, 0.1 INCH PITCH, SOLDER TERMINAL, BLACK INSULATOR

Deep-Dive with AI

Search across all available documentation for this part.

PRPC005DBAN-M71RC

Active

Sullins Connector Solutions

BOARD CONNECTOR, 10 CONTACT(S), 2 ROW(S), MALE, RIGHT ANGLE, 0.1 INCH PITCH, SOLDER TERMINAL, BLACK INSULATOR

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PRPC005DBAN-M71RC

Connector Type	Breakaway, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Length - Post [x]	0.12 in
Contact Length - Post [x]	3.05 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.197 in
Insulation Height	5 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

PRPC005 Series

Part	Termination	Contact Shape	Insulation Color	Contact Material	Insulation Height [z]	Insulation Height [z]	Contact Type	Contact Length - Post [x]	Contact Length - Post [x]	Contact Length - Mating [x]	Contact Length - Mating	Contact Finish Thickness - Post	Shrouding	Contact Finish - Post	Fastening Type	Connector Type	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Material Flammability Rating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Style	Number of Rows	Mounting Type	Contact Finish - Mating	Insulation Material	Overall Contact Length	Overall Contact Length	Overall Contact Length	Number of Positions	Contact Length - Mating [x]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post
Sullins Connector Solutions PRPC005SAAN-RC	Solder	Square	Black	Brass	0.098 in	2.5 mm	Male Pin	0.12 in	3.05 mm	0.23 in	5.84 mm	Flash	Unshrouded	Gold	Push-Pull	Breakaway Header	All	0.1 in	2.54 mm	3 A	UL94 V-0	Flash	-40 °C	105 ░C	Board to Board Cable	1	Through Hole	Gold	Polybutylene Terephthalate (PBT)	0.448 in	11.39 mm
Sullins Connector Solutions PRPC005DFAN-RC	Solder	Square	Black	Brass	0.098 in	2.5 mm	Male Pin	0.12 in	3.05 mm	0.318 "		Flash	Unshrouded	Gold	Push-Pull	Breakaway Header	All	0.1 in	2.54 mm	3 A	UL94 V-0	Flash	-40 °C	105 ░C	Board to Board Cable	2	Through Hole	Gold	Polybutylene Terephthalate (PBT)		0.537 "	13.63 mm	10	8.08 mm	2.54 mm	0.1 in
Sullins Connector Solutions PRPC005DBAN-M71RC	Solder	Square	Black	Brass			Male Pin	0.12 in	3.05 mm	0.23 in	5.84 mm	Flash	Unshrouded	Gold	Push-Pull	Breakaway Header	All	0.1 in	2.54 mm	3 A	UL94 V-0	Flash	-40 °C	105 ░C	Board to Board Cable	2	Through Hole Right Angle	Gold	Polybutylene Terephthalate (PBT)				10		2.54 mm	0.1 in	0.197 in	5 mm
Sullins Connector Solutions PRPC005SGAN-M71RC	Solder	Square	Black	Brass	0.098 in	2.5 mm	Male Pin	0.12 in	3.05 mm	0.318 "		Flash	Unshrouded	Gold	Push-Pull	Breakaway Header	All	0.1 in	2.54 mm	3 A	UL94 V-0	Flash	-40 °C	105 ░C	Board to Board Cable	1	Through Hole Right Angle	Gold	Polybutylene Terephthalate (PBT)					8.08 mm
Sullins Connector Solutions PRPC005DFBN-RC	Solder	Square	Black	Brass	0.098 in	2.5 mm	Male Pin			0.318 "		Flash	Unshrouded	Gold	Push-Pull	Breakaway Header	All	0.1 in	2.54 mm	3 A	UL94 V-0	Flash	-40 °C	105 ░C	Board to Board Cable	2	Through Hole	Gold	Polybutylene Terephthalate (PBT)	0.637 in	16.17 mm		10	8.08 mm	2.54 mm	0.1 in			0.22 in	5.58 mm
Sullins Connector Solutions PRPC005DAAN-RC	Solder	Square	Black	Brass	0.098 in	2.5 mm	Male Pin	0.12 in	3.05 mm	0.23 in	5.84 mm	Flash	Unshrouded	Gold	Push-Pull	Breakaway Header	All	0.1 in	2.54 mm	3 A	UL94 V-0	Flash	-40 °C	105 ░C	Board to Board Cable	2	Through Hole	Gold	Polybutylene Terephthalate (PBT)	0.448 in	11.39 mm		10		2.54 mm	0.1 in
Sullins Connector Solutions PRPC005SACN-RC	Solder	Square	Black	Brass	0.098 in	2.5 mm	Male Pin	0.32 in	8.13 mm	0.23 in	5.84 mm	Flash	Unshrouded	Gold	Push-Pull	Breakaway Header	All	0.1 in	2.54 mm	3 A	UL94 V-0	Flash	-40 °C	105 ░C	Board to Board Cable	1	Through Hole	Gold	Polybutylene Terephthalate (PBT)	0.648 in	16.47 mm
Sullins Connector Solutions PRPC005SBCN-M71RC	Solder	Square	Black	Brass	0.098 in	2.5 mm	Male Pin	0.32 in	8.13 mm	0.23 in	5.84 mm	Flash	Unshrouded	Gold	Push-Pull	Breakaway Header	All	0.1 in	2.54 mm	3 A	UL94 V-0	Flash	-40 °C	105 ░C	Board to Board Cable	1	Through Hole Right Angle	Gold	Polybutylene Terephthalate (PBT)
Sullins Connector Solutions PRPC005SBAN-M71RC	Solder	Square	Black	Brass	0.098 in	2.5 mm	Male Pin	0.12 in	3.05 mm	0.23 in	5.84 mm	Flash	Unshrouded	Gold	Push-Pull	Breakaway Header	All	0.1 in	2.54 mm	3 A	UL94 V-0	Flash	-40 °C	105 ░C	Board to Board Cable	1	Through Hole Right Angle	Gold	Polybutylene Terephthalate (PBT)
Sullins Connector Solutions PRPC005DABN-RC	Solder	Square	Black	Brass	0.098 in	2.5 mm	Male Pin			0.23 in	5.84 mm	Flash	Unshrouded	Gold	Push-Pull	Breakaway Header	All	0.1 in	2.54 mm	3 A	UL94 V-0	Flash	-40 °C	105 ░C	Board to Board Cable	2	Through Hole	Gold	Polybutylene Terephthalate (PBT)	0.558 in	14.18 mm		10		2.54 mm	0.1 in			0.23 in	5.84 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.38
		10	$ 0.33
		100	$ 0.27
		500	$ 0.24
		1000	$ 0.20
		5000	$ 0.17
		10000	$ 0.17

Description

General part information

PRPC005 Series

Connector Header Through Hole, Right Angle 10 position 0.100" (2.54mm)

Documents

Technical documentation and resources

No documents available
