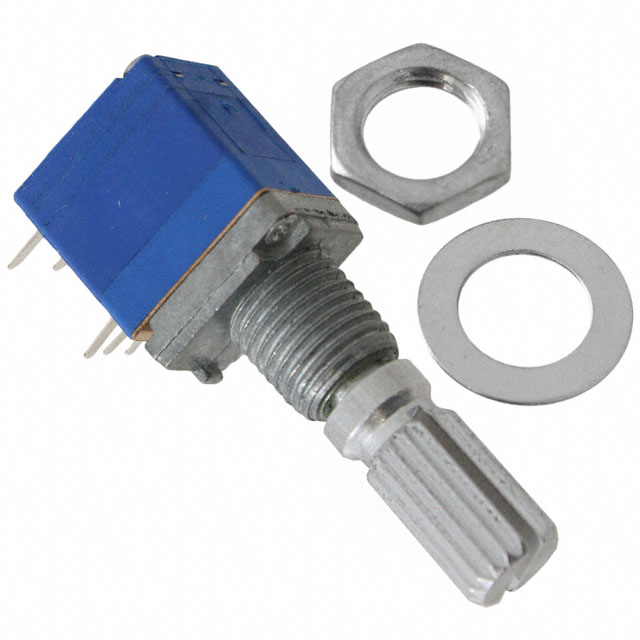

ACZ09BR2E-20KQA1-20C10P

Active

CUI Devices

ROTARY ENCODER INCREMENT 10PPR

Search across all available documentation for this part.

Active

CUI Devices

ROTARY ENCODER INCREMENT 10PPR

Technical Specifications

Parameters and characteristics for this part

Specification	ACZ09BR2E-20KQA1-20C10P

Actuator Type	Knurled End
Actuator Type [diameter]	6 mm
Built in Switch	True
Detent	True
Encoder Type	Incremental
Mounting Type	PCB Through Hole, Panel
Orientation	Right Angle
Output Type	Quadrature (Incremental)
Pulses per Revolution	10
Rotational Life (Cycles Min) [Min]	30K
Termination Style	PC Pin

Part	Actuator Type [diameter]	Actuator Type	Orientation	Termination Style	Output Type	Rotational Life (Cycles Min) [Min]	Mounting Type	Pulses per Revolution	Encoder Type
CUI Devices ACZ09BR2E-20KQA1-20C10P	6 mm	Knurled End	Right Angle	PC Pin	Quadrature (Incremental)	30K	Panel PCB Through Hole	10	Incremental
CUI Devices ACZ09BR2E-15KQD1-30C15P	6 mm	Knurled End	Vertical	PC Pin	Quadrature (Incremental)	30K	Panel PCB Through Hole	15	Incremental
CUI Devices ACZ09BR2E-20KQA1-30C15P	6 mm	Knurled End	Right Angle	PC Pin	Quadrature (Incremental)	30K	Panel PCB Through Hole	15	Incremental

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1020	$ 2.35

General part information

Rotary Encoder Incremental 10 Quadrature (Incremental) Right Angle
