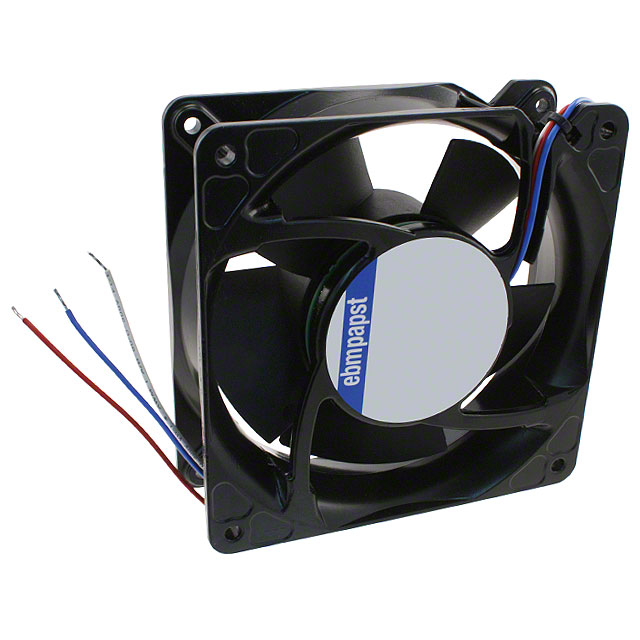

4118N/2HH-187

Active

ebm-papst Inc.

FAN AXIAL 119X38MM 48VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

4118N/2HH-187

Active

ebm-papst Inc.

FAN AXIAL 119X38MM 48VDC WIRE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	4118N/2HH-187

Air Flow	160 CFM
Air Flow	4.48 m³/min
Bearing Type	Ball
Current Rating (Amps)	0.305 A
Fan Type	Tubeaxial
Features	Speed Sensor (Tach)
Lifetime @ Temp.	70000 Hrs
Material - Frame	Metal
Noise	64 dB(A)
Operating Temperature [Max]	50 °C
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	14.7 W
RPM	5000 RPM
Size / Dimension [x]	119 mm
Size / Dimension [y]	119 mm
Termination	3 Wire Leads
Voltage - Rated [custom]	48 VDC
Voltage Range [Max]	52 VDC
Voltage Range [Min]	44 VDC
Weight	0.86 lb
Weight	390.09 g
Width [y]	38 mm

4118N Series

Part	RPM	Power (Watts)	Noise	Size / Dimension [y]	Size / Dimension [x]	Material - Frame	Weight	Weight	Approval Agency	Bearing Type	Material - Blade	Fan Type	Width [y]	Voltage - Rated [custom]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Voltage Range [Max]	Voltage Range [Min]	Air Flow	Air Flow	Lifetime @ Temp.	Termination	Ingress Protection	Features	Current Rating (Amps)	Operating Temperature [Max]
ebm-papst Inc. 4118NH6	8400 RPM	62 W	73 dB(A)	119 mm	119 mm	Aluminum	0.86 lb	390.09 g	CSA UL VDE	Ball	Fiberglass Reinforced Nylon Polyamide (PA)	Tubeaxial	38 mm	48 VDC	-20 °C	-20 C	65 °C	65 °C	60 V	36 VDC	7.25 mł/min	259 CFM	62500 Hrs	2 Wire Leads
ebm-papst Inc. 4118N/2H4PU	6800 RPM	34 W	67 dB	119 mm	119 mm	Aluminum	0.882 lb	400.07 g	UL	Ball	Fiberglass Reinforced Nylon Polyamide (PA)	Tubeaxial	38 mm	48 VDC	-20 °C	-20 C	65 °C	65 °C	60 V	36 VDC				4 Wire Leads	IP68 - Dust Tight Waterproof	PWM Control Speed Sensor (Tach)
ebm-papst Inc. 4118N/2HH-187	5000 RPM	14.7 W	64 dB(A)	119 mm	119 mm	Metal	0.86 lb	390.09 g		Ball		Tubeaxial	38 mm	48 VDC	-20 °C	-20 C	50 °C	50 °C	52 VDC	44 VDC	4.48 m³/min	160 CFM	70000 Hrs	3 Wire Leads		Speed Sensor (Tach)	0.305 A
ebm-papst Inc. 4118NHU-294	4400 RPM	11 W	56 dB	119 mm	119 mm	Aluminum	0.882 lb	400.07 g	UL	Ball	Fiberglass Reinforced Nylon Polyamide (PA)	Tubeaxial	38 mm	48 VDC	-20 °C	-20 C	55 °C	55 °C	56 VDC	36 VDC	3.92 mł/min	140 CFM		2 Wire Leads	IP68 - Dust Tight Waterproof
ebm-papst Inc. 4118N/2H3P-344	6000 RPM	20 W	67 dB	119 mm	119 mm	Aluminum				Ball	Fiberglass Reinforced Nylon Polyamide (PA)	Tubeaxial	38 mm	48 VDC	-20 °C	-20 C	65 °C	65 °C	60 V	36 VDC	5.1 m³/min	182 CFM	65000 Hrs	4 Wire Leads		PWM Control Speed Sensor (Tach)
ebm-papst Inc. 4118NH5	7500 RPM	45 W	70 dB(A)	119 mm	119 mm	Aluminum	0.86 lb	390.09 g	CSA UL VDE	Ball	Fiberglass Reinforced Nylon Polyamide (PA)	Tubeaxial	38 mm	48 VDC					60 V	36 VDC	6.43 m³/min	229.5 CFM	62500 Hrs	2 Wire Leads
ebm-papst Inc. 4118N/2H7P	9500 RPM	90 W	76 dB(A)	119 mm	119 mm	Aluminum	0.937 lb	425.02 g		Ball	Fiberglass Reinforced Nylon Polyamide (PA)	Tubeaxial	38 mm	48 VDC	-20 °C	-20 C		75 ░C	60 V	36 VDC	8.23 m³/min	294 CFM	57500 Hrs	4 Wire Leads		PWM Control Speed Sensor (Tach)		75 °C
ebm-papst Inc. 4118NHHU-302	5000 RPM	12 W	60 dB(A)	119 mm	119 mm	Aluminum				Ball	Fiberglass Reinforced Nylon Polyamide (PA)	Tubeaxial	38 mm	48 VDC					60 V	36 VDC	4.28 m³/min	153 CFM		2 Wire Leads
ebm-papst Inc. 4118NH3P-282	6000 RPM	24 W	64 dB(A)	119 mm	119 mm	Metal	0.26 lb	117.93 g	CE CSA UL VDE	Ball	Plastic	Tubeaxial	38 mm	48 VDC	-20 °C	-20 C	65 °C	65 °C	60 V	36 VDC	5.11 m³/min	182.4 CFM	65000 Hrs	3 Position Rectangular Connector		PWM Control	0.5 A
ebm-papst Inc. 4118NH4	6800 RPM	28 W	67 dB	119 mm	119 mm	Aluminum	0.86 lb	390.09 g		Ball	Fiberglass Reinforced Nylon Polyamide (PA)	Tubeaxial	38 mm	48 VDC	-20 °C	-20 C	65 °C	65 °C	60 V	36 VDC	5.85 m³/min	208.9 CFM	62500 Hrs	2 Wire Leads

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

4118N Series

Fan Tubeaxial 48VDC Square - 119mm L x 119mm H Ball 160.0 CFM (4.48m³/min) 3 Wire Leads
