908-43001

Active

Amphenol RF

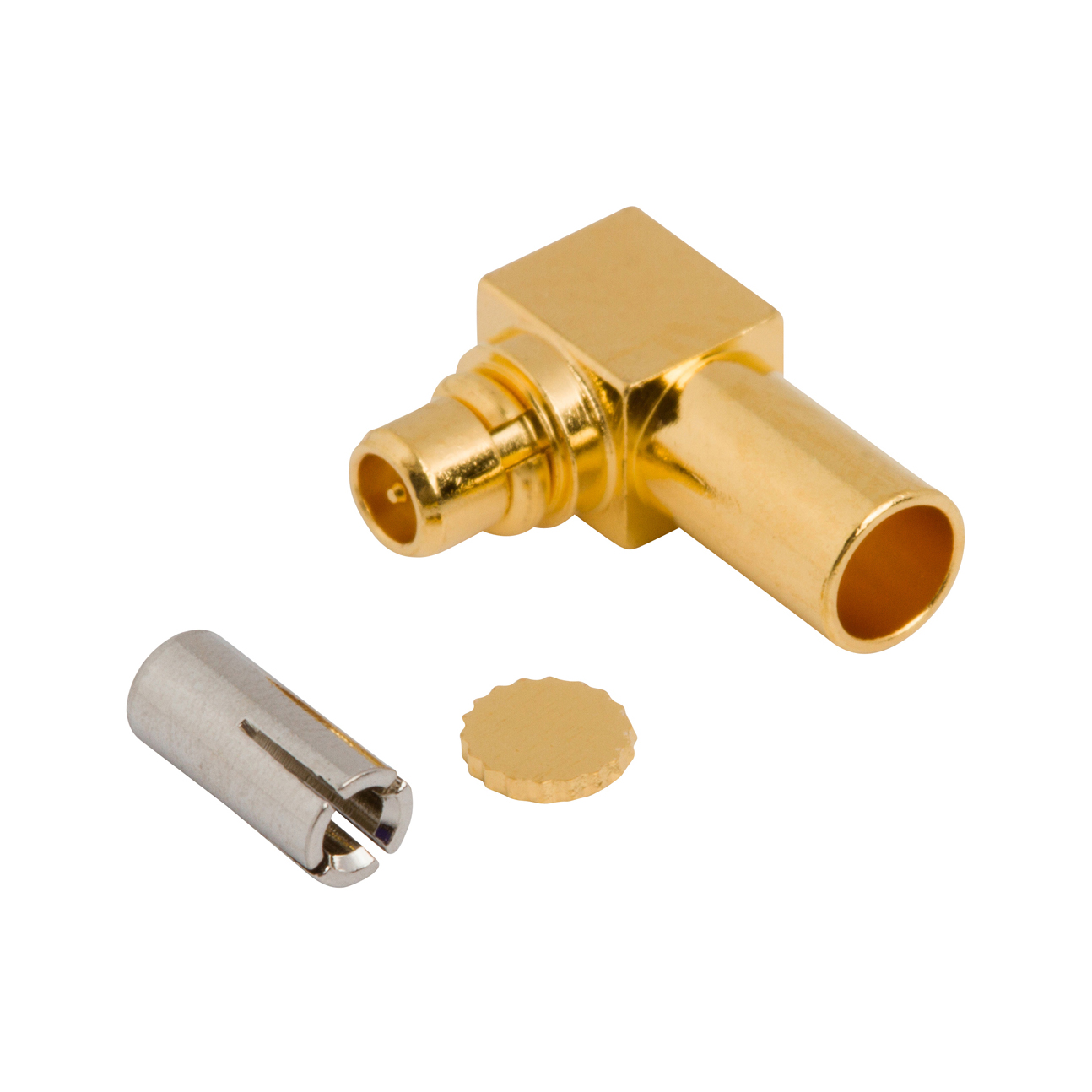

MMCX RIGHT ANGLE CRIMP PLUG FOR

Search across all available documentation for this part.

Active

Amphenol RF

MMCX RIGHT ANGLE CRIMP PLUG FOR

Technical Specifications

Parameters and characteristics for this part

Specification	908-43001

Body Finish	Gold
Body Material	Brass
Cable Group	1.13mm Coaxial Cable
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	MMCX
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Gold
Impedance	50 Ohms
Includes	Ferrule, Insulator, Connector, End Cap
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp

Part	Contact Termination	Center Contact Plating	Fastening Type	Impedance	Center Contact Material	Housing Color	Body Finish	Mounting Type	Mating Cycles	Body Material	Connector Type	Shield Termination	Frequency - Max [Max]	Includes	Cable Group	Number of Ports	Operating Temperature [Min]	Operating Temperature [Max]	Connector Style	Dielectric Material	Cable Group
Amphenol RF 908-43200	Solder	Gold	Snap-On	50 Ohms	Brass	Gold	Gold	Free Hanging (In-Line) Right Angle	500	Brass	Male Pin Plug	Crimp	6000 MHz	1 Connector 1 End Cap 1 Ferrule	178A 178B 196 196A M17/93-RG178 RG-178	1	-65 ░C	165 °C	MMCX	Polytetrafluoroethylene (PTFE)
Amphenol RF 908-43300	Solder	Gold	Snap-On	50 Ohms	Brass	Gold	Gold	Free Hanging (In-Line) Right Angle	500	Brass	Male Pin Plug	Crimp	6000 MHz	1 Connector 1 End Cap 1 Ferrule	188 188A 316 LMR-100 M17/119-RG174 RG-174	1	-65 ░C	165 °C	MMCX	Polytetrafluoroethylene (PTFE)
Amphenol RF 908-43001	Solder	Gold	Snap-On	50 Ohms	Brass	Gold	Gold	Free Hanging (In-Line) Right Angle	500	Brass	Male Pin Plug	Crimp	6000 MHz	Connector End Cap Ferrule Insulator	1.13mm Coaxial Cable	1	-65 ░C	165 °C	MMCX	Polytetrafluoroethylene (PTFE)
Amphenol RF 908-43600	Solder	Gold	Snap-On	50 Ohms	Brass	Gold	Gold	Free Hanging (In-Line) Right Angle	500	Brass	Male Pin Plug	Solder	6000 MHz		Semi Rigid	1	-65 ░C	165 °C	MMCX	Polytetrafluoroethylene (PTFE)	0.047 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

MMCX Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
