TSCDRRN001PGUCV

Obsolete

Honeywell Sensing and Productivity Solutions

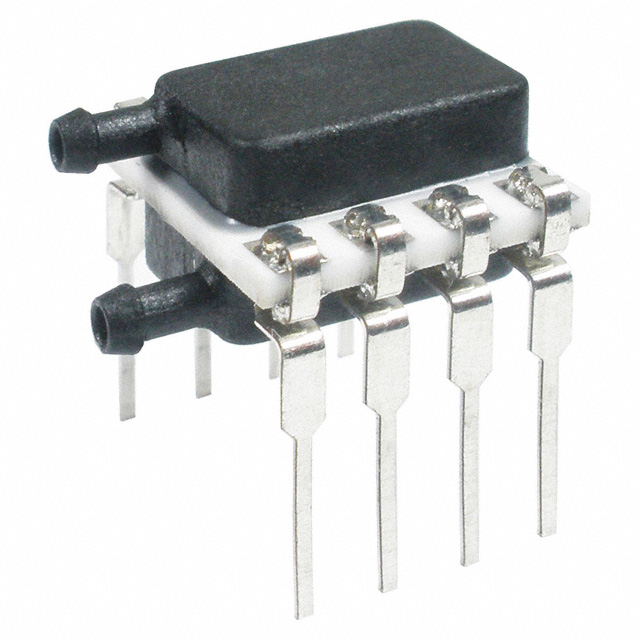

SENSOR 1PSIG 0.08" .0075V 8DIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet TSC, NSC Series Install Instr +1

TSCDRRN001PGUCV

Obsolete

Honeywell Sensing and Productivity Solutions

SENSOR 1PSIG 0.08" .0075V 8DIP

Deep-Dive with AI

DocumentsDatasheet TSC, NSC Series Install Instr +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TSCDRRN001PGUCV

Accuracy	0.2 %
Applications	Board Mount
Features	Temperature Compensated
Maximum Pressure [Max]	12.7 PSI
Maximum Pressure [Max]	87.56 kPa
Mounting Type	Through Hole
Operating Pressure	6.89 kPa
Operating Pressure	1 PSI
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output	5 V
Output [Max]	7.5 mV
Output [Min]	0 mV
Output Type	Wheatstone Bridge
Package / Case	Dual Ports, Same Side, 8-DIP
Package / Case	13.3 mm
Package / Case	0.524 "
Port Size	1.93 mm
Port Size	Tube, Male, Dual
Port Size	0.08 "
Port Style	Barbed
Pressure Type	Vented Gauge
Supplier Device Package	8-DIP
Termination Style	PC Pin
Voltage - Supply [Max]	12 V
Voltage - Supply [Min]	1.5 V

TSCDRRN Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Port Style	Maximum Pressure	Maximum Pressure	Accuracy	Package / Case	Package / Case	Package / Case	Output Type	Features	Applications	Operating Pressure	Operating Pressure	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Supplier Device Package	Port Size	Port Size	Port Size	Pressure Type	Termination Style	Output [Max]	Output	Maximum Pressure [Max]	Maximum Pressure [Max]	Maximum Pressure	Maximum Pressure	Output
Honeywell Sensing and Productivity Solutions TSCDRRN005PDUCV	85 °C	-40 °C	Barbed	±30PSI	±206.84kPa	0.15 %	8-DIP Dual Ports Same Side	13.3 mm	0.524 "	Wheatstone Bridge	Temperature Compensated	Board Mount	5 PSI	34.47 kPa	Through Hole	12 V	1.5 V	8-DIP	1.93 mm	Dual Male Tube	0.08 "	Differential	PC Pin	50 mV	5 V
Honeywell Sensing and Productivity Solutions TSCDRRN001PGUCV	85 °C	-40 °C	Barbed			0.2 %	8-DIP Dual Ports Same Side	13.3 mm	0.524 "	Wheatstone Bridge	Temperature Compensated	Board Mount	1 PSI	6.89 kPa	Through Hole	12 V	1.5 V	8-DIP	1.93 mm	Dual Male Tube	0.08 "	Vented Gauge	PC Pin	7.5 mV	5 V	12.7 PSI	87.56 kPa
Honeywell Sensing and Productivity Solutions TSCDRRN001PDUCV	85 °C	-40 °C	Barbed			0.2 %	8-DIP Dual Ports Same Side	13.3 mm	0.524 "	Wheatstone Bridge	Temperature Compensated	Board Mount			Through Hole	12 V	1.5 V	8-DIP	1.93 mm	Dual Male Tube	0.08 "	Differential	PC Pin	15 mV				12.5 PSI	86.18 kPa
Honeywell Sensing and Productivity Solutions TSCDRRN015PDUCV	85 °C	-40 °C	Barbed			0.15 %	8-DIP Dual Ports Same Side	13.3 mm	0.524 "	Wheatstone Bridge	Temperature Compensated	Board Mount	15 PSI	103.42 kPa	Through Hole	12 V	1.5 V	8-DIP	1.93 mm	Dual Male Tube	0.08 "	Differential	PC Pin	52.5 mV				60 PSI	413.69 kPa	5 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

TSCDRRN Series

Pressure Sensor 1PSI (6.89kPa) Vented Gauge Male - 0.08" (1.93mm) Tube, Dual 0 mV ~ 7.5 mV (5V) 8-DIP (0.524", 13.30mm), Dual Ports, Same Side
