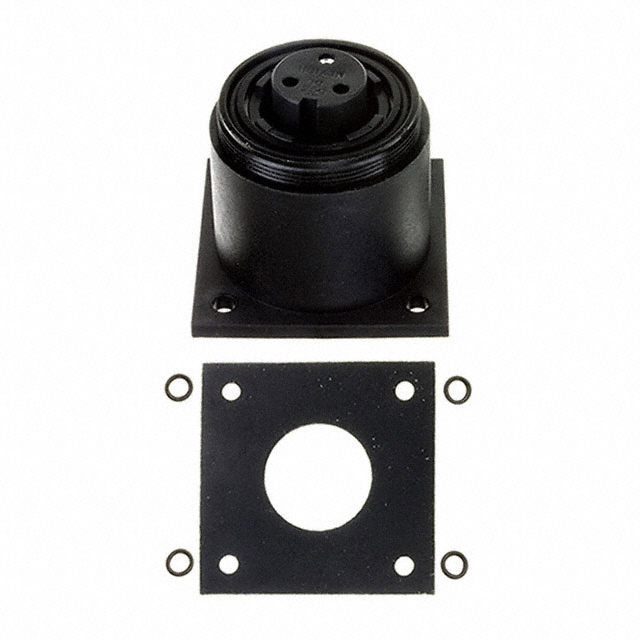

PX0756/S - PX0756/S

PX0756/S

Active
BULGIN LIMITED

CIRCULAR CONNECTOR, BUCCANEER STANDARD SERIES, RECEPTACLE, 3, SOCKET, SCREW, PANEL ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet ENDatasheet
PX0756/S - PX0756/S

PX0756/S

Active
BULGIN LIMITED

CIRCULAR CONNECTOR, BUCCANEER STANDARD SERIES, RECEPTACLE, 3, SOCKET, SCREW, PANEL ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsTechnical Data Sheet ENDatasheet

Technical Specifications

Parameters and characteristics for this part

SpecificationPX0756/S
ColorBlack
Connector TypeReceptacle, Female Sockets
Contact Finish - MatingNickel
Contact MaterialBrass
Current Rating (Amps)10 A
Ingress ProtectionIP68, IP69K
Insert MaterialNylon, Polyamide (PA)
Material Flammability RatingUL94 HB
Mounting FeatureFlange
Number of Positions [custom]3
Number of Positions [custom]1
Number of Positions [custom]2
Operating Temperature [Max]70 °C
Operating Temperature [Min]-20 C
OrientationKeyed
Primary MaterialPlastic
Shell MaterialNylon, Glass Filled, Polyamide (PA)
ShieldingUnshielded
TerminationScrew
Voltage Rating277 VAC/DC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 15.42
10$ 14.68
NewarkEach 1$ 35.42
10$ 32.18
25$ 29.78
50$ 28.42
100$ 26.75
250$ 25.29
500$ 23.30

Description

General part information

PX0756 Series

3 (2 Power + PE) Position Circular Connector Receptacle, Female Sockets Screw
