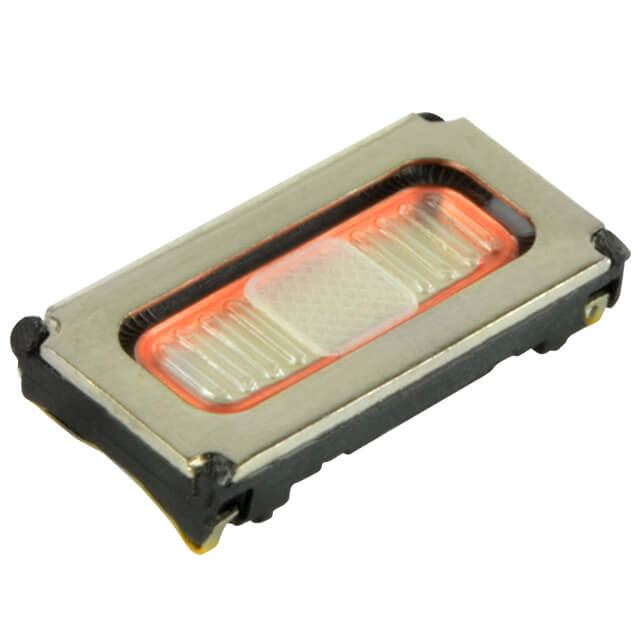

CMR-12062S-67

Active

CUI Devices

SPEAKERS DYNAMIC NEODYMIUM IRON BORON 550HZ 0.03W 117DBA 32OHM RECTANGULAR IP67 SPRING CONTACT

Search across all available documentation for this part.

Active

CUI Devices

SPEAKERS DYNAMIC NEODYMIUM IRON BORON 550HZ 0.03W 117DBA 32OHM RECTANGULAR IP67 SPRING CONTACT

Technical Specifications

Parameters and characteristics for this part

Specification	CMR-12062S-67

Efficiency - dBA	117 dBA
Efficiency - Type	Sound Pressure Level (SPL)
Frequency - Self Resonant	450 Hz
Frequency Range [Max]	7 kHz
Frequency Range [Min]	300 Hz
Height - Seated (Max) [Max] [z]	2 mm
Height - Seated (Max) [Max] [z]	0.079 in
Impedance	32 Ohms
Ingress Protection	IP67 - Dust Tight, Waterproof
Material - Cone	Polyester, Polyethylene Terephthalate (PET)
Material - Magnet	Nd-Fe-B
Port Location	Top
Power - Max [Max]	30 mW
Power - Rated	20 mW
Shape	Rectangular
Size / Dimension [x]	0.472 in
Size / Dimension [x]	12 mm
Size / Dimension [y]	0.236 in
Size / Dimension [y]	6 mm
Technology	Magnetic
Termination	Spring Type
Type	Receiver

Part	Material - Magnet	Power - Max [Max]	Frequency - Self Resonant	Frequency Range [Max]	Frequency Range [Min]	Efficiency - Type	Power - Rated	Technology	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Termination	Material - Cone	Shape	Ingress Protection	Impedance	Type	Efficiency - dBA	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Port Location
CUI Devices CMR-12062S-67	Nd-Fe-B	30 mW	450 Hz	7 kHz	300 Hz	Sound Pressure Level (SPL)	20 mW	Magnetic	0.472 in	0.236 in	6 mm	12 mm	Spring Type	Polyester Polyethylene Terephthalate (PET)	Rectangular	IP67 - Dust Tight Waterproof	32 Ohms	Receiver	117 dBA	2 mm	0.079 in	Top

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

32 Ohms Receiver Speaker 20 mW 300 Hz ~ 7 kHz Top Rectangular
