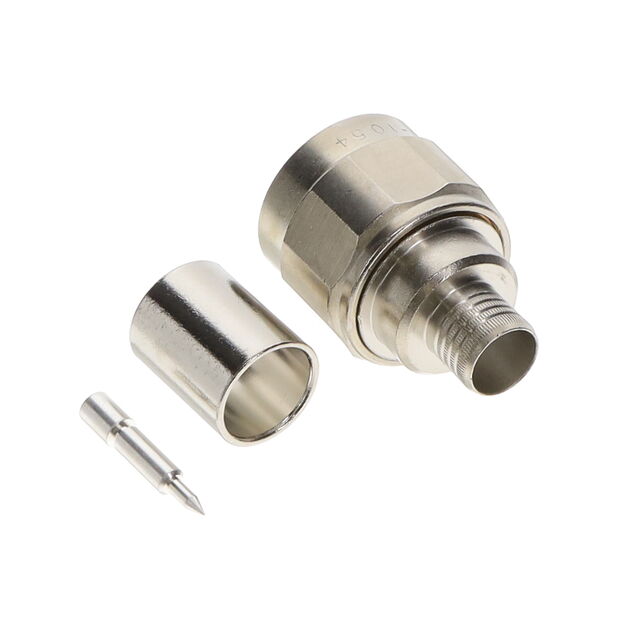

082-340-1054

Active

Amphenol RF

CONN N PLUG STR 50 OHM CRIMP

Search across all available documentation for this part.

Active

Amphenol RF

CONN N PLUG STR 50 OHM CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	082-340-1054

Body Finish	Nickel
Body Material	Brass
Cable Group	LMR-400, Belden 9913, Belden 9914
Center Contact Material	Brass
Center Contact Plating	Silver
Connector Style	N Type
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Ingress Protection	Weatherproof
Insertion Loss	0.15 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	1500 V

Part	Connector Style	Ingress Protection	Cable Group	Mounting Type	Contact Termination	Operating Temperature [Min]	Operating Temperature [Max]	Number of Ports	Insertion Loss	Voltage Rating	Frequency - Max [Max]	Shield Termination	Body Material	Body Finish	Center Contact Plating	Center Contact Material	Dielectric Material	Housing Color	Mating Cycles	Impedance	Connector Type
Amphenol RF 082-340-1054	N Type	Weatherproof	Belden 9913 Belden 9914 LMR-400	Free Hanging (In-Line)	Crimp	-65 ░C	165 °C	1	0.15 dB	1500 V	11 GHz	Crimp	Brass	Nickel	Silver	Brass	Polytetrafluoroethylene (PTFE)	Silver	500	50 Ohms	Male Pin Plug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

N Type Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
