RPM23B7

Active

SQUARE D BY SCHNEIDER ELECTRIC

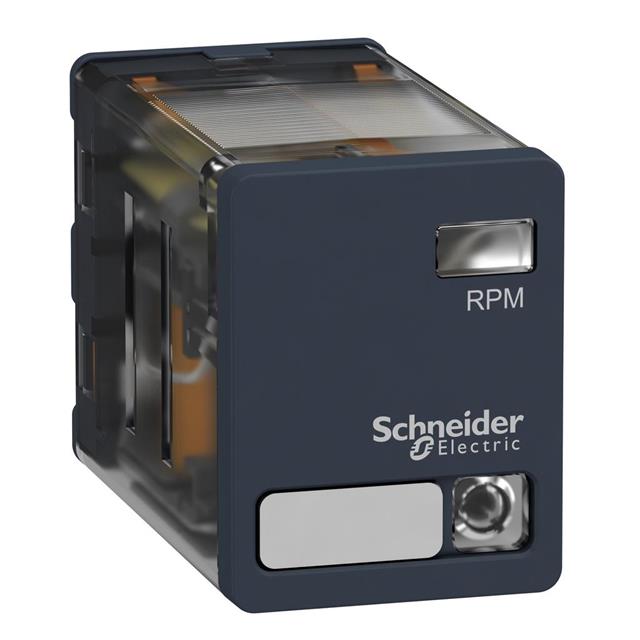

POWER RELAY, DPDT, 24 VAC, 15 A, ZELIO RPM SERIES, SOCKET

Search across all available documentation for this part.

Active

SQUARE D BY SCHNEIDER ELECTRIC

POWER RELAY, DPDT, 24 VAC, 15 A, ZELIO RPM SERIES, SOCKET

Technical Specifications

Parameters and characteristics for this part

Part	Coil Current	Contact Material	Must Release Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Relay Type	Load - Max Switching	Release Time	Termination Style	Switching Voltage	Approval Agency	Features	Contact Form	Coil Resistance	Operate Time	Coil Type	Contact Rating (Current)	Coil Voltage	Must Operate Voltage
SQUARE D BY SCHNEIDER ELECTRIC RPM23B7	135.6 mA	Silver Nickel (AgNi)	3.6 VAC	-40 °C	55 °C	Socketable	General Purpose	420 W 3750 VA	20 ms	Plug In	28 VDC 250 VAC	CSA EAC UL	Lighted Indicator	DPDT (2 Form C)	177 Ohms	20 ms	Non Latching	15 A	24 VAC	19.2 VAC
SQUARE D BY SCHNEIDER ELECTRIC RPM23FD	8.2 mA	Silver Nickel (AgNi)	11 VDC	-40 °C	55 °C	Socketable	General Purpose	420 W 3750 VA	20 ms	Plug In	28 VDC 250 VAC	CSA EAC UL	Lighted Indicator	DPDT (2 Form C)	13.44 kOhms	20 ms	Non Latching	15 A	110 VDC	88 VDC
SQUARE D BY SCHNEIDER ELECTRIC RPM23BD	37.5 mA	Silver Nickel (AgNi)	2.4 VDC	-40 °C	55 °C	Socketable	General Purpose	420 W 3750 VA	20 ms	Plug In	28 VDC 250 VAC	CSA EAC UL	Lighted Indicator	DPDT (2 Form C)	640 Ohms	20 ms	Non Latching	15 A	24 VDC	19.2 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay DPDT (2 Form C) 24VAC Coil Socketable
