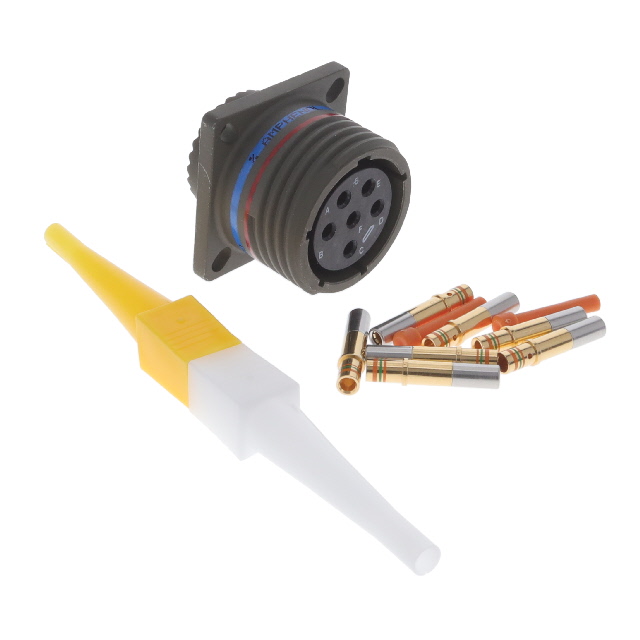

D38999/20JE6SN

Active

Amphenol Aerospace Operations

CONN RCPT FMALE 6POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

D38999/20JE6SN

Active

Amphenol Aerospace Operations

CONN RCPT FMALE 6POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D38999/20JE6SN

Applications	Aviation, Aerospace, Marine, Military
Color	Olive Drab
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Grade	Military
Ingress Protection	Environment Resistant
Mounting Feature	Flange
Number of Positions	6
Operating Temperature [Max]	347 °F
Operating Temperature [Min]	-65 ░C
Orientation	N
Primary Material	Composite
Qualification	MIL-DTL-38999 Series III
Shell Finish	Olive Drab Cadmium
Shell Material	Composite
Shell Size - Insert	17-6
Shell Size, MIL	E
Shielding	Shielded
Termination	Crimp

D38999/20JE Series

Part	Shielding	Ingress Protection	Number of Positions	Shell Finish	Connector Type	Contact Finish - Mating	Grade	Applications	Color	Shell Size - Insert	Qualification	Primary Material	Shell Size, MIL	Mounting Feature	Orientation	Contact Material	Shell Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Housing Color	Contact Shape	Contact Type	Type	Note	Contact Size	Shell Size - Insert [Min]	Shell Size - Insert [Max]
Amphenol Aerospace Operations D38999/20JE6JC	Shielded	Environment Resistant	6	Olive Drab Cadmium	Receptacle Female Sockets	Gold	Military	Aviation Marine Military	Olive Drab	17-6	MIL-DTL-38999 Series III	Composite	E	Flange	C	Copper Alloy	Composite	2.54 çm	100 çin	-65 ░C	347 °F	Crimp
Amphenol Aerospace Operations D38999/20JE6AN	Shielded	Environment Resistant	6	Cadmium	Receptacle Housing		Military			17-6	MIL-DTL-38999 Series III		E	Flange	N		Composite			-65 ░C	347 °F		Olive Drab	Circular	Crimp	For Male Pins	Contacts Not Included	12
Amphenol Aerospace Operations D38999/20JE6SN	Shielded	Environment Resistant	6	Olive Drab Cadmium	Receptacle Female Sockets	Gold	Military	Aerospace Aviation Marine Military	Olive Drab	17-6	MIL-DTL-38999 Series III	Composite	E	Flange	N	Copper Alloy	Composite	1.27 µm	50 µin	-65 ░C	347 °F	Crimp
Amphenol Aerospace Operations D38999/20JE35SN	Shielded	Environment Resistant	55 positions	Olive Drab Cadmium	Receptacle Female Sockets	Gold	Military	Aerospace Aviation Marine Military	Olive Drab		MIL-DTL-38999 Series III	Composite	E	Flange	N	Copper Alloy	Composite	1.27 µm	50 µin	-65 ░C	347 °F	Crimp							17	35
Amphenol Aerospace Operations D38999/20JE6HA	Shielded	Environment Resistant	6	Olive Drab Cadmium	Male Pins Receptacle	Gold	Military	Aerospace Aviation Military	Olive Drab	17-6	MIL-DTL-38999 Series III	Composite	E	Flange	A	Copper Alloy	Composite	2.54 çm	100 çin	-65 ░C	347 °F	Crimp

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 111.82
		10	$ 97.69

Description

General part information

D38999/20JE Series

6 Position Circular Connector Receptacle, Female Sockets Crimp

Documents

Technical documentation and resources
