TB007-508-07BE

Active

CUI Devices

TERMINAL BLOCK, SCREW TYPE, 5.08

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TB007-508-07BE

Active

CUI Devices

TERMINAL BLOCK, SCREW TYPE, 5.08

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TB007-508-07BE

Clamp Material - Plating	Copper Alloy - Nickel Plated
Color	Blue
Contact Material - Plating	Copper Alloy - Tin Plated
Current	16 A
Features	Interlocking (Side)
Mating Orientation	Horizontal with Board
Mounting Type	Through Hole
Number of Levels	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.2 in
Pitch [x]	5.08 mm
Positions Per Level	7
Screw Material - Plating	Steel, Zinc Plated
Screw Thread	M3
Torque - Screw	4.4 Lb-In
Torque - Screw	0.5 Nm
Voltage	300 V
Wire Gauge [Max]	24 AWG
Wire Gauge [Min]	12 AWG
Wire Termination	Screw - Rising Cage Clamp

TB007 Series

Part	Wire Termination	Operating Temperature [Min]	Operating Temperature [Max]	Screw Material - Plating	Features	Current	Positions Per Level	Mounting Type	Clamp Material - Plating	Number of Levels	Torque - Screw	Torque - Screw	Color	Voltage	Wire Gauge [Min]	Wire Gauge [Max]	Pitch [x]	Pitch [x]	Mating Orientation	Screw Thread	Contact Material - Plating
CUI Devices TB007-508-16BE	Screw - Rising Cage Clamp	-40 °C	105 ░C	Steel Zinc Plated	Interlocking (Side)	16 A	16	Through Hole	Copper Alloy - Nickel Plated	1	4.4 Lb-In	0.5 Nm	Blue	300 V	12 AWG	24 AWG	0.2 in	5.08 mm	Horizontal with Board	M3	Copper Alloy - Tin Plated
CUI Devices TB007-508-18BE	Screw - Rising Cage Clamp	-40 °C	105 ░C	Steel Zinc Plated	Interlocking (Side)	16 A	18	Through Hole	Copper Alloy - Nickel Plated	1	4.4 Lb-In	0.5 Nm	Blue	300 V	12 AWG	24 AWG	0.2 in	5.08 mm	Horizontal with Board	M3	Copper Alloy - Tin Plated
CUI Devices TB007-508-21BE	Screw - Rising Cage Clamp	-40 °C	105 ░C	Steel Zinc Plated	Interlocking (Side)	16 A	21	Through Hole	Copper Alloy - Nickel Plated	1	4.4 Lb-In	0.5 Nm	Blue	300 V	12 AWG	24 AWG	0.2 in	5.08 mm	Horizontal with Board	M3	Copper Alloy - Tin Plated
CUI Devices TB007-508-07BE	Screw - Rising Cage Clamp	-40 °C	105 ░C	Steel Zinc Plated	Interlocking (Side)	16 A	7	Through Hole	Copper Alloy - Nickel Plated	1	4.4 Lb-In	0.5 Nm	Blue	300 V	12 AWG	24 AWG	0.2 in	5.08 mm	Horizontal with Board	M3	Copper Alloy - Tin Plated
CUI Devices TB007-508-20BE	Screw - Rising Cage Clamp	-40 °C	105 ░C	Steel Zinc Plated	Interlocking (Side)	16 A	20	Through Hole	Copper Alloy - Nickel Plated	1	4.4 Lb-In	0.5 Nm	Blue	300 V	12 AWG	24 AWG	0.2 in	5.08 mm	Horizontal with Board	M3	Copper Alloy - Tin Plated
CUI Devices TB007-508-04BE	Screw - Rising Cage Clamp	-40 °C	105 ░C	Steel Zinc Plated	Interlocking (Side)	16 A	4	Through Hole	Copper Alloy - Nickel Plated	1	4.4 Lb-In	0.5 Nm	Blue	300 V	12 AWG	24 AWG	0.2 in	5.08 mm	Horizontal with Board	M3	Copper Alloy - Tin Plated
CUI Devices TB007-508-08BE	Screw - Rising Cage Clamp	-40 °C	105 ░C	Steel Zinc Plated	Interlocking (Side)	16 A	8	Through Hole	Copper Alloy - Nickel Plated	1	4.4 Lb-In	0.5 Nm	Blue	300 V	12 AWG	24 AWG	0.2 in	5.08 mm	Horizontal with Board	M3	Copper Alloy - Tin Plated
CUI Devices TB007-508-02BE	Screw - Rising Cage Clamp	-40 °C	105 ░C	Steel Zinc Plated	Interlocking (Side)	16 A	2	Through Hole	Copper Alloy - Nickel Plated	1	4.4 Lb-In	0.5 Nm	Blue	300 V	12 AWG	24 AWG	0.2 in	5.08 mm	Horizontal with Board	M3	Copper Alloy - Tin Plated
CUI Devices TB007-508-09BE	Screw - Rising Cage Clamp	-40 °C	105 ░C	Steel Zinc Plated	Interlocking (Side)	16 A	9	Through Hole	Copper Alloy - Nickel Plated	1	4.4 Lb-In	0.5 Nm	Blue	300 V	12 AWG	24 AWG	0.2 in	5.08 mm	Horizontal with Board	M3	Copper Alloy - Tin Plated
CUI Devices TB007-508-05BE	Screw - Rising Cage Clamp	-40 °C	105 ░C	Steel Zinc Plated	Interlocking (Side)	16 A	5	Through Hole	Copper Alloy - Nickel Plated	1	4.4 Lb-In	0.5 Nm	Blue	300 V	12 AWG	24 AWG	0.2 in	5.08 mm	Horizontal with Board	M3	Copper Alloy - Tin Plated

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 1.72
		10	$ 1.21
		25	$ 1.13
		50	$ 1.02
		100	$ 1.02
		250	$ 0.86
		665	$ 0.81
		1330	$ 0.72
		5320	$ 0.59

Description

General part information

TB007 Series

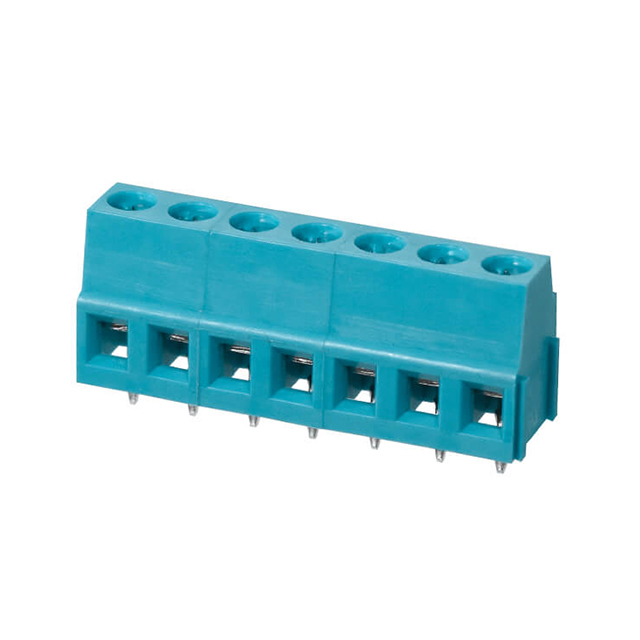

7 Position Wire to Board Terminal Block Horizontal with Board 0.200" (5.08mm) Through Hole
