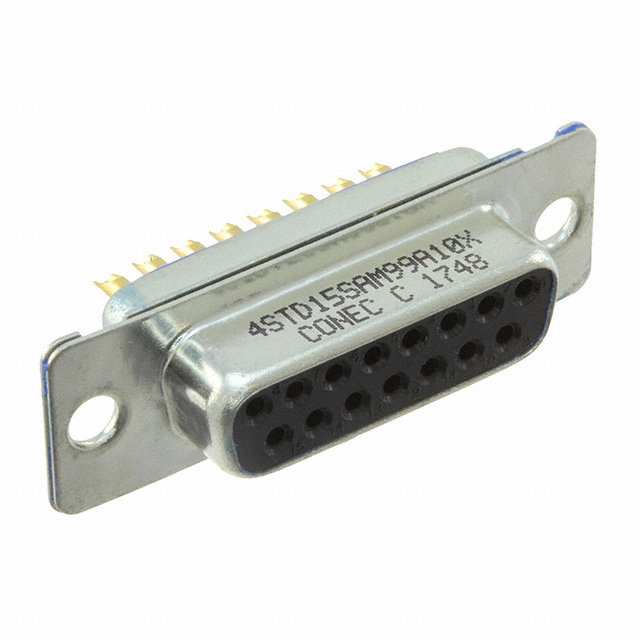

4STD15SAM99A10X

Active

Amphenol CONEC

CONN D-SUB RCPT 15POS SLDR CUP

Search across all available documentation for this part.

Active

Amphenol CONEC

CONN D-SUB RCPT 15POS SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	4STD15SAM99A10X

Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	7.5 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Flange Feature	Housing/Shell (Unthreaded)
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	15
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-25 °C
Shell Material, Finish	Tin Plated, Copper Alloy
Shell Size, Connector Layout	2
Voltage Rating	125 VDC
Wire Gauge	20 AWG

Part	Current Rating (Amps)	Wire Gauge	Material Flammability Rating	Flange Feature	Number of Positions	Connector Type	Color	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size, Connector Layout	Shell Material, Finish	Dielectric Material	Number of Rows	Voltage Rating	Contact Type	Contact Finish Thickness	Contact Material	Connector Style	Mounting Type	Ingress Protection	Contact Finish
Amphenol CONEC 4STD15SAM99A10X	7.5 A	20 AWG	UL94 V-0	Housing/Shell (Unthreaded)	15	Receptacle Female Sockets	Black	-25 °C	105 ░C	2	Copper Alloy Tin Plated	Polybutylene Terephthalate (PBT) Glass Filled	2	125 VDC	Signal	Flash	Copper Alloy	D-Sub	Free Hanging (In-Line)	IP67 - Dust Tight Waterproof	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

15 Position D-Sub Receptacle, Female Sockets Connector
