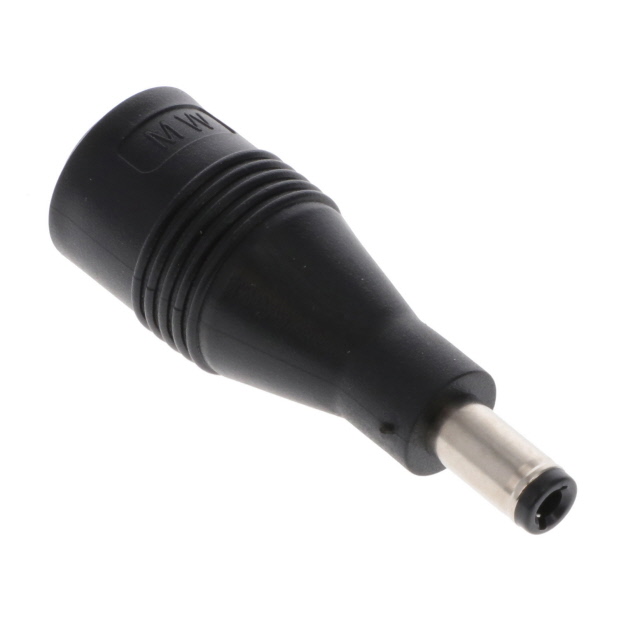

DC PLUG-R7BF-P1M

Active

MEAN WELL USA Inc.

BARREL ADAPTER KPJX-CM-4S TO 2.5

Deep-Dive with AI

Search across all available documentation for this part.

DC PLUG-R7BF-P1M

Active

MEAN WELL USA Inc.

BARREL ADAPTER KPJX-CM-4S TO 2.5

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DC PLUG-R7BF-P1M

Color	Black
Convert From (Adapter End)	Circular Connector, Male Pins, 4 Pos
Convert To (Adapter End)	2.5mm DC Plug

DC PLUG Series

Part	Shielding	Mounting Type	Housing Color	Number of Positions/Contacts	Gender	Convert To (Adapter End)	Convert To (Adapter End) [diameter]	Convert From (Adapter End) [custom]	Convert From (Adapter End) [custom]	Conversion Type	Insulation Color	Connector Style	Convert From (Adapter End)	Color	Convert From (Adapter End) [diameter]	Connector Type [diameter]	Connector Type	Length	Length	Cable Type
MEAN WELL USA Inc. DC PLUG-P1J-P3C	Unshielded	Free Hanging (In-Line)	Black	2 Conductors	Female to Male	Plug	1.7 mm 4.8 mm	2.1 mm	5.5 mm	Same Series	Black	Power DC Adapter
MEAN WELL USA Inc. DC PLUG-R7BF-P1M						2.5mm DC Plug							Circular Connector Male Pins 4 Pos	Black
MEAN WELL USA Inc. DC PLUG-P1M-P1J	Unshielded	Free Hanging (In-Line)	Black	2 Conductors	Female to Male	Plug	2.1 mm 5.5 mm			Same Series	Black	Power DC Adapter	Jack		2.5 mm 5.5 mm
MEAN WELL USA Inc. DC PLUG-P1M-P1JR	Unshielded	Free Hanging (In-Line) Right Angle	Black	2 Conductors	Female to Male	Plug	2.1 mm 5.5 mm			Same Series	Black	Power DC Adapter	Jack		2.5 mm 5.5 mm
MEAN WELL USA Inc. DC PLUG-P1J-P1L	Unshielded	Free Hanging (In-Line)	Black	2 Conductors	Female to Male	Plug	2.5 mm 5.5 mm	2.1 mm	5.5 mm	Same Series	Black	Power DC Adapter
MEAN WELL USA Inc. DC PLUG-P1J-P3A	Unshielded	Free Hanging (In-Line)	Black	2 Conductors	Female to Male	Plug	0.7 mm 2.35 mm	2.1 mm	5.5 mm	Same Series	Black	Power DC Adapter
MEAN WELL USA Inc. DC PLUG-P1J-P1JR	Unshielded	Free Hanging (In-Line) Right Angle	Black	2 Conductors	Female to Male	Plug	2.1 mm 5.5 mm	2.1 mm	5.5 mm	Same Series	Black	Power DC Adapter
MEAN WELL USA Inc. DC PLUG-P1J-P1IR	Unshielded	Free Hanging (In-Line) Right Angle	Black	2 Conductors	Female to Male	Plug	2.1 mm 5.5 mm	2.1 mm	5.5 mm	Same Series	Black	Power DC Adapter
MEAN WELL USA Inc. DC PLUG-P1J-P1M	Unshielded	Free Hanging (In-Line)	Black	2 Conductors	Female to Male	Plug	2.5 mm 5.5 mm	2.1 mm	5.5 mm	Same Series	Black	Power DC Adapter
MEAN WELL USA Inc. DC PLUG-P1J-R7B	Unshielded													Black		2.1 mm 5.5 mm	Barrel Plug - 2.1mm ID 5.5mm OD to Circular 04 pos Male	12.2 mm	0.04 ft	Round

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.18
		5	$ 2.01
		10	$ 1.94

Description

General part information

DC PLUG Series

Adapter Connector Circular Connector, Male Pins, 4 Pos To 2.5mm DC Plug Black

Documents

Technical documentation and resources

No documents available
