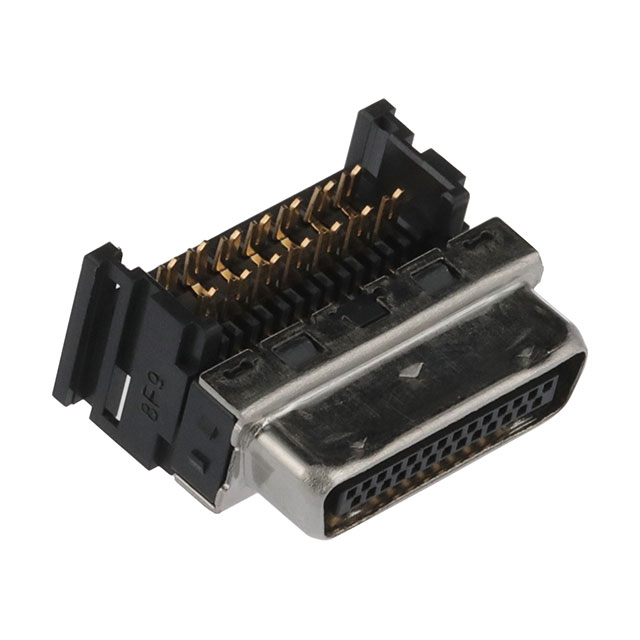

DH30B-27S
ActiveHirose Electric USA, Inc.
IDC PLUG 27POS
Deep-Dive with AI
Search across all available documentation for this part.
DH30B-27S
ActiveHirose Electric USA, Inc.
IDC PLUG 27POS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DH30B-27S |
|---|---|
| Connector Style | Outer Shroud Contacts |
| Connector Type | Receptacle |
| Contact Finish | Gold |
| Contact Finish Thickness | 7.87 µin |
| Contact Finish Thickness | 0.2 µm |
| Features | Shielded |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 27 |
| Number of Rows | 2 |
| Termination | IDC |
| Type | SCSI |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 10.81 | |
| 10 | $ 8.30 | |||
| 25 | $ 7.49 | |||
| 40 | $ 7.12 | |||
| 80 | $ 6.61 | |||
| 230 | $ 5.93 | |||
| 440 | $ 5.56 | |||
| 945 | $ 5.16 | |||
Description
General part information
DH30B Series
27 Position Receptacle Connector SCSI Free Hanging (In-Line) IDC
