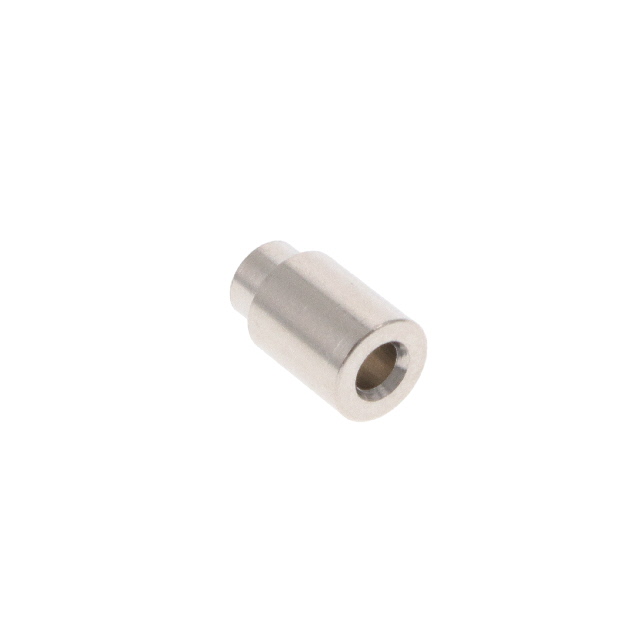

1534-B-4-B-5
ActiveRAF Electronic Hardware
1/4 RD X 5/16 X .115 ID
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1534-B-4-B-5 |
|---|---|
| Between Board Height | 7.94 mm |
| Between Board Height | 0.313 " |
| Diameter - Inside [diameter] | 0.115 in |
| Diameter - Inside [diameter] | 2.92 mm |
| Diameter - Outside [diameter] | 6.35 mm |
| Diameter - Outside [diameter] | 0.25 in |
| Diameter - Outside [diameter] | 0.25 in |
| Gender | Swage, Female |
| Length - Overall [x] | 0.418 in |
| Length - Overall [x] | 10.61 mm |
| Material | Brass |
| Plating | Nickel |
| Threaded/Unthreaded | Unthreaded |
| Type | Round Spacer |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.30 | |
| 5 | $ 1.08 | |||
| 10 | $ 0.97 | |||
| 25 | $ 0.86 | |||
| 50 | $ 0.78 | |||
| 100 | $ 0.76 | |||
| 250 | $ 0.73 | |||
| 500 | $ 0.71 | |||
| 1000 | $ 0.65 | |||
Description
General part information
1534-B Series
Round Spacer Unthreaded Brass 0.313" (7.94mm)
