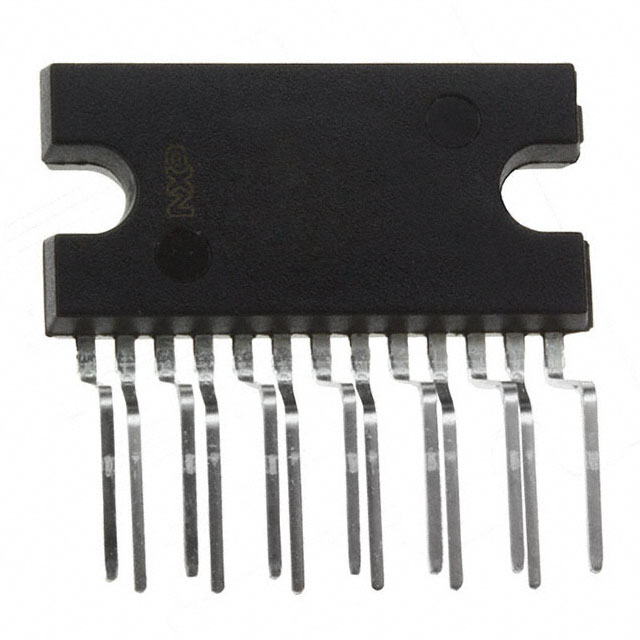

TDA8563Q/N2/S10,11

Obsolete

Freescale Semiconductor - NXP

IC AMP CLASS B STEREO 55W 13PDBS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TDA8563Q/N2/S10,11

Obsolete

Freescale Semiconductor - NXP

IC AMP CLASS B STEREO 55W 13PDBS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TDA8563Q/N2/S10,11

Features	Mute, Short-Circuit and Thermal Protection, Depop, Standby
Max Output Power x Channels @ Load	2 Ohm, 55 W, 2 channels
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Type	2-Channel (Stereo)
Package / Case	13-SIP Formed Leads
Supplier Device Package	13-PDBS
Type	Class B
Voltage - Supply [Max]	18 V
Voltage - Supply [Min]	6 V

TDA856 Series

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Type	Package / Case	Features	Max Output Power x Channels @ Load	Supplier Device Package	Mounting Type	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case [x]	Max Output Power x Channels @ Load [custom]	Max Output Power x Channels @ Load [custom]
Freescale Semiconductor - NXP TDA8566Q/N2,112	18 V	6 V	Class B	17-SIP Formed Leads	Depop Differential Inputs Mute Short-Circuit and Thermal Protection Standby	2 Ohm 2 channels 55 W	DBS17P	Through Hole	2-Channel (Stereo)	85 °C	-40 °C
Freescale Semiconductor - NXP TDA8566TH/N2S,112	18 V	6 V	Class B	20-SOIC (0.433" 11.00mm Width) Exposed Pad	Depop Differential Inputs Mute Short-Circuit and Thermal Protection Standby	2 Ohm 2 channels 55 W	20-HSOP	Surface Mount	2-Channel (Stereo)	85 °C	-40 °C	11 mm
Freescale Semiconductor - NXP TDA8563Q/N2/S10,11	18 V	6 V	Class B	13-SIP Formed Leads	Depop Mute Short-Circuit and Thermal Protection Standby	2 Ohm 2 channels 55 W	13-PDBS	Through Hole	2-Channel (Stereo)	85 °C	-40 °C
Freescale Semiconductor - NXP TDA8566TH/N2C,118	18 V	6 V	Class B	20-SOIC (0.433" 11.00mm Width) Exposed Pad	Depop Differential Inputs Mute Short-Circuit and Thermal Protection Standby	2 Ohm 2 channels 55 W	20-HSOP	Surface Mount	2-Channel (Stereo)	85 °C	-40 °C	11 mm
Freescale Semiconductor - NXP TDA8566TH1/N2S,118	18 V	6 V	Class B	24-BSOP Exposed Pad	Depop Differential Inputs Mute Short-Circuit and Thermal Protection Standby	2 Ohm 2 channels 55 W	24-HSOP	Surface Mount	2-Channel (Stereo)	85 °C	-40 °C	0.433 in 11 mm
Freescale Semiconductor - NXP TDA8561Q/N3C,112	18 V	6 V	Class B	17-SIP Formed Leads	Depop Differential Inputs Mute Short-Circuit and Thermal Protection Standby	12 W 24 W	DBS17P	Through Hole	2-Channel (Stereo) 4-Channel (Quad)	85 °C	-40 °C
Freescale Semiconductor - NXP TDA8569Q/N1C,112	18 V	6 V	Class B	23-SIP Formed Leads	Depop Mute Short-Circuit and Thermal Protection Standby	40 W	DBS23P	Through Hole	4-Channel (Quad)	85 °C	-40 °C		2 Ohm	4
Freescale Semiconductor - NXP TDA8568Q/N3C,112	18 V	6 V	Class B	23-SIP Formed Leads	Depop Mute Short-Circuit and Thermal Protection Standby		DBS23P	Through Hole	4-Channel (Quad)	85 °C	-40 °C
Freescale Semiconductor - NXP TDA8561Q/N3S,112	18 V	6 V	Class B	17-SIP Formed Leads	Depop Differential Inputs Mute Short-Circuit and Thermal Protection Standby	12 W 24 W	DBS17P	Through Hole	2-Channel (Stereo) 4-Channel (Quad)	85 °C	-40 °C
Freescale Semiconductor - NXP TDA8566TH/N2,518	18 V	6 V	Class B	20-SOIC (0.433" 11.00mm Width) Exposed Pad	Depop Differential Inputs Mute Short-Circuit and Thermal Protection Standby	2 Ohm 2 channels 55 W	20-HSOP	Surface Mount	2-Channel (Stereo)	85 °C	-40 °C	11 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

TDA856 Series

Amplifier IC 2-Channel (Stereo) Class B 13-PDBS

Documents

Technical documentation and resources
