2M801-007-16NF17-85PA

Active

Amphenol Aerospace Operations

2M801 85C 85#23 PIN PLUG OM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

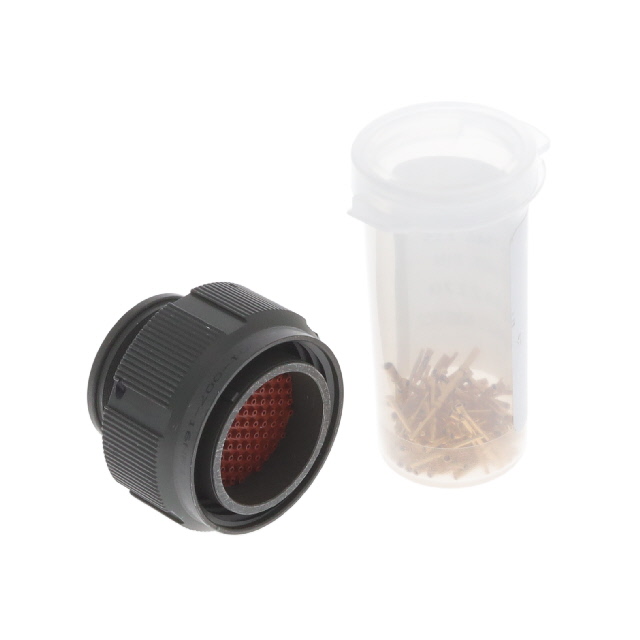

2M801-007-16NF17-85PA

Active

Amphenol Aerospace Operations

2M801 85C 85#23 PIN PLUG OM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2M801-007-16NF17-85PA

Cable Opening [custom]	0.85 in
Cable Opening [custom]	21.59 mm
Color	Olive Drab
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Features	Coupling Nut, Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyphenylene Sulfide (PPS)
Mounting Type	Free Hanging (In-Line)
Number of Positions	85
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-65 ░C
Orientation	A
Primary Material	Metal
Shell Finish	Olive Drab Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert [Max]	85
Shell Size - Insert [Min]	17
Shielding	Shielded
Termination	Crimp

2M801-007 Series

Part	Color	Termination	Shell Finish	Shell Material	Contact Material	Mounting Type	Number of Positions	Cable Opening [custom]	Cable Opening [custom]	Insert Material	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Contact Finish - Mating	Shielding	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Primary Material	Features	Orientation	Cable Opening [diameter]	Cable Opening [diameter]	Number of Positions
Amphenol Aerospace Operations 2M801-007-16NF17-85PA	Olive Drab	Crimp	Olive Drab Cadmium	Aluminum Alloy	Copper Alloy	Free Hanging (In-Line)	85	0.85 in	21.59 mm	Polyphenylene Sulfide (PPS)	IP67 - Dust Tight Waterproof	-65 ░C	150 °C	5 A	85	17	Gold	Shielded	Male Pins Plug	1.27 µm	50 µin	Metal	Backshell Coupling Nut	A
Amphenol Aerospace Operations 2M801-007-16M16-235SA	Silver	Crimp	Electroless Nickel	Aluminum Alloy	Copper Alloy	Free Hanging (In-Line)	35			Polyphenylene Sulfide (PPS)	IP67 - Dust Tight Waterproof	-65 ░C	150 °C	7.5 A	235	16	Gold	Shielded	Female Sockets Plug	1.27 µm	50 µin	Metal	Backshell Coupling Nut	A	20.45 mm	0.805 in
Amphenol Aerospace Operations 2M801-007-26ZNU6-4PA	Black	Crimp	Black Zinc Nickel	Aluminum Alloy	Copper Alloy	Free Hanging (In-Line)	4	0.29 in	7.37 mm	Polyphenylene Sulfide (PPS)	IP67 - Dust Tight Waterproof	-65 ░C	150 °C	5 A	6	4	Gold	Shielded	Male Pins Plug	1.27 µm	50 µin	Metal	Backshell Coupling Nut Self Locking	A
Amphenol Aerospace Operations 2M801-007-16NF9-19PA	Olive Drab	Crimp	Olive Drab Cadmium	Aluminum Alloy	Copper Alloy	Free Hanging (In-Line)		0.5 in	12.7 mm	Polyphenylene Sulfide (PPS)	IP67 - Dust Tight Waterproof	-65 ░C	150 °C	5 A	19	9	Gold	Shielded	Male Pins Plug	1.27 µm	50 µin	Metal	Backshell Coupling Nut	A			16
Amphenol Aerospace Operations 2M801-007-26NF8-28SA	Olive Drab	Crimp	Olive Drab Cadmium	Aluminum Alloy	Copper Alloy	Free Hanging (In-Line)	8	0.445 in	11.3 mm	Polyphenylene Sulfide (PPS)	IP67 - Dust Tight Waterproof	-65 ░C	150 °C	7.5 A	28	8	Gold	Shielded	Female Sockets Plug	1.27 µm	50 µin	Metal	Backshell Coupling Nut Self Locking	A
Amphenol Aerospace Operations 2M801-007-16NF6-7SA	Olive Drab	Crimp	Olive Drab Cadmium	Aluminum Alloy	Copper Alloy	Free Hanging (In-Line)	7	0.29 in	7.37 mm	Polyphenylene Sulfide (PPS)	IP67 - Dust Tight Waterproof	-65 ░C	150 °C	5 A	7	6	Gold	Shielded	Female Sockets Plug	1.27 µm	50 µin	Metal	Backshell Coupling Nut	A
