SPC5777MK0MVA8

Active

Freescale Semiconductor - NXP

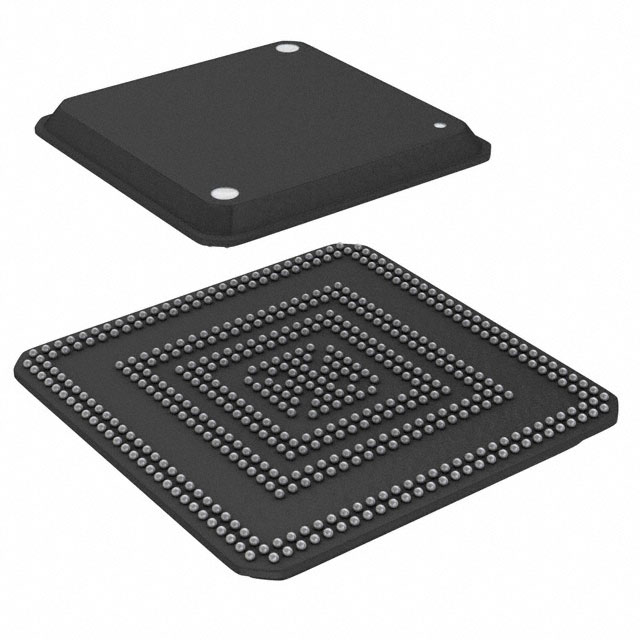

IC MCU 32B 8.64MB FLSH 512TEPBGA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SPC5777MK0MVA8

Active

Freescale Semiconductor - NXP

IC MCU 32B 8.64MB FLSH 512TEPBGA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SPC5777MK0MVA8

Connectivity	PSI, I2C, FlexRay, EBI/EMI, SPI, Ethernet, CANbus, LINbus, UART/USART
Core Processor	e200z7
Core Size	32-Bit Tri-Core
Data Converters	12b SAR, 16b Sigma-Delta
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Oscillator Type	Internal
Package / Case	512-FBGA
Program Memory Size	8.64 MB
Program Memory Type	FLASH
RAM Size	404 K
Speed	300 MHz
Supplier Device Package	512-FBGA (25x25)
Voltage - Supply (Vcc/Vdd) [Max]	5.5 V
Voltage - Supply (Vcc/Vdd) [Min]	3 V

SPC5777 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Program Memory Size	Speed	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Oscillator Type	Core Processor	RAM Size	Mounting Type	Connectivity	Data Converters	Program Memory Type	Core Size	Package / Case	Qualification	Grade
Freescale Semiconductor - NXP SPC5777CCK3MMO3R	-40 °C	125 °C	516-MAPBGA (27x27)	8 MB	264 MHz	5.5 V	3 V	Internal	e200z7	512 K	Surface Mount	CANbus EBI/EMI Ethernet FlexCANbus LINbus SCI SPI	A/D 16b Sigma-Delta eQADC	FLASH	32-Bit Tri-Core
Freescale Semiconductor - NXP SPC5777CAK3MMO3	-40 °C	125 °C	516-MAPBGA (27x27)	8 MB	264 MHz	5.5 V	3 V	Internal	e200z7	512 K	Surface Mount	EBI/EMI Ethernet FlexCANbus LINbus SCI SPI	A/D 16b Sigma-Delta eQADC	FLASH	32-Bit Tri-Core
Freescale Semiconductor - NXP SPC5777CCK3MME3R	-40 °C	125 °C	416-MAPBGA (27x27)	8 MB	264 MHz	5.5 V	3 V	Internal	e200z7	512 K	Surface Mount	CANbus EBI/EMI Ethernet FlexCANbus LINbus SCI SPI	A/D 16b Sigma-Delta eQADC	FLASH	32-Bit Tri-Core	416-BGA
Freescale Semiconductor - NXP SPC5777CSK3MME4	-40 °C	125 °C	416-MAPBGA (27x27)	8 MB	300 MHz	5.5 V	3 V	External Internal	e200z7	512 K	Surface Mount	CANbus EBI/EMI Ethernet PSI5 SENT SPI	A/D 10x16b Sigma-Delta eQADC	FLASH	32-Bit Tri-Core	416-BGA	AEC-Q100	Automotive
Freescale Semiconductor - NXP SPC5777CDK3MME4	-40 °C	125 °C	416-MAPBGA (27x27)	8 MB	264 MHz	5.5 V	3 V	Internal	e200z7	512 K	Surface Mount	CANbus EBI/EMI Ethernet FlexCANbus LINbus SCI SPI	A/D 16b Sigma-Delta eQADC	FLASH	32-Bit Tri-Core	416-BGA
Freescale Semiconductor - NXP SPC5777CSK3MME3R	-40 °C	125 °C	416-MAPBGA (27x27)	8 MB	264 MHz	5.5 V	3 V	Internal	e200z7	512 K	Surface Mount	CANbus EBI/EMI Ethernet FlexCANbus LINbus SCI SPI	A/D 16b Sigma-Delta eQADC	FLASH	32-Bit Tri-Core	416-BGA
Freescale Semiconductor - NXP SPC5777CK3MME3	-40 °C	125 °C	416-MAPBGA (27x27)	8 MB	264 MHz	5.5 V	3 V	Internal	e200z7	512 K	Surface Mount	CANbus EBI/EMI Ethernet FlexCANbus LINbus SCI SPI	A/D 16b Sigma-Delta eQADC	FLASH	32-Bit Tri-Core	416-BGA
Freescale Semiconductor - NXP SPC5777MK0MVA8	-40 °C	125 °C	512-FBGA (25x25)	8.64 MB	300 MHz	5.5 V	3 V	Internal	e200z7	404 K	Surface Mount	CANbus EBI/EMI Ethernet FlexRay I2C LINbus PSI SPI UART/USART	12b SAR 16b Sigma-Delta	FLASH	32-Bit Tri-Core	512-FBGA
Freescale Semiconductor - NXP SPC5777CK2MME3R	-40 °C	125 °C	416-MAPBGA (27x27)	8 MB	264 MHz	5.5 V	3 V	Internal	e200z7	512 K	Surface Mount	EBI/EMI Ethernet FlexCANbus LINbus SCI SPI	A/D 16b Sigma-Delta eQADC	FLASH	32-Bit Tri-Core	416-BGA
Freescale Semiconductor - NXP SPC5777CDK3MME3R	-40 °C	125 °C	416-MAPBGA (27x27)	8 MB	264 MHz	5.5 V	3 V	Internal	e200z7	512 K	Surface Mount	CANbus EBI/EMI Ethernet FlexCANbus LINbus SCI SPI	A/D 16b Sigma-Delta eQADC	FLASH	32-Bit Tri-Core	416-BGA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 47.49
		10	$ 46.74

Description

General part information

SPC5777 Series

e200z7 MPC57xx Microcontroller IC 32-Bit Tri-Core 300MHz 8.64MB (8M x 8) FLASH 512-FBGA (25x25)

Documents

Technical documentation and resources
