101525HA

Active

LAPP

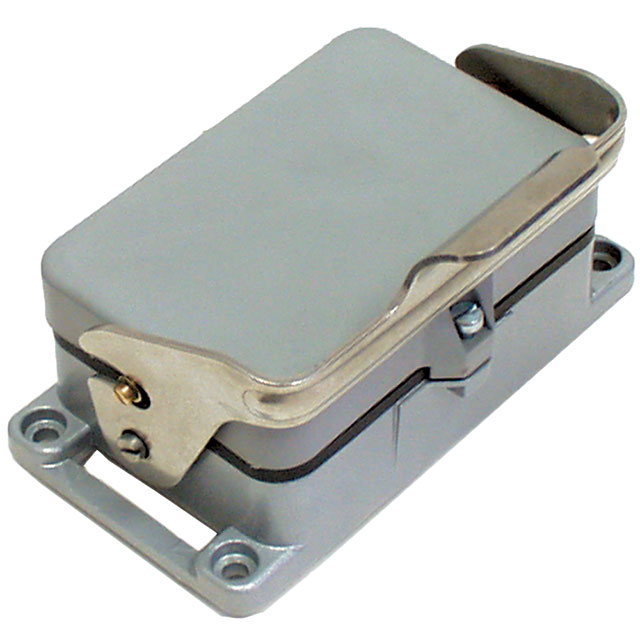

CONN BASE HA64 PNL MNT DL W/DC

Search across all available documentation for this part.

Active

LAPP

CONN BASE HA64 PNL MNT DL W/DC

Technical Specifications

Parameters and characteristics for this part

Specification	101525HA

Connector Type	Base - Panel Mount
Features	Cover
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Aluminum Alloy
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	HB64
Size / Dimension [x]	6.496 in
Size / Dimension [x]	165 mm
Size / Dimension [y]	3.543 in
Size / Dimension [y]	90 mm
Size / Dimension [z]	39.5 mm
Size / Dimension [z]	1.555 in
Style	Bottom Entry

Part	Housing Color	Size	Style	Lock Location	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Operating Temperature [Max]	Operating Temperature [Min]	Housing Finish	Ingress Protection	Features	Connector Type	Housing Material
LAPP 101525HA	Gray	HB64	Bottom Entry	Locking Clip (1) on Base Bottom	3.543 in	6.496 in	90 mm	165 mm	39.5 mm	1.555 in	125 °C	-40 °C	Powder Coated	IP65 - Dust Tight Water Resistant	Cover	Base - Panel Mount	Aluminum Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Base - Panel Mount Connector Bottom Entry HB64 IP65 - Dust Tight, Water Resistant
