1777060

Active

Phoenix Contact

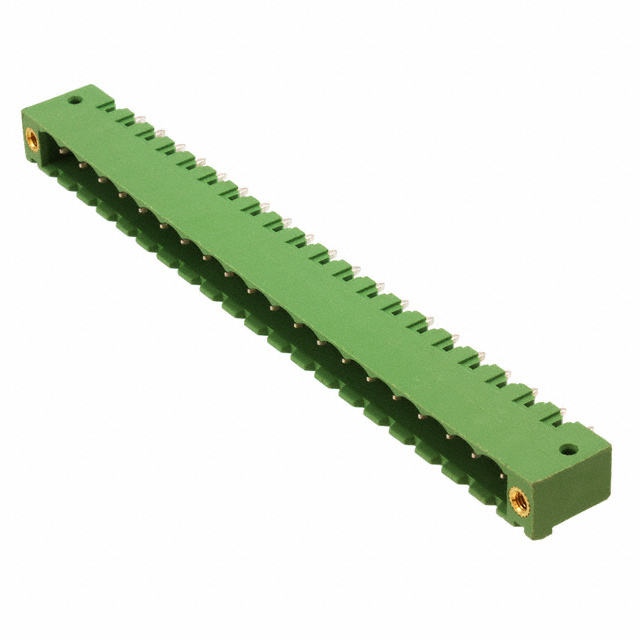

PLUGGABLE TERMINAL BLOCKS 20 POS 5MM PITCH THROUGH HOLE HEADER

Search across all available documentation for this part.

Active

Phoenix Contact

PLUGGABLE TERMINAL BLOCKS 20 POS 5MM PITCH THROUGH HOLE HEADER

Technical Specifications

Parameters and characteristics for this part

Specification	1777060

Color	Green
Contact Mating Finish	Tin
Contact Tail Length	0.154 "
Contact Tail Length	3.9 mm
Current - IEC	12 A
Current - UL	12 A
Features	Mating and Mounting Flange
Header Orientation	Vertical
Housing Material	Polybutylene Terephthalate (PBT)
Insulation Height	0.472 in
Insulation Height	12 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	1
Number of Positions	20
Pitch [x]	5 mm
Pitch [x]	0.197 in
Positions Per Level	20
Termination Style	Solder
Type	Header, Male Pins, Shrouded (4 Side)
Voltage - IEC	400 V
Voltage - UL	300 V

Pluggable Terminal Blocks 20 Pos 5mm pitch Through Hole Header

Part	Voltage - IEC	Type	Number of Levels	Color	Termination Style	Voltage - UL	Features	Number of Positions	Pitch [x]	Pitch [x]	Current - IEC	Material Flammability Rating	Current - UL	Contact Mating Finish	Mounting Type	Housing Material	Header Orientation	Contact Tail Length	Contact Tail Length	Positions Per Level	Insulation Height	Insulation Height
Phoenix Contact 1777060	400 V	Header Male Pins Shrouded (4 Side)	1	Green	Solder	300 V	Mating and Mounting Flange	20	5 mm	0.197 in	12 A	UL94 V-0	12 A	Tin	Through Hole	Polybutylene Terephthalate (PBT)	Vertical	0.154 "	3.9 mm	20	0.472 in	12 mm
Phoenix Contact 1808641	400 V	Header Male Pins Shrouded (4 Side)	1	Green	Solder	300 V	Ejectors	20	5.08 mm	0.2 in	12 A	UL94 V-0	12 A	Tin	Through Hole	Polybutylene Terephthalate (PBT)	Vertical	0.154 "	3.9 mm	20	0.472 in	12 mm
Phoenix Contact 1756951	250 V	Header Male Pins Shrouded (4 Side)	1	Green	Solder		Mating and Mounting Flange	20	5.08 mm	0.2 in	12 A			Tin	Through Hole		Vertical	0.154 "	3.9 mm	20	0.472 in	12 mm
Phoenix Contact 1924596	400 V	Header Male Pins Shrouded (4 Side)	1	Green	Solder	300 V	Mating and Mounting Flange	9	5.08 mm	0.2 in	16 A	UL94 V-0	16 A	Tin	Through Hole	Polyamide (PA) Nylon	Vertical	0.154 "	3.9 mm	9	0.472 in	12 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pluggable Terminal Blocks 20 Pos 5mm pitch Through Hole Header
