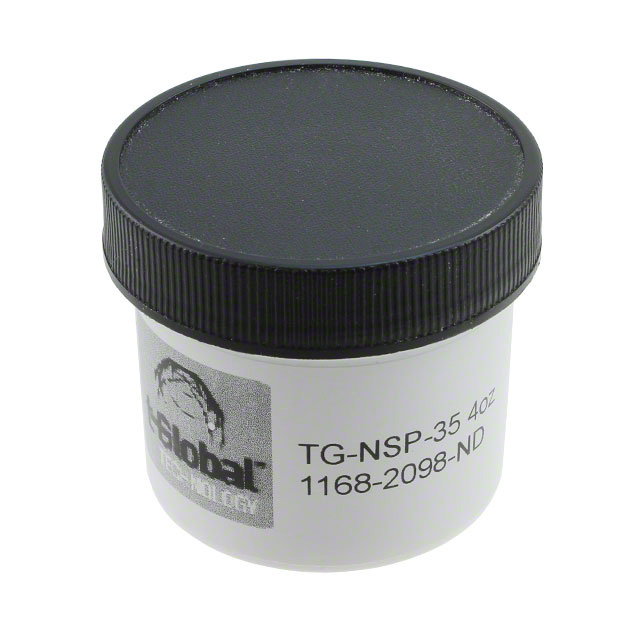

TG-NSP35-4OZ

Active

t-Global Technology

THERMAL NON-SILICONE PUTTY 4OZ

Search across all available documentation for this part.

Active

t-Global Technology

THERMAL NON-SILICONE PUTTY 4OZ

Technical Specifications

Parameters and characteristics for this part

Specification	TG-NSP35-4OZ

Color	Gray
Shelf Life	60 Months
Size / Dimension	4 oz Tube
Thermal Conductivity	3.5 W/m-K
Type	Non-Silicone Putty
Usable Temperature Range [Max]	200 °C
Usable Temperature Range [Max]	200 °C
Usable Temperature Range [Min]	-40 °F
Usable Temperature Range [Min]	-40 °C

Part	Usable Temperature Range [Max]	Usable Temperature Range [Max]	Usable Temperature Range [Min]	Usable Temperature Range [Min]	Type	Color	Size / Dimension	Thermal Conductivity	Shelf Life	Size / Dimension	Shelf Life Start	Material Flammability Rating
t-Global Technology TG-NSP35-4OZ	200 °C	200 °C	-40 °F	-40 °C	Non-Silicone Putty	Gray	4 oz Tube	3.5 W/m-K	60 Months
t-Global Technology TG-NSP35LV-1LB	200 °C	200 °C	-40 °F	-40 °C	Non-Silicone Putty	Gray		3.5 W/m-K	60 Months	1 lb
t-Global Technology TG-NSP35-1LB	200 °C	200 °C	-40 °F	-40 °C	Non-Silicone Putty	Gray		3.5 W/m-K	60 Months	1 lb
t-Global Technology TG-NSP35LV-30CC	200 °C	200 °C	-40 °F	-40 °C	Non-Silicone Putty	Gray	30cc Cartridge	3.5 W/m-K	60 Months
t-Global Technology TG-NSP35-30CC	200 °C	200 °C	-40 °F	-40 °C	Non-Silicone Putty	Gray	30cc Cartridge	3.5 W/m-K	60 Months		Date of Manufacture	UL94 V-0
t-Global Technology TG-NSP35LV-4OZ	200 °C	200 °C	-40 °F	-40 °C	Non-Silicone Putty	Gray	4 oz Tube	3.5 W/m-K	60 Months
t-Global Technology TG-NSP35-20LB	200 °C	200 °C	-40 °F	-40 °C	Non-Silicone Putty	Gray		3.5 W/m-K	60 Months	20 lb
t-Global Technology TG-NSP35-5LB	200 °C	200 °C	-40 °F	-40 °C	Non-Silicone Putty	Gray	5 lb Can	3.5 W/m-K	60 Months

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Thermal Non-Silicone Putty 4 oz Tube
