0191210005

Active

Molex

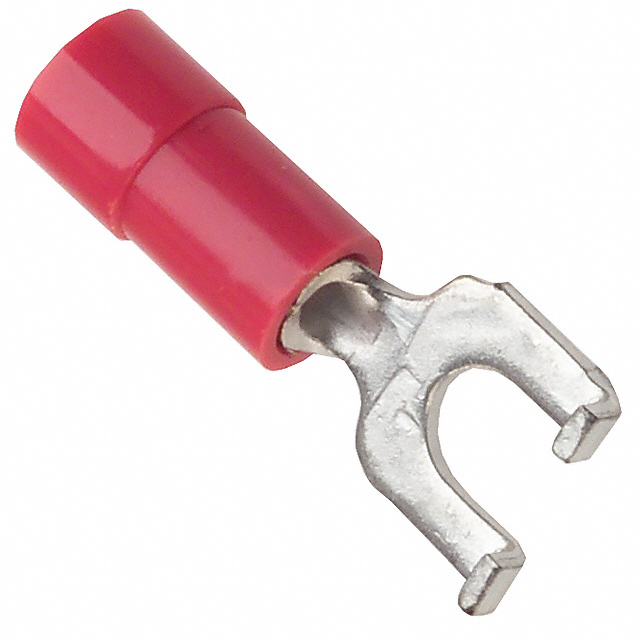

CONN SPADE TERM 18-22AWG #6 RED

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 0190440069 Drawing/Datasheet

0191210005

Active

Molex

CONN SPADE TERM 18-22AWG #6 RED

Deep-Dive with AI

DocumentsDatasheet 0190440069 Drawing/Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0191210005

Color	Red
Contact Finish	Electro-Tin
Contact Material	Copper
Insulation	Insulated
Insulation Diameter	3.68 mm
Insulation Diameter [diameter]	0.145 "
Length - Overall	19.84 mm
Length - Overall	0.781 in
Length - Ring Center to Termination	5.26 mm
Length - Ring Center to Termination [x]	0.207 in
Material - Insulation	Poly-Vinyl Chloride (PVC)
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	6 Stud
Terminal Type	Flanged
Termination	Crimp
Tongue Inside Opening [x]	3.71 mm
Tongue Inside Opening [x]	0.146 in
Width - Outer Edges [x]	0.301 in
Width - Outer Edges [x]	7.65 mm
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	17.5 AWG

019121 Series

Part	Terminal Type	Length - Overall [x]	Length - Overall [x]	Width - Outer Edges [x]	Width - Outer Edges [x]	Mounting Type	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Termination	Material - Insulation	Contact Material	Stud/Tab Size	Contact Finish	Length - Ring Center to Termination	Length - Ring Center to Termination	Color	Tongue Inside Opening [x]	Tongue Inside Opening [x]	Insulation	Wire Gauge [Max]	Wire Gauge [Min]	Length - Overall	Length - Overall	Stud/Tab Size	Insulation Diameter	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Length - Termination	Length - Termination	Width - Outer Edges	Width - Outer Edges	Width - Outer Edges [y]	Width - Outer Edges [y]	Insulation Diameter
Molex 0191210029	Flanged	0.795 in	20.19 mm	0.301 in	7.65 mm	Free Hanging (In-Line)	0.175 in	4.45 mm	Crimp	Poly-Vinyl Chloride (PVC)	Copper	8 Stud	Electro-Tin	0.209 in	5.31 mm	Blue	0.173 in	4.39 mm	Insulated
Molex 0191210005	Flanged			0.301 in	7.65 mm	Free Hanging (In-Line)	0.145 "		Crimp	Poly-Vinyl Chloride (PVC)	Copper		Electro-Tin		5.26 mm	Red	0.146 in	3.71 mm	Insulated	22 AWG	17.5 AWG	19.84 mm	0.781 in	6 Stud	3.68 mm	0.207 in
Molex 0191210026	Flanged	0.795 in	20.19 mm	0.301 in	7.65 mm	Free Hanging (In-Line)	0.175 in	4.45 mm	Crimp	Poly-Vinyl Chloride (PVC)	Copper		Electro-Tin	0.209 in	5.31 mm	Blue	0.146 in	3.71 mm	Insulated					6 Stud
Molex 0191210057	Flanged	1.01 in	25.65 mm			Free Hanging (In-Line)	0.245 "	6.22 mm	Crimp	Poly-Vinyl Chloride (PVC)	Copper		Electro-Tin			Yellow	0.209 in	5.31 mm	Insulated	12 AWG	10 AWG			10 Stud		0.27 in	6.86 mm	13.97 mm	0.55 in	0.385 in	9.78 mm
Molex 0191210049	Flanged	1.075 in	27.31 mm			Free Hanging (In-Line)			Crimp	Poly-Vinyl Chloride (PVC)	Copper		Electro-Tin			Yellow	0.198 in	5.03 mm	Insulated	12 AWG	10 AWG			10 Stud	6.35 mm	0.32 in	8.13 mm	13.97 mm	0.55 in			8.13 mm	0.32 in	0.25 "
Molex 0191210050	Flanged	1.075 in	27.31 mm			Free Hanging (In-Line)			Crimp	Poly-Vinyl Chloride (PVC)	Copper		Electro-Tin			Yellow	0.198 in	5.03 mm	Insulated	12 AWG	10 AWG			10 Stud	6.35 mm	0.32 in	8.13 mm	13.97 mm	0.55 in			8.13 mm	0.32 in	0.25 "
Molex 0191210031	Flanged	0.795 in	20.19 mm	0.301 in	7.65 mm	Free Hanging (In-Line)	0.175 in	4.45 mm	Crimp	Poly-Vinyl Chloride (PVC)	Copper		Electro-Tin	0.209 in	5.31 mm	Blue	0.198 in	5.03 mm	Insulated					10 Stud
Molex 0191210009	Flanged			0.301 in	7.65 mm	Free Hanging (In-Line)	0.145 "		Crimp	Poly-Vinyl Chloride (PVC)	Copper		Electro-Tin		5.26 mm	Red	0.198 in	5.03 mm	Insulated	22 AWG	17.5 AWG	19.84 mm	0.781 in	10 Stud	3.68 mm	0.207 in
Molex 0191210051	Flanged	1.01 in	25.65 mm			Free Hanging (In-Line)	0.245 "	6.22 mm	Crimp	Poly-Vinyl Chloride (PVC)	Copper		Electro-Tin			Yellow	0.146 in	3.71 mm	Insulated	12 AWG	10 AWG			6 Stud		0.27 in	6.86 mm	13.97 mm	0.55 in			8.76 mm	0.345 in
Molex 0191210008	Flanged			0.301 in	7.65 mm	Free Hanging (In-Line)	0.145 "		Crimp	Poly-Vinyl Chloride (PVC)	Copper	8 Stud	Electro-Tin		5.26 mm	Red	0.173 in	4.39 mm	Insulated	22 AWG	17.5 AWG	19.84 mm	0.781 in		3.68 mm	0.207 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.30
		10	$ 0.24
		100	$ 0.18
		1000	$ 0.14

Description

General part information

019121 Series

Red 6 Stud Spade Terminal Connector Crimp 18-22 AWG
