DF3E-8P-2V(21)

Active

Hirose Electric USA, Inc.

CONN HEADER SMD 8POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

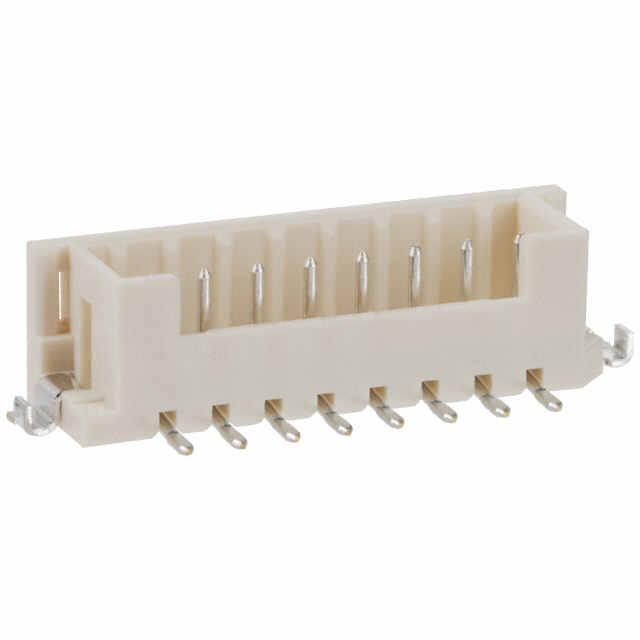

DF3E-8P-2V(21)

Active

Hirose Electric USA, Inc.

CONN HEADER SMD 8POS 2MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF3E-8P-2V(21)

Connector Type	Header
Contact Finish - Post	Tin
Contact Material	Brass
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Push-Pull
Features	Solder Retention, Board Guide
Insulation Color	Beige
Insulation Height	5.9 mm
Insulation Height	0.232 in
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	250 VAC

DF3E Series

Part	Features	Insulation Color	Contact Shape	Contact Type	Number of Rows	Shrouding	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Connector Type	Current Rating (Amps)	Contact Material	Termination	Mounting Type	Insulation Material	Pitch - Mating [x]	Pitch - Mating [x]	Contact Finish - Post	Insulation Height	Insulation Height	Voltage Rating	Style	Number of Positions	Fastening Type	Number of Positions Loaded	Mated Stacking Heights	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Mating
Hirose Electric USA, Inc. DF3E-7P-2H(21)	Board Guide Solder Retention	Beige	Circular	Male Pin	1	Shrouded - 4 Wall	105 ░C	-55 °C	UL94 V-0	Header	Varies by Wire Gauge	Brass	Solder	Surface Mount Right Angle	Nylon Polyamide (PA)	0.079 in	2 mm	Tin	5.6 mm	0.22 in	250 VAC	Board to Board Cable	7	Push-Pull	All
Hirose Electric USA, Inc. DF3E-3P-2V(24)	Board Guide Solder Retention	Black	Circular	Male Pin	1	Shrouded - 4 Wall	105 ░C	-55 °C	UL94 V-0	Header	Varies by Wire Gauge	Brass	Solder	Surface Mount	Nylon Polyamide (PA)	0.079 in	2 mm	Tin	5.9 mm	0.232 in	250 VAC	Board to Board Cable		Push-Pull	All	8.4 mm	1 µm	39.4 µin	1 çm	39.4 çin
Hirose Electric USA, Inc. DF3E-4P-2V(24)	Board Guide Solder Retention	Black	Circular	Male Pin	1	Shrouded - 4 Wall	105 ░C	-55 °C	UL94 V-0	Header	Varies by Wire Gauge	Brass	Solder	Surface Mount	Nylon Polyamide (PA)	0.079 in	2 mm	Tin	5.9 mm	0.232 in	250 VAC	Board to Board Cable	4	Push-Pull	All	8.4 mm	1 µm	39.4 µin	1 çm	39.4 çin
Hirose Electric USA, Inc. DF3E-6P-2H(20)	Board Guide Solder Retention	Beige	Circular	Male Pin	1	Shrouded - 4 Wall	105 ░C	-55 °C	UL94 V-0	Header	Varies by Wire Gauge	Brass	Solder	Surface Mount Right Angle	Nylon Polyamide (PA)	0.079 in	2 mm	Tin	5.6 mm	0.22 in	250 VAC	Board to Board Cable	6	Push-Pull	All
Hirose Electric USA, Inc. DF3E-2P-2H(54)	Board Guide Solder Retention	Natural	Circular	Male Pin	1	Shrouded - 4 Wall	105 ░C	-55 °C	UL94 V-0	Header	Varies by Wire Gauge	Brass	Solder	Surface Mount Right Angle	Nylon Polyamide (PA)	0.079 in	2 mm	Gold	5.6 mm	0.22 in	250 VAC	Board to Board Cable	2	Push-Pull	All		0.203 Ám	8 Áin	0.203 µm	8 µin	Gold
Hirose Electric USA, Inc. DF3E-8P-2V(21)	Board Guide Solder Retention	Beige	Circular	Male Pin	1	Shrouded - 4 Wall	105 ░C	-55 °C	UL94 V-0	Header	Varies by Wire Gauge	Brass	Solder	Surface Mount	Nylon Polyamide (PA)	0.079 in	2 mm	Tin	5.9 mm	0.232 in	250 VAC	Board to Board Cable	8	Push-Pull	All
Hirose Electric USA, Inc. DF3E-4P-2V(21)	Board Guide Solder Retention	Beige	Circular	Male Pin	1	Shrouded - 4 Wall	105 ░C	-55 °C	UL94 V-0	Header	Varies by Wire Gauge	Brass	Solder	Surface Mount	Nylon Polyamide (PA)	0.079 in	2 mm	Tin	5.9 mm	0.232 in	250 VAC	Board to Board Cable	4	Push-Pull	All
Hirose Electric USA, Inc. DF3E-2P-2V(50)	Board Guide Solder Retention	Beige	Circular	Male Pin	1	Shrouded - 4 Wall	105 ░C	-55 °C	UL94 V-0	Header	Varies by Wire Gauge	Brass	Solder	Surface Mount	Nylon Polyamide (PA)	0.079 in	2 mm		5.9 mm	0.232 in	250 VAC	Board to Board Cable	2	Push-Pull	All						Gold
Hirose Electric USA, Inc. DF3E-10P-2V(21)	Board Guide Solder Retention	Beige	Circular	Male Pin	1	Shrouded - 4 Wall	105 ░C	-55 °C	UL94 V-0	Header	Varies by Wire Gauge	Brass	Solder	Surface Mount	Nylon Polyamide (PA)	0.079 in	2 mm	Tin	5.9 mm	0.232 in	250 VAC	Board to Board Cable	10	Push-Pull	All
Hirose Electric USA, Inc. DF3E-10P-2V(51)	Board Guide Solder Retention	Beige	Circular	Male Pin	1	Shrouded - 4 Wall	105 ░C	-55 °C	UL94 V-0	Header	Varies by Wire Gauge	Brass	Solder	Surface Mount	Nylon Polyamide (PA)	0.079 in	2 mm		5.9 mm	0.232 in	250 VAC	Board to Board Cable	10	Push-Pull	All						Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.60
		10	$ 0.50
		25	$ 0.48
		50	$ 0.47
		100	$ 0.45
		250	$ 0.41
		500	$ 0.37
	Digi-Reel®	1	$ 0.60
		10	$ 0.50
		25	$ 0.48
		50	$ 0.47
		100	$ 0.45
		250	$ 0.41
		500	$ 0.37
	Tape & Reel (TR)	1000	$ 0.36

Description

General part information

DF3E Series

Connector Header Surface Mount 8 position 0.079" (2.00mm)

Documents

Technical documentation and resources
