TG-A1780-15-15-1.5

Active

t-Global Technology

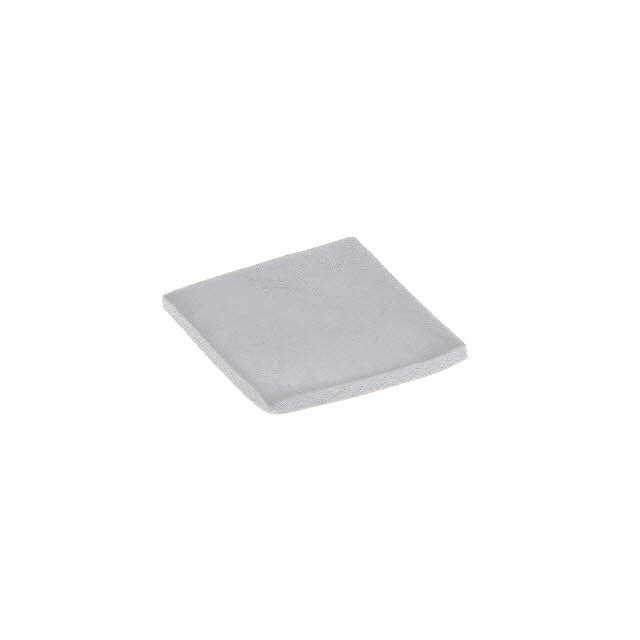

THERM PAD 15MMX15MM GRAY

Search across all available documentation for this part.

Active

t-Global Technology

THERM PAD 15MMX15MM GRAY

Technical Specifications

Parameters and characteristics for this part

Part	Outline [x]	Outline [y]	Type	Thermal Conductivity	Thickness	Thickness	Shelf Life	Material	Color	Shape	Usage
t-Global Technology TG-A1780-20-20-1.5	20 mm	20 mm	Gap Filler Pad Sheet	17.8 W/m-K	1.5 mm	0.0591 "	24 Months	Silicone	Gray	Square	Multi
t-Global Technology TG-A1780-40-40-0.5	40 mm	40 mm	Gap Filler Pad Sheet	17.8 W/m-K	0.5 mm	0.0197 in	24 Months	Silicone	Gray	Square	Multi
t-Global Technology TG-A1780-150-150-0.5	150 mm	150 mm	Gap Filler Pad Sheet	17.8 W/m-K	0.5 mm	0.0197 in	24 Months	Silicone	Gray	Square	Multi
t-Global Technology TG-A1780-15-15-1.5	15 mm	15 mm	Gap Filler Pad Sheet	17.8 W/m-K	1.5 mm	0.0591 "	24 Months	Silicone	Gray	Square	Multi
t-Global Technology TG-A1780-5-5-0.5	5 mm	5 mm	Gap Filler Pad Sheet	17.8 W/m-K	0.5 mm	0.0197 in	24 Months	Silicone	Gray	Square	Multi
t-Global Technology TG-A1780-30-30-2.0	30 mm	30 mm	Gap Filler Pad Sheet	17.8 W/m-K	2 mm	0.079 in	24 Months	Silicone	Gray	Square	Multi
t-Global Technology TG-A1780-30-30-1.0	30 mm	30 mm	Gap Filler Pad Sheet	17.8 W/m-K	1 mm	0.0394 in	24 Months	Silicone	Gray	Square	Multi
t-Global Technology TG-A1780-150-150-2.0	150 mm	150 mm	Gap Filler Pad Sheet	17.8 W/m-K	2 mm	0.079 in	24 Months	Silicone	Gray	Square	Multi
t-Global Technology TG-A1780-20-20-1.0	20 mm	20 mm	Gap Filler Pad Sheet	17.8 W/m-K	1 mm	0.0394 in	24 Months	Silicone	Gray	Square	Multi
t-Global Technology TG-A1780-5-5-2.0	5 mm	5 mm	Gap Filler Pad Sheet	17.8 W/m-K	2 mm	0.079 in	24 Months	Silicone	Gray	Square	Multi

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
