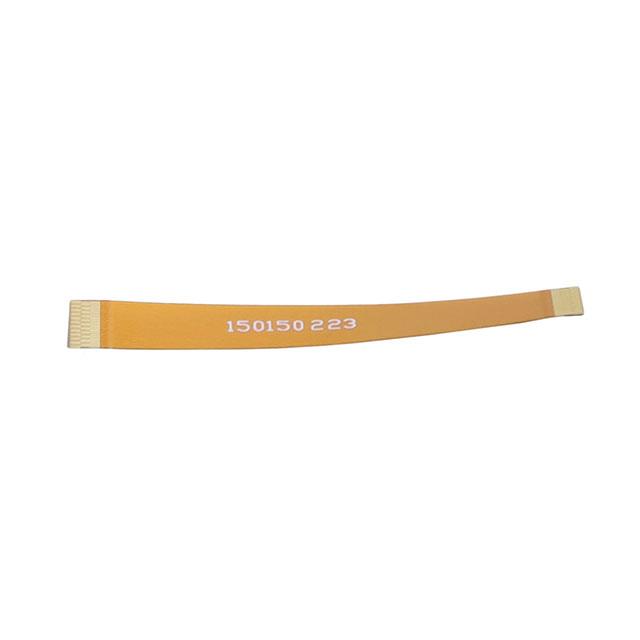

0150150223

Active

Molex

CABLE FFC/FPC 23POS 0.3MM 2"

Search across all available documentation for this part.

Active

Molex

CABLE FFC/FPC 23POS 0.3MM 2"

Technical Specifications

Parameters and characteristics for this part

Specification	0150150223

Cable Type	FPC, FFC
Length	50.8 mm
Length	2 in
Length - Exposed Ends [x]	3 mm
Length - Exposed Ends [x]	0.118 in
Number of Conductors	23
Pitch [x]	0.012 in
Pitch [x]	0.3 mm
Termination Style	Backers on Both Sides, Top on Both Sides

Part	Length	Length	Cable Type	Length - Exposed Ends [x]	Length - Exposed Ends [x]	Termination Style	Number of Conductors	Pitch [x]	Pitch [x]	Length [x]
Molex 0150150845	8 in	203.2 mm	FFC FPC	3 mm	0.118 in	Backers on Both Sides Top on Both Sides	45	0.012 in	0.3 mm
Molex 0150150433	4 in	101.6 mm	FFC FPC	3 mm	0.118 in	Backers on Both Sides Top on Both Sides	33	0.012 in	0.3 mm
Molex 0150150429	4 in	101.6 mm	FFC FPC	3 mm	0.118 in	Backers on Both Sides Top on Both Sides	29	0.012 in	0.3 mm
Molex 0150150445	4 in	101.6 mm	FFC FPC	3 mm	0.118 in	Backers on Both Sides Top on Both Sides	45	0.012 in	0.3 mm
Molex 0150151045		254 mm	FFC FPC	3 mm	0.118 in	Backers on Both Sides Top on Both Sides	45	0.012 in	0.3 mm	10 in
Molex 0150150239	2 in	50.8 mm	FFC FPC	3 mm	0.118 in	Backers on Both Sides Top on Both Sides	39	0.012 in	0.3 mm
Molex 0150150439	4 in	101.6 mm	FFC FPC	3 mm	0.118 in	Backers on Both Sides Top on Both Sides	39	0.012 in	0.3 mm
Molex 0150150223	2 in	50.8 mm	FFC FPC	3 mm	0.118 in	Backers on Both Sides Top on Both Sides	23	0.012 in	0.3 mm
Molex 0150150633	6 in	152.4 mm	FFC FPC	3 mm	0.118 in	Backers on Both Sides Top on Both Sides	33	0.012 in	0.3 mm
Molex 0150150423	4 in	101.6 mm	FFC FPC	3 mm	0.118 in	Backers on Both Sides Top on Both Sides	23	0.012 in	0.3 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

23 Position FFC, FPC Cable 0.012" (0.30mm) 2.000" (50.80mm)

Technical documentation and resources

No documents available
